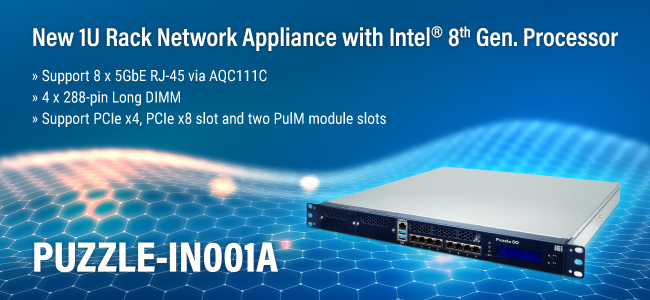

| ![product image](https://www.ieiworld.com.cn/_upload/news/images/New_Network_Appliance_Platform-PUZZLE-IN001A_prod.png) | PUZZLE-IN001A | ✔ | Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor | ✔ | Support 8 x 5GbE RJ-45 via AQC111C | ✔ | 4 x 288-pin Long DIMM, DDR4 2100MHz ECC & non ECC, up to 64GB | ✔ | 1 x RJ-45 Console, 2 x USB 3.2 Gen 1 (5Gb/s), LCM | ✔ | 2 x 2.5” SATA drive bay, 1 x M.2 B-Key (SATA, USB 3.2 Gen 1 (5Gb/s)), 1 x PCIe mini | ✔ | Support PCIe x4, PCIe x8 slot and two PulM module slots | ✔ | Redundant PSUs | |
|
|
| | Model Name | PUZZLE-IN001A-XE | PUZZLE-IN001A-i3T |
---|
Platform | Form Factor | 1U | CPU | Intel® Xeon® E-2136 Processor, 6C/12T, up to 4.50 GHz | 8th Generation Intel® Core™ i3-8100T Processor, 4C/4T, up to 3.10 GHz | Chipset | Intel® C246 | Memory | Memory Technology | 4 x DDR4 2400MHz ECC/Non-ECC UDIMM | Memory Capacity | Up to 64GB | Memory Socket | 4 x 288-pin DIMM | Network and Security | Network Acceleration and Security Function | Intel® AES New Instructions Intel® Software Guard Extensions (Intel® SGX) Intel® Memory Protection Extensions (Intel® MPX) Intel® Trusted Execution Technology | TPM | 1 x TPM 2.0 Pin header | Networking | Ethernet IC | 8 x 5GbE NIC: AQC111C | Ethernet Port | 8 x 5 GbE RJ-45 LAN ports | Network Module Slot | 2 x PulM module slots | Expansion slot | PCIe slot | 1 x PCIe x4 slot, 1 x PCIe x8 slot | PCIe mini Card Slot | 1 x PCIe mini card (PCIe & SATA, USB 2.0) | M.2 | 1 x M.2 B Key (2260/2280) (SATA and USB 3.2 Gen 1) Support SATA SSD and 4G LTE module | Storage | Storage | 2 x 2.5" SATA HDD/SSD bay | eMMC | N/A | SD Card | N/A | External I/O | USB | 2 x USB 3.2 Gen 1 (5Gb/s) | Console | 1 x RJ-45 | Internal I/O | HDMI | 1 x HDMI connecter (optional) | USB | 4 x USB 2.0 (pin header) | Power and Mechanical | Power Switch | 1 x Power Switch | Reset Button | 1 x Reset Button | Power Input | 100 V ~ 240 V | Type/Watt | Redundant Power 300W | 90V ~ 264V AC | Processor Cooling | 1 x Passive CPU Heatsink | System Cooling | 4 x Cooling Fans with Smart Fan | Antenna Port | 1 x Antenna port | Physical and Environmental | Storage Temperature | 0 ~ 40°C | Operating Temperature | 0 ~ 40°C (32 ~ 104°F) | Operating Humidity | 5% ~ 90% non-condensing | Dimensions (W x H x D) (mm) | 430 x 426 x 44.2 | Weight | 7kg | OS and Certifications | Certification | CE / FCC | Operating System | Linux Ubuntu 16.04.04 | Indicators | LCM | LCM, 2 buttons | LED | 1 x Power LED, 1 x Storage LED, 1 x Alert LED |
|
| 产品名称 | 描述 |
---|
PUZZLE-IN001A-XE/R-R10 | 1U Rackmount Network Appliance with Intel® Gen8 Xeon® E-2136 processor, four DDR4 slots, and eight 5GbE, two PulM module slots, two PCIe expansion, Redundant Power, RoHS | PUZZLE-IN001A-i3T/R-R10 | 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, four DDR4 slots, and eight 5GbE, two PulM module slots, two PCIe expansion, Redundant Power, RoHS |
|
| | PUZZLE-IN001A-XE/16G/R | PUZZLE-IN001A-i3T/16G/R |
---|
Power cord | 1 | 1 | Heatsink | 1 | 1 | Rack mounting ears | 2 | 2 | SCREW for Rack mounting ears | 6 | 6 | USB to console cable | 1 | 1 | RS-232 to console cable | Option | Option | Slide rail | Option | Option |
| `
| Item | 产品名称 | 描述 |
---|
Slide rail | RAIL-B02 | New rail kit for new 1U & 2U NAS: TVS-471U, 1253U, etc | USB to console cable | 32013-004000-100-RS | ROUND CABLE; LAN CABLE; FTDI Console Cable; 2; 1800MM; (A)USB A TYPE 4P MALE+PCB:FTDI_FT232RL; (B)RJ-45 8P8C; RoHS | RS-232 to console cable | 32005-005100-100-RS | ROUND CABLE; RS-232/422/485; PUZZLE RS-232 Cable; 2; 500MM; 24AWG; (A) D-SUB 9P MALE+#4-40 Screw; (B)RJ-45 PLUG 8P8C; ONE PCS PKG; TC&C; RoHS |
| `
| PUZZLE-IN001A | ![Industrial_AI_system_Dimensions](https://www.ieiworld.com.cn/_upload/news/images/New_Network_Appliance_Platform-PUZZLE-IN001A_dim.png) |
|
