| Model | AFL3-W15C-ULT5 | AFL3-W19C-ULT5 | AFL3-W22C-ULT5 |
---|
LCD | Size | 15.6” | 18.5” | 21.5” | Resolution | 1366 x 768 (16:9) | 1366 x 768 (16:9) | 1920 x 1080 (16:9) | Brightness (cd/m²) | 300 | 250 | 250 | Contrast Ratio | 500:01:00 | 1000:01:00 | 1000:01:00 | Viewing Angle (H-V) | 170º/160º | 170º/160º | 170º/160º | Backlight MTBF (hrs) | 50000 | 30000 | 30000 | Touch | Touch Screen | PCAP with USB interface (anti-UV/AG coating) | Touch Controller | EXC3160 | Mainboard | CPU | Intel® Whiskey Lake-U quad-core processor | Memory | Two 260-pin 2400MHz dual-channel DDR4 SO-DIMMs supporting up to 32 GB | Ethernet | LAN1 & LAN2: Intel® I211; LAN3: Intel® I219 | Audio Codec | ALC269 | Storage | 1 x M.2 M-key 2242/60/80 PCIe 3.0 x4 (PCIe/SATA Signal) 1 x 2.5” SATA 3Gb/s HDD bay | I/O Ports & Switch | 2 x PoE GbE LAN (optioaI IEEE802.3af/at/bt) 1 x GbE LAN 4 x USB 3.2 Gen.2 1 x HDMI output 1 x RS-232/422/485 1 x RS-232 1 x 12V DC jack 1 x Power switch 1 x AT/ATX switch | E-Window expanasion | PCIe Mini slot (PCIe+USB) | Audio | AMP 2W + 2W | AMP 3W + 3W (internal speaker) | Camera / Microphone | 2-megapixel with low light function, digital microphone | Wireless & Bluetooth | IEEE 802.11 a/b/g/n/ac, Bluetooth V4.1 M.2 A+E key 2230 slot (PCIe/USB signal) | Physical | Construction Front Panel | PC + ABS Plastic | Mounting | Panel, Wall, Stand and Arm VESA 75mm x 75mm , 100mm x 100mm | Color | Black C | Dimensions (W x H x D )(mm) | 396 x 250 x 64 | 470 x 290 x 70 | 528 x 336 x 68 | Cut-out Dimensions (W x H) | 369 x 226 | 443 x 261 | 502 x 303 | Net/Gross Weight (kgs) | 4.5/6.5 | 7.3/10 | 8.27/11.27 | Environment | Operating Temperature (°C) (Ambient with air flow) | -20ºC ~ 50ºC (-4ºF ~ 122ºF ) | Storage Temperature (°C) | -20ºC ~ 60ºC (-4ºF ~ 140ºF ) | Humidity | 10% to 95% (non-condensing) | IP Level | IP 64 compliant front panel | Safety&EMC | CE / FCC class A | Termal Solution | Fanless | Power | Power Requirement | 12V, 8A PoE IEEE802.3af/at/bt (redundancy, power load-sharing) | ErP | ErP 2009/125/EC |
|

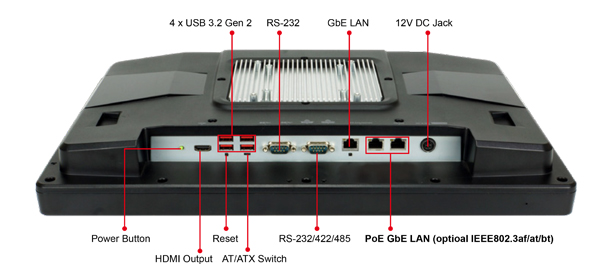

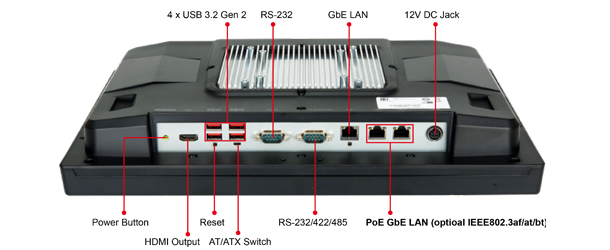

| AFL3-W15C-ULT5 | ![interface](http://www.iei.com.cn/UploadPic2/2020-5/2020514104014544.jpg) | AFL3-W19C-ULT5 | ![interface](http://www.iei.com.cn/UploadPic2/2020-5/2020514104014166.jpg) | AFL3-W22C-ULT5 | ![interface](http://www.iei.com.cn/UploadPic2/2020-5/2020514104014786.jpg) |
|

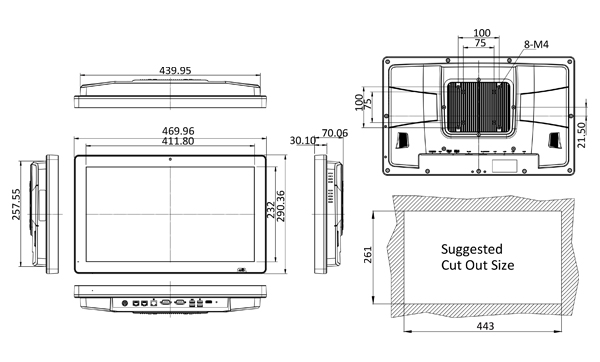

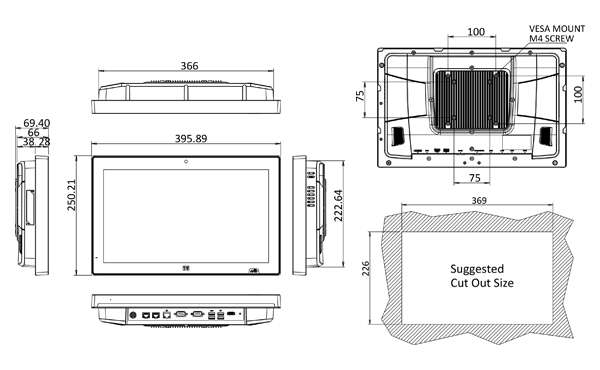

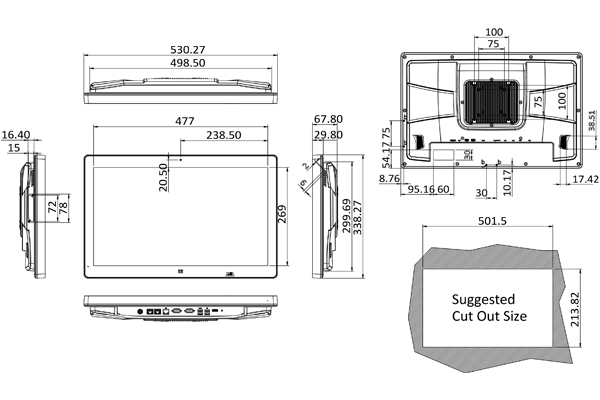

| AFL3-W15C-ULT5 | ![Dimensions](http://www.iei.com.cn/UploadPic2/2020-5/2020514104014907.jpg) | AFL3-W19C-ULT5 | ![Dimensions](http://www.iei.com.cn/UploadPic2/2020-5/2020514104014189.jpg) | AFL3-W22C-ULT5 | ![Dimensions](http://www.iei.com.cn/UploadPic2/2020-5/2020514104014987.jpg) |
| 产品名称 | 描述 |
---|
AFL3-W15C-ULT5-i5/P/PC/4G-R10 | Wide 15.6” 300cd/m² 1366x768 Panel PC with 8th generation 14nm Intel® Whiskey Lake Core™ i5-8365UE (15W) on-board processor (ULT), PoE option, 802.11a/b/g/n/ac Wi-Fi module, PCAP touch, 2M camera, microphone, 1*4GB DDR4 RAM, with AG, R10 | AFL3-W19C-ULT5-i5/P/PC/4G-R10 | Wide 18.5” 250cd/m² 1366x768 Panel PC with 8th generation 14nm Intel® Whiskey Lake Core™ i5-8365UE (15W) on-board processor (ULT), PoE option, 802.11a/b/g/n/ac Wi-Fi module, PCAP touch, 2M camera, microphone, 1*4GB DDR4 RAM, with AG, R10 | AFL3-W22C-ULT5-i5/P/PC/4G-R10 | Wide 21.5” 250cd/m² 1920x1080 Panel PC with 8th generation 14nm Intel® Whiskey Lake Core™ i5-8365UE (15W) on-board processor (ULT), PoE option, 802.11a/b/g/n/ac Wi-Fi module, PCAP touch, 2M camera, microphone, 1*4GB DDR4 RAM, with AG, R10 | GPOE-PD-AT01-R10 | PoE PD IEEE802.3af/at with PCIe Mini form factor, supports AFL3-W15C/W19C/W22C-ULT5, R10 | GPOE-PD-BT01-R10 | PoE PD IEEE802.3af/at/bt with PCIe Mini form factor, supports AFL3-W15C/W19C/W22C-ULT5, R10 |
|
| Item | AFL3-W15C-ULT5 | AFL3-W19C-ULT5 | AFL3-W22C-ULT5 |
---|
Panel Mounting Kit | AFL3PK-W15A-R10 | AFL3PK-W19C-R10 | AFL3PK-W19C-R10 | Wall Mounting Kit | AFLWK-19B | Rack Mounting Kit | AFL3RK-W15B-R10 | N/A | N/A | Arm | ARM-11-RS/ARM-31-RS | Stand | STAND-A21-R10/ STAND-210-R11/STAND-A19-RS/STAND-C19-R10 | Magnetic Card Reader | AFL3P-W10MSR-U-R10 | Barcode Scanner | AFL3-2D-R11 | RFID Reader (13.56 MHz Mifare Type For ATO assembly) | AFL3-MF-RFID-KIT02-R11 | AFL3-MF-RFID-KIT02-R11 | AFL3-MF-RFID-KIT02-R11 | *OS: Win 10 IOT Enterprise (64-bit) | AFL3-W15C-ULT5-W10E64-V-R10 |
|
| Item | 产品名称 | Q’ty | Remark |
---|
Round head machine screw | 44003-020041-RS | 2 | M2*4 round head machine screw | 44003-020041-RS | 4 | M2*4 round head machine screw | Pan head machine screw | 44403-040061-RS | 4 | M4*6 pan head machine screw | Fix holder | 46003-009500-RS | 2 | | Power cord | 32702-000400-200-RS | 1 | | Power adapter | 63040-010096-200-RS | 1 | Vin: 90~264VAC; 96W, Vout: 12VDC; Din 4Pin/lock | RJ-45 to DB-9 COM port transfer cable | 32005-004600-100-RS | 1 | 300mm, 26AWG, (A) D-SUB 9 male, (B) RJ-45 |
|
|
