![](http://www.iei.com.cn/UploadPic2/2020-5/202051395225714.jpg) | LGA 1151 Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported | ![](http://www.iei.com.cn/UploadPic2/2020-5/202051395225714.jpg) | 双通道DDR4 2133MHz | ![](http://www.iei.com.cn/UploadPic2/2020-5/202051395225714.jpg) | 支持VGA/HDMI/iDP双显示 | ![](http://www.iei.com.cn/UploadPic2/2020-5/202051395225714.jpg) | 支持USB 3.2 Gen 1(5Gb/s)和SATA 6Gb/s/s/ |
|
| IMBA-H112 | ![IEI_New_ATX_Motherboard_IMBA_H112_interface](https://www.ieiworld.com.cn/_upload/news/images/IEI_New_ATX_Motherboard_IMBA_H112_IO_01.png) | 支持多个扩展的PCIe和PCI插槽 | ![IEI_New_ATX_Motherboard_IMBA_H112_interface](https://www.ieiworld.com.cn/_upload/news/images/IEI_New_ATX_Motherboard_IMBA_H112_IO_02.png) |
|

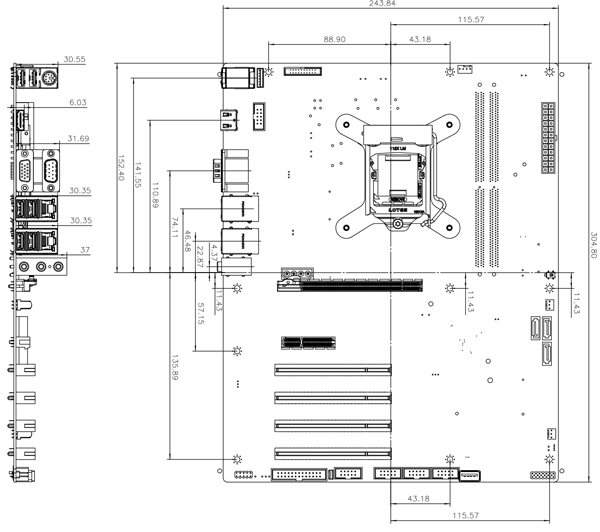

| IMBA-H112 | ![IEI_New_ATX_Motherboard_IMBA_H112_Dimensions](http://www.iei.com.cn/UploadPic2/2020-5/202051395227561.jpg) |
| 型号 | IMBA-H112 |
---|
CPU | LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor | 系统芯片 | Intel® H110 | 内存 | Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB | BIOS | AMI UEFI BIOS | 图形引擎 | Intel® HD Graphics Gen 9 Engines with Low power 16 execution unit, supports DX2015, OpenGL 5.X and OpenCL2.x, ES 2.0 | 显示输出 | Dual independent display 1 x VGA (up to 1920 x 1080@60Hz) 1 x HDMI 1.4 (up to 4096x2160@24Hz) 1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz) | 以太网 | LAN1: Intel® I219V PHY LAN2: Intel® I211 PCIe controller | 外部I/O接口 | 4 x USB 3.2 2 x USB 2.0 1 x RS-232 | 内部I/O接口 | 1 x KB/MS (1x6 pin) 1 x LPT (2x13 pin, P=2.54) 1 x USB 2.0 (type A) 2 x USB 2.0 (2x4 pin, P=2.54) 1 x RS-232/422/485 (2x5 pin, P=2.54) 3 x SATA 6Gb/s (support Hot plug) 4 x RS-232 (2x5 pin, P=2.54) | SMBus | 1 x SMBus (1x4 pin) | I²C | 1 x I²C (1x4 pin) | 音频 | Realtek ALC662 HD Audio Codec support 5.1 Channel (2 Audio Jack colay 3 Jack)(Line-out, Mic) | 前音频 | 2 x 5-pin pin header | 前面板 | 1 x Front Panel (2 x 7 pin, Power LED, HDD LED, Speaker, Power Button, Reset Button) | 局域网 LED | 2 x LAN LED (1x2 pin) | 扩展 | 1 x Full-size PCIe Mini card slot (support mSATA) 1 x PCIe x16 slot (Gen3) 1 x PCIe x4 4 x PCI slot | 看门狗 | Software Programmable support 1~255 sec. system reset | 风扇 | 1 x CPU smart fan (1x4 pin) 1 x System smart fan (1x4 pin) | 电源 | ATX/AT Power Supply | 电源功耗 | 3.3V@1.53A, 5V@2.95A, 12V@8.38A, 5VSB@3.2A (4.0 GHz Intel® Core™ i7-6700K CPU with two 8 GB 2133 MHz DDR4 memory) | 工作温度 | -20°C~60°C | 储存温度 | -20°C~70°C | 湿度 | 5% ~ 95%, non-condensing | 净重 | 1200g / NW: 700g | CE/FCC | compliant |
|
| 料号 | 描述 |
---|
IMBA-H112-R10 | ATX Motherboard supports 14nm LGA1151 6th/7th Generation Intel® Core™ i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays VGA and HDMI, Dual Intel® GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS | IMBA-H112-ECO-R10 | ATX Motherboard supports 14nm LGA1151 6th/7th Generation Intel® Core™ i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays VGA and HDMI, DuaI Intel® GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio, ECO packing and RoHS | 19800-000049-RS | LPT flat cable, 240mm, P=2.54 | 19800-000075-RS | PS/2 KB/MS cable with bracket, 220mm, P=2.0 | 19800-020100-100-RS | RS-232 cable, 230mm, P=2.54 | 32102-000100-200-RS | SATA power cable, MOLEX 5264-4P to SATA15P | 32801-000703-500-RS | SATA cable, 2, 500mm, 26AWG, 30V, SATA 7P female 180°+LOCK, one pcs pkg W/ label, 32000-062800-RS substitute, Wins Precision, RoHS | CF-115XC-R10 | LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W | CF-115XD-R10 | LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W | CF-115XE-R10 | High performance LGA1155/LGA1156 cooler kit, 95W | DP-DP-R10 | DisplayPort to DisplayPort converter board (for IEI iDP connector) | DP-DVI-R10 | DisplayPort to DVI-D converter board (for IEI iDP connector) | DP-HDMI-R10 | DisplayPort to HDMI converter board (for IEI iDP connector) | DP-LVDS-R10 | DisplayPort to 24-bit dual-channel LVDS converter board (for IEI iDP connector) | DP-VGA-R10 | DisplayPort to VGA converter board (for IEI iDP connector) | TPM-IN02-R20 | 20-pin Infineon TPM 2.0 module, software management tool, firmware v5.5 |
|
| 1 x IMBA-H112 single board computer | 2 x SATA cable | 1 x I/O shielding | 1 x QIG |
|
|
