HTB-100-HM170 医疗平板电脑,手术室应用的****智能解决方案



随着人口老龄化程度日益加深,医疗行业也进入了信息化运营时代。使用电子设备交付、存储和采集临床数据已成为一种趋势。为此,IEI开发出品质优异、性能可靠的医疗通信系统—HTB-100-HM170 医疗嵌入式系统。该系统通过了 EMC 测试,并符合 ISO13485、IEC 60601-1(V3.1)和 IEC 60601-1-2(V4.0)标准,性能卓越,具有多个扩展选项,可实现功能多样化,还可降低成本,消除人为错误,提高工作人员的效率,是智慧医疗的****选择。

HTB-100-HM170 配有防水顶盖,以防液体和清洗对设备造成损害,从而间接对患者产生不好的影响。该系统采用无风扇设计,以降低噪音。电缆盖板不仅能防止灰尘和液体进入 HTB-100-HM170,还有助于医务人员轻松地从 I/O 端口管理所有的电缆,更加方便地清洁设备。此外,HTB-100-HM170 具有灵活的扩展选项,可附加视频采集卡以进行医学影像检查;支持隔离 COM 端口,为患者和医务人员提供全面的防电涌保护,从而提高医疗环境中设备的安全性。

HTB-100-HM170 支持各种安装方法,如台式安装和壁挂式安装,所提供的柔性安装支架可以 180 度转换角度,方便在医疗环境中使用。 完美的接地引脚设计可防止与患者相连的重要设备产生静电,还可避免来自其他设备的电流损伤。


智能 HTB-100-HM170 医疗计算系统可用于诸如 ICU、手术室或急救室等医疗环境,能满足医疗应用的各种需求。




   产品特征

Medical grade with high performance fanless embedded computing
6th Gen Intel® Core™ processor platform with Intel® HM170 chipset and DDR4 memory
Triple independent display with high resolution support
Isolated COM ports for enhancing safety among devices
Optional PCIe x16 expansion slot supports more flexible functions



   Smart & Friendly Design! HTB-100 brings you more satisfaction

Isolated COM ports, rich I/O interface, and multiple expansions are built in to the HTB-100. The intelligent HTB-100 medical computing system will meet all demands from the medical applications.
1. Compliant with medical standards
The HTB-100 is compliant with medical standards, including IEC 60601-1 V3.1, IEC 60601-1-2 V4.0, IEC 62304, IEC 62366, ISO 14971 and FCC part 18 class B, making the medical environment more reliable.
2. Flexible expansion
The flexible expansion is one of the advantages of the HTB-100 for medical applications. The HTB-100 reserves a PCIe x16 slot for add-on card expansions, such as capture card for medical imaging inspection during surgery.
Smart & Friendly Design!
Smart & Friendly Design!
3. Waterproof top cover
The HTB-100 is equipped with a waterproof top cover in order to prevent any damage from cleaning or liquid which may indirectly affect patients. The HTB-100 can meet flat design and reduce maintenance effort.

4. Cable cover for easy cabling
The cable cover protects the HTB-100 from dust and liquid ingress, and allows the medical staff to easily manage all the cables from the I/O ports, making the cleaning process more convenient in medical environment.



   Powerful system design capability with innovative technology

Powerful system design capability with innovative technology"images/
2. Fanless and easy maintenance
The HTB-100 is a fanless embedded system, and the heatsink is situated on the bottom side. The design makes the HTB-100 an easyto-clean and reliable system for the medical environment.
3.Ground pin to prevent harm to patients and medical staffs
The perfect grounding pin design can avoid current from the HTB-100 to vital devices which connect to patients, and to avoid the current damage from other devices.
4.Easy mounting design
Various mounting methods such as desktop and wall mount are supported for easy use in medical environment. The provided flexible mounting bracket can be oriented 180 degrees to change from desktop to wall mount.
Powerful system design capability with innovative technology



   产品规格

Model NameHTB-100-HM170
ChassisColorSilver+Greyish blue
Dimensions (WxDxH)294 x 209 x 90.2
System FanFanless
Chassis ConstructionExtruded aluminum alloy
MotherboardCPUIntel® Core™ i7-6822EQ (2 GHz, quad-core, TDP=25)
Intel® Core™ i5-6442EQ (1.9 GHz, quad-core, TDP=25)
ChipsetIntel® HM170
System Memory2 x 260-pin DDR4 SO-DIMM, one 4 GB pre-installed (system max: 32GB)
StorageHard Drive1 x 2.5" SATA 6Gb/s HDD/SSD bay
I/O InterfacesUSB 3.04
USB 2.02
Ethernet2 x RJ-45 PCIe GbE by Intel® I211 controller
COM Port2 x RS-232 (DB-9, with 4 kV isolation)
2 x RS-232/422/485 (DB-9, with 4 kV isolation)
Display1 x VGA, 1 x HDMI 2.0, 1 x iDP (optional)
ResolutionVGA: Up to 1920 x 1200@60HZ
HDMI 2.0: Up to 4096 x 2160@60Hz
AudioRealtek ALC662, 5.1-channel High Definition Audio (HDA), Line-in, Line-out, Mic-in
Wireless1 x 802.11a/b/g/n/c 2T2R (optional)
ExpansionsPCIe1 x PCIe x16
PCIe Mini1 x Half-size PCIe Mini
1 x Full-size PCIe Mini (supports mSATA, colay with SATA)
M.21 x M.2 (A & E key)
PowerPower InputDC Jack: 12~28V DC
Power Consumption19V@4.4A (Intel® Core™ i7-6822EQ with 4 GB memory)
ReliabilityMountingWall mounting
Operating Temperature0°C ~ 40°C with air flow (SSD), 10% ~ 95%, non-condensing
Storage Temperature-40°C ~70°C with air flow (SSD), 10% ~ 90%, non-condensing
Operating ShockHalf-sine wave shock 5G; 11ms; 100 shocks per axis
Operating VibrationMIL-STD-810G 514.6 C-1 (with SSD)
Safety / EMCCE, FCC class B part 18, IEC 60601-1 V3.1, IEC 60601-1-2 V4.0, IEC 62304, IEC 62366, ISO 14971
OSSupported OSMicrosoft® Windows 8, Microsoft® Embedded Standard 7



   I/O Interface

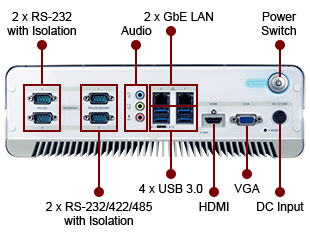

HTB-100 I/O InterfaceHTB-100 I/O Interface



   Dimensions

HTB-100 Dimensions



   订购信息

产品名称描述
HTB-100-HM170-i5/4G-R10Ruggedized fanless embedded system with Intel® Core™ i5-6442EQ 1.9 GHz (up to 2.7 GHz, quad core, TDP 25W), 4GB DDR4 pre-installed memory, one PCIe x16 expansion, VGA/HDMI/iDP, COM port, 12~28V DC, RoHS
HTB-100-HM170-i7/4G-R10Ruggedized fanless embedded system with Intel® Core™ i7-6822EQ 2.0 GHz (up to 2.8 GHz, quad core, TDP 25W), 4GB DDR4 pre-installed memory, one PCIe x16 expansion, VGA/HDMI/iDP, COM port, 12~28V DC, RoHS



   Options

产品名称描述
63040-580120-000-RSAdapter Power, Darfon, H1120-B0, BK.1HB2J3001, Active PFC, Vin:90~264VAC, 120W, 1200mm, MEDICAL, Vout:19VDC, Din 4Pin/lock, CCL, RoHS
32702-000200-100-RSPOWER CORD; EUROPEAN CODE (VDE)



   包装清单

1 x Utility CD1 x One Key Recovery CD
1 x Chassis Screw1 x Mounting Bracket
