IEI 推出全新 NANO-ULT3 嵌入式主板
[ Date: 2016-8-18 9:33]

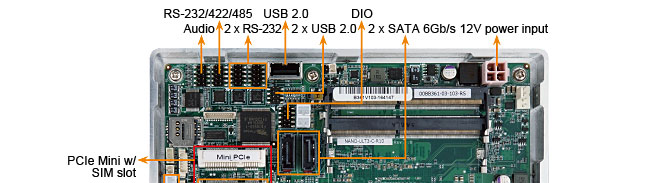

NANO-ULT3




   特征


NANO-ULT3
NANO-ULT3
NANO-ULT3
NANO-ULT3

EPIC SBC 采用第六代 Intel® ULT 处理器支持双通道 DDR4 SODIMMs
支持独立三显
易于安装的导热装置便于温度管理
全长 PCIe Mini 插槽含 SIM sockets支持 3G/LTE 扩展
支持 COM, USB 3.0, SATA 6Gb/s, mSATA, eMMC 5.0 和音频
IEI 一键恢复解决方案可快速创建 OS 备份以及恢复




   规格


型号NANO-ULT3
SoC6th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)
BIOSAMI UEFI BIOS
内存Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max. 32 GB)
Graphics EngineIntel® HD Graphics Gen 9 Engine with 16 low-power execution units, supporting DX11/12,
OpenGL 4.3/4.4 and OpenCL2.x, ES 2.0
显示输出Triple independent display
2 x HDMI (up to 4096x2160@24Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096 x 2304@60Hz) (colay with HDMI1)
EthernetLAN1: Intel® I219-LM PHY with Intel® AMT 11.0 supported
LAN2: Intel® I211-AT PCIe GbE controller
External I/O Interface4 x USB 3.0
Internal I/O Interface
1 x 8 GB eMMC (optional)1 x USB 2.0 (180° Type-A)
1 x KB/MS (1x6 pin) 2 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-232/422/485 (2x5 pin, P=2.0)2 x RS-232 (2x5 pin, P=2.0)
2 x SATA 6G/s with 5V SATA power connector
SMBus1 x SMBus (1x4 pin)
音频Realtek ALC662 HD codec
1 x Analog audio (2x5 pin)
前面板1 x Power LED & HDD LED (1x6 pin)
1 x Power button (1x2 pin)
1 x Reset button (1x2 pin)
LAN LED2 x LAN LED (1x2 pin)
扩展1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
1 x Half-size PCIe Mini card slot
数字 I/O1 x 8-bit digital I/O (2x5 pin)
风扇接口1 x CPU fan connector (1x4 pin)
1 x System fan connector (1x4 pin)
电源12V only DC input
1 x Internal power connector (2x2 pin)
Support AT/ATX mode
看门狗定时器Software programmable supports 1~255 sec. system reset
功耗12V@2.48A (Intel® Core™ i3-6100U CPU with two 8 GB memory)
操作温度-20°C ~ 60°C
存储温度-30°C ~ 70°C
操作湿度5% ~ 95%, non-condensing
尺寸115mm x 165mm
重量GW:850g / NW:350g




   尺寸


NANO-ULT3 Dimensions




   订购信息


料号描述
NANO-ULT3-i7-R10EPIC SBC supports Intel® 14nm 6th Generation Mobile Core™ i7-6600U (15W) on-board Processor (ULT) with HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, SATA 6Gb/s, mSATA, Dual PCIe Mini, COM, Audio and RoHS
NANO-ULT3-i5-R10EPIC SBC supports Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT) with HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, SATA 6Gb/s, mSATA, Dual PCIe Mini, COM, Audio and RoHS
NANO-ULT3-i3-R10EPIC SBC supports Intel® 14nm 6th Generation Mobile Core™ i3-6100U (15W) on-board Processor (ULT) with HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, SATA 6Gb/s, mSATA, Dual PCIe Mini, COM, Audio and RoHS
NANO-ULT3-C-R10EPIC SBC supports Intel® 14nm 6th Generation Mobile Celeron® 3955U (15W) on-board Processor (ULT) with HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, SATA 6Gb/s, mSATA, Dual PCIe Mini, COM, Audio and RoHS
32000-023800-RSPS/2 KB/MS cable, 135mm, P=2.0
32001-008600-200-RSDual-port USB cable, 210mm, P=2.0




   包装清单


1 x NANO-ULT3 single board computer with heatspreader1 x SATA with power cable kit
1 x Audio cable1 x One Key Recovery CD
1 x Power cable1 x QIG (Quick Installation Guide)
1 x RS-232 cable1 x Utility CD
