威强推出全新 ICEROCK3 超强助理
[ Date: 2015-5-13 10:30]




ICEROCK3



   特征

10.1” 350 cd/m² TFT LCD 电容式触摸屏
Intel® Celeron® 1047UE 或 Intel® Core™ i7-3517UE 平台
由 Windows® Embedded Standard 7 P 驱动
蓝牙, Wi-Fi, 3.75G wireless with GPS
1D/2D 条码读取器, 13.56MHz RFID 读取器
130万像素 CMOS 前置摄像头和 500万像素 CMOS 后置摄像头
内置双热插拔电池
可选 Windows 8 操作系统




   规格


型号ICEROCK 3
显示LCD 尺寸10.1” TFT LCD
亮度 (cd/m²)350
****分辨率 (HxV)1280 x 800
可视角度 85/85/85/85 Deg.
触摸屏投射电容式
系统CPUIntel® Celeron® 1047UE 或 Intel® Core™ i7-3517UE
芯片组Intel® HM76
操作系统Windows® Embedded Standard 7 P
内存板载 4.0 GB DDR3 SDRAM 和可选 4.0 GB DDR3 SDRAM SO-DIMM
存储32GB MLC mSATA
通讯Wireless LANWi-Fi 802.11b/g/n
BluetoothBluetooth 3.0
ModemUMTS/HSUPA Band 1, 2, 4, 5, 6, 8
GPSGPS with internal antenna
数据采集RFID13.56MHz RFID 支持 ISO 14443A/B (Mifare, Felica)
条码1D/2D imager scan engine
摄像头1.3-megapixel front camera 5-megapixel rear camera
指示灯 & 按钮按钮1 x 电源按钮
2 x 快捷键
1 x iMenu
LED 指示灯Battery charging/peripheral device/storage/wireless device
I/O 接口音频1 x Headphone
1 x Mic-in
2 x 1 W speakers
扩展3 x USB 3.0
1 x SIM card slot
1 x Micro HDMI
电源电源适配器输入 AC: 100~240V
输出 DC: 19V / 3A
电池40 W standard battery pack (5 working hours)
40 W optional battery pack (5 working hours)
环境操作温度0°C~40°C
存储温度-20°C~60°C
湿度5%~95%, 无冷凝
跌落测试1.2M
防护等级前面板 :IP64
背面: IP65
认证CE / FCC
物理尺寸 (LxWxH) (mm)297 x 234 x 32
重量1.9 kg

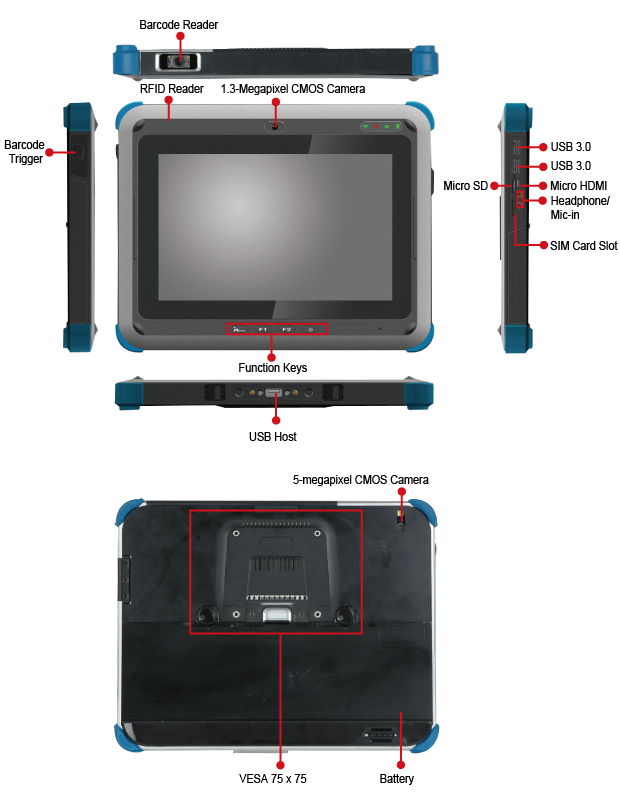

    集成 I/O






   型号差异


产品名称 ICEROCK3-T10-HU-R10ICEROCK3-T10-ETC-R10ICEROCK3-T10-HUI-R10
CPUCeleron 1047UECeleron 1047UEi7-3517UE
TouchCapacitive touchCapacitive touchCapacitive touch
IPSYESYESYES
RAM8GB4GB8GB
Wireless802.11 b/g/n802.11 b/g/n

802.11 b/g/n

BluetoothVer. 3.0Ver. 3.0Ver. 3.0
BarcodeYESN/AYES
RFIDYESYESYES
3.75GYESN/AYES
GPSYESN/AYES
5M CameraYESN/AYES
2nd BatteryYESN/AYES




   可选附件清单


名称料号描述
Charging BayICEROCK3-CR01-R10Independent charging bay for ICEROCK3
(with interlocking design)
Combo Card ReaderICEROCK3-3IN1-R10Smart card reader, magnetic stripe reader, fingerprint reader Combo add-on module
Carrying Case7Z000-ICEROCK3-10POUCHProtective bag with shoulder strap
Combo Card ReaderCharging Bay
Combo Card Reader
Carrying Case
Carrying CaseCharging Bay





   订购信息


料号描述
ICEROCK3-T10-HU-R10
Intel® Celeron® 1047UE 1.4Ghz, Capacitive touch, IPS panel, 8GB RAM, 32G SSD, 802.11 b/g/n&BT, RFID, 1.3M/5M camera, GPS, Barcode Reader, RFID, 2nd battery, WS7P, RoHS
ICEROCK3-T10-ETC-R10
Intel® Celeron 11047UE 1.4Ghz, Capacitive touch, IPS panel, 4GB RAM, 32G SSD, 802.11 b/g/n&BT, RFID, 1.3M camera, WS7P, RoHS
ICEROCK3-T10-HUI-R10
Intel® i7-3517UE CPU, Capacitive touch, IPS panel, 8GB RAM, 32G SSD, 802.11 b/g/n&BT, 3.75G, RFID, 1.3M/5M camera, 2nd battery, GPS, barcode, WS7P, RoHS
