威强推出 PPC-F10B-BT 重工业平板电脑
[ Date: 2015-10-20 17:17]
特征 | |
|
![](/UploadPic2/2015-10/20151020171658641.gif) | 10.4” 无风扇工业平板电脑 | ![](/UploadPic2/2015-10/20151020171658641.gif) | 支持低功耗 DDR3L 内存 | ![](/UploadPic2/2015-10/20151020171658641.gif) | Quad-core Intel® Celeron® processor J1900 2.0GHz | ![](/UploadPic2/2015-10/20151020171658641.gif) | 前面板符合 IP 65 | ![](/UploadPic2/2015-10/20151020171658641.gif) | 支持 SSD mSATA | ![](/UploadPic2/2015-10/20151020171658641.gif) | Dual GbE 支持备份 | ![](/UploadPic2/2015-10/20151020171658641.gif) | 9 V~30 V wide DC input | ![](/UploadPic2/2015-10/20151020171658641.gif) | -10°C~50°C 宽温 | ![](/UploadPic2/2015-10/20151020171658313.jpg) |
|
|
规格 | |
|
型号 | PPC-F10B-BT | LCD | LCD 显示 | 10.4” | ****分辨率 | 800 (W) x 600 (H) | 亮度 (cd/m²) | 400 | 对比率 | 700:1 | LCD 颜色 | 16.2M | Pixel Pitch (mm) | 0.264(H) x 0.264(V) | Viewing Angle (H-V) | 160° / 140° | Backlight MTBF (Hrs) | 30000 | 主板 | CPU | Intel® Celeron® J1900 on-board SoC quad-core, 2GHz | RAM | 2 x 204-pin DDR3L SO-DIMM slot (max. 8GB) | 触摸 | 触摸屏 & 控制器 | 5-wire resistive type flat touchscreen | 面板硬度 | 3H | 输入接口 | I/O 接口 & 开关 | 1 x RS-232 COM port (RJ-45 connector) 1 x RS-232/422/485 COM port (DB9 connector) (RI/5V/12V) 2 x USB 2.0 2 x USB 3.0 2 x GbE LAN 1 x Power switch 1 x Reset button 1 x AT/ATX switch 1 x Audio port (line-out) 1 x 9 V~30 V lockable power jack | 扩展 | 1 x Full-size PCIe Mini slot (with mSATA/PCIe/USB signal) 1 x Half-size PCIe Mini slot for Wi-Fi modules | Wireless LAN | SMA antenna (optional) | 存储 | SSD | mSATA | HDD | 1 x 2.5” HDD bay | 物理属性 | 材质 | Aluminum front bezel | 安装 | Stand/ Panel Mount/Rack Mount/ VESA 75*75/100*100 Mount | 外壳颜色 | Black C | 尺寸 (mm) | 232.4 x 285.2 x 44 | 重量 (Net) | 1.77kg | 开孔尺寸 (mm) | 267.2 x 214.4 | 环境 | 操作温度 (with air flow) | -10°C~50°C (14°F~122°F) | 存储温度 | -20°C~60°C (-4°F~140°F) | 湿度 | 10% to 95% (non-condensing) | IP 等级 | IP 65 compliant front panel | 安规和 EMC | CE & FCC Class A certified | 电源输入 | Power Supply | 9 V~30 V DC | 功耗 | 40W |
|
|
完整的 I/O 接口 | |
|
|
|

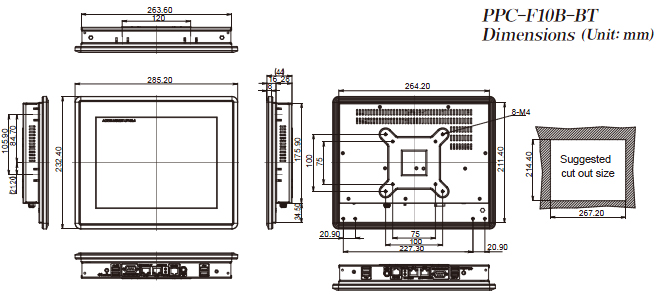

尺寸 | |
|
![](/UploadPic2/2015-10/2015102017170213.jpg)
|
|
订购信息 | |
|
料号 | 描述 | PPC-F10B-BT-J1/2G/R-R10 | 10.4” 400 cd/m² SVGA panel PC with Intel® Celeron® processor J1900, TDP 10W, 2GB DDR3L RAM, black color, 9-30V DC input, resistive touch window, R10 |
|
|
可选配件 | |
|
名称 | PPC-F10B | ARM | ARM-11-RS | Stand | STAND-100-RS STAND-B08 STAND-C12-R10 | Wall Mount Kit | AFLWK-12 | Panel Mount Kit | FPK-07-R10 | WiFi Kit | PPC-WL-KIT02-R11 |
|
|
包装清单 | |
|
名称 | 数量 | 备注 | PPC-FxxB-BTi Panel PC | 1 |
| User Manual & Driver CD | 1 | | One Key Recovery CD | 1 | | Touch Pen | 1 | Resistive type models only P/N: 43125-0002C0-00-RS | Power Cord | 1 | Part numbers varies by regions | Screw Pack | 1 | Including necessary screws | Power Adapter | 1 | 9V~36V DC |
|
