特征 | |
| ![](http://files.ieiworld.com/files/news/EN/ProductNews/ECN-680A/ECN-680A-H61_eDM/images/dot_or.gif) | Intel® Ivy Bridge 移动芯片组 (QM77/ NM70)
| ![](http://files.ieiworld.com/files/news/EN/ProductNews/ECN-680A/ECN-680A-H61_eDM/images/dot_or.gif) | 预留空间给 3.75G / HSUPA USB 电子狗 | ![](http://files.ieiworld.com/files/news/EN/ProductNews/ECN-680A/ECN-680A-H61_eDM/images/dot_or.gif) | 15’’ 400 nits 1024 x 768 LCD 带 LED 背光灯 | ![](http://files.ieiworld.com/files/news/EN/ProductNews/ECN-680A/ECN-680A-H61_eDM/images/dot_or.gif) | 可选 GPS 接收器 | ![](http://files.ieiworld.com/files/news/EN/ProductNews/ECN-680A/ECN-680A-H61_eDM/images/dot_or.gif) | 全 IP 65 铝制压铸机身 | ![](http://files.ieiworld.com/files/news/EN/ProductNews/ECN-680A/ECN-680A-H61_eDM/images/dot_or.gif) | 可选 EM 或 Mifare RFID 读取器 | ![](http://files.ieiworld.com/files/news/EN/ProductNews/ECN-680A/ECN-680A-H61_eDM/images/dot_or.gif) | PCIe Mini 卡扩展 | ![](http://files.ieiworld.com/files/news/EN/ProductNews/ECN-680A/ECN-680A-H61_eDM/images/dot_or.gif) | 可选蓝牙模块 | ![](http://files.ieiworld.com/files/news/EN/ProductNews/ECN-680A/ECN-680A-H61_eDM/images/dot_or.gif) | Dual-DC 输入, 9V ~ 36V 和 10.5V ~ 36V, 自动开关
| ![](http://files.ieiworld.com/files/news/EN/ProductNews/ECN-680A/ECN-680A-H61_eDM/images/dot_or.gif) | 内置 2百万像素摄像头, 具备 AF, AE 和 AWB 性能 | ![](http://files.ieiworld.com/files/news/EN/ProductNews/ECN-680A/ECN-680A-H61_eDM/images/dot_or.gif) | 支持 ACC 电源 | ![](http://files.ieiworld.com/files/news/EN/ProductNews/ECN-680A/ECN-680A-H61_eDM/images/dot_or.gif) | CAN-bus 接口带隔离保护 | ![](http://files.ieiworld.com/files/news/EN/ProductNews/ECN-680A/ECN-680A-H61_eDM/images/dot_or.gif) | Dual-band 2.4/5GHz Wi-Fi 802.11a/b/g/n 3T3R MIMO 设计 | ![](http://files.ieiworld.com/files/news/EN/ProductNews/ECN-680A/ECN-680A-H61_eDM/images/dot_or.gif) | F1 ~ F10 功能键支持客制选项 |
|
坚固的机械设计 | |
|

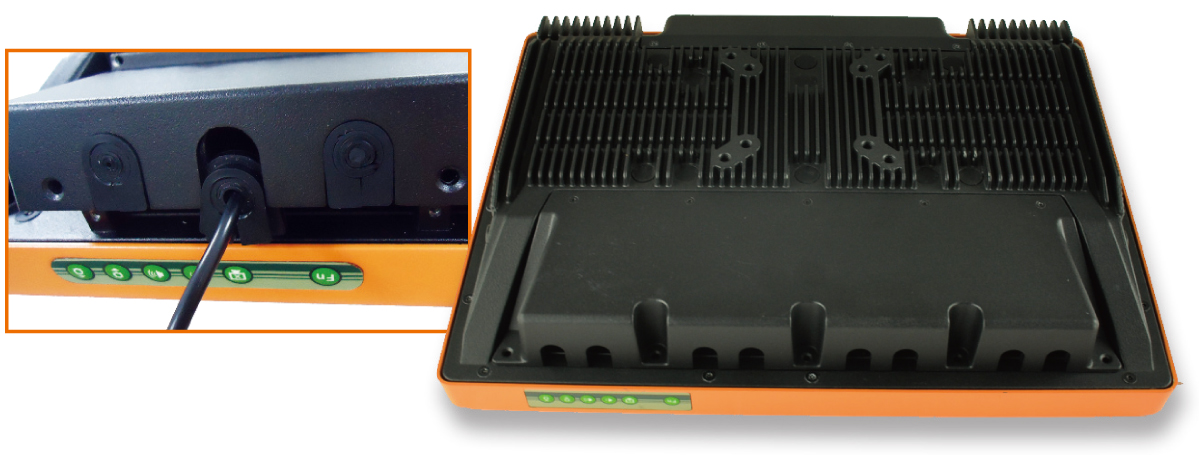

UPC-V315 的铝制机身和防水橡胶外壳完全符合 IP65 防护等级. 它支持宽温操作 -20°C ~ 60°C. | ![](/UploadPic2/2013-8/201382816379770.jpg) | ![](/UploadPic2/2013-8/2013828163713823.jpg) |
| |
PCIe Mini 卡扩展 | |
|
A. 3T3R Wi-Fi 模块
UPC-V315 支持 IEEE 802.11a/b/g/n 3T3R WiFi 模块, 提高传输速度和覆盖范围. T: 发射器 T 前的数字与速度有关, 1T 可达 150Mbps, 2T 可达 300Mbps, 3T 可达 450Mbps.
R: 接收器 R 前的数字与接收死角和距离有关. R 前的数字越大, 接受范围更大. |
| B. 固态硬盘
mSATA mSATA 是紧凑型坚固耐用 HDD,比传统的速度更快, 适用于恶劣的环境.
| C. 4 通道采集卡 UPC-V315-QM77 支持 4 通道采集卡解决方案通过 PCIe Mini 卡, 轻松集成 IP 摄像头支持监控和视频流. | | 仅支持 QM77 | | IVCME-C604 | | 叉车管理 | 屠宰场 | 花卉市场管理 |
|
| |
CAN-bus 接口带隔离保护 | |
| 控制局域网 (CAN) 是一个串行总线系统. UPC-V312 板载 CAN 控制器 提供总线仲裁和错误检测记忆自动传输重复功能. 这大大减少数据丢失的可能性, 确保系统的可靠性,适用于网络智能 I/O 设备如传感器, 机器或工厂的制动器
1. 隔离保护电压 2500V/min DC 保护 2. 典型瞬态免疫 50 kV/ms ESD 保护 | |
| |
IO 接口和人机界面 | |
| ![](/UploadPic2/2013-8/2013828163718688.jpg) |
![](/UploadPic2/2013-8/2013828163718680.jpg) | Fn | ![](/UploadPic2/2013-8/2013828163719357.jpg) | 背光灯开/关 | ![](/UploadPic2/2013-8/2013828163718680.jpg) ![](/UploadPic2/2013-8/2013828163719154.jpg) ![](/UploadPic2/2013-8/2013828163719357.jpg) | RFID 启用 / 禁用 | ![](/UploadPic2/2013-8/2013828163719214.jpg) | 音频 - | ![](/UploadPic2/2013-8/2013828163718680.jpg) ![](/UploadPic2/2013-8/2013828163719154.jpg) ![](/UploadPic2/2013-8/2013828163719214.jpg) | 静音 | ![](/UploadPic2/2013-8/2013828163719110.jpg) | 音频 + | ![](/UploadPic2/2013-8/2013828163718680.jpg) ![](/UploadPic2/2013-8/2013828163719154.jpg) ![](/UploadPic2/2013-8/2013828163719110.jpg) | 摄像头启用 / 禁用 | ![](/UploadPic2/2013-8/2013828163720285.jpg) | 亮度 - | ![](/UploadPic2/2013-8/2013828163718680.jpg) ![](/UploadPic2/2013-8/2013828163719154.jpg) ![](/UploadPic2/2013-8/2013828163720285.jpg) | 右侧 USB 启用 / 禁用 | ![](/UploadPic2/2013-8/2013828163720624.jpg) | 亮度 + | ![](/UploadPic2/2013-8/2013828163718680.jpg) ![](/UploadPic2/2013-8/2013828163719154.jpg) ![](/UploadPic2/2013-8/2013828163720624.jpg) | 电源开 / 关 |
|
| |
规格 | |
| 型号 | UPC-V315-NM70 | UPC-V315-QM77 | 显示 | LCD 尺寸 | 15 “ | 15 “ | ****分辨率 | 1024(W) x 768(H) | 1024(W) x 768(H) | 亮度 (cd/m²) | 400 | 400 | 对比率 | 700:1 | 700:1 | LCD 颜色 | 16.2M | 16.2M | 像素间距 (mm) (HxV) | 0.297(H) x 0.297(V) | 0.297(H) x 0.297(V) | 可视角度 (H-V) | 125°/ 140° | 125°/ 140° | 背光灯 MTBF (hrs) | 50000 | 50000 | 触摸 | 触摸屏 | Resistive Type 5-Wire with RS-232 interface | 触摸控制器 | DMC 9000 | DMC 9000 | 主板 | CPU | Intel® Celeron® Processor 847 | Intel® Core™ i7-3517UE Processor Intel® Core™ i3-3217UE Processor | 芯片组 | Mobile Intel® NM70 Express Chipset | Mobile Intel® QM77 Express Chipset | RAM | Buitl-in one 2 GB DDR3 memory (System max. 8GB, on board max. 4GB, socket max. 4GB) | Ethernet | Intel® WG82579LM GbE PHY | Intel® WG82579LM GbE PHY | 音频编解码器 | Realtek ALC892 HD audio codec | Realtek ALC892 HD audio codec | I/O 接口和开关 | 3 x RS-232 (RJ-45) 1 x RS-422/485 (RJ-45) 1 x CAN-bus 1 x VGA 1 x HDMI port 2 x GbE LAN 2 x USB 2.0 1 x Reset button 1 x Audio jack (Line out,MIC) 1 x DC Jack (9~36V DC) 1 x Terminal block (9~36V DC) 1 x AT / ATX mode switch | 3 x RS-232 (RJ-45) 1 x RS-422/485 (RJ-45) 1 x CAN-bus 1 x VGA 1 x HDMI port 2 x GbE LAN 2 x USB 2.0 2 x USB 3.0 1 x Reset button 1 x Audio jack (Line out, MIC) 1 x DC Jack (9~36V DC) 1 x Terminal block (9~36V DC) 1 x AT / ATX mode switch | 系统 | 音频 | AMP 3W + 3W (Internal Speaker) | AMP 3W + 3W (Internal Speaker) | 摄像头 | 2-megapixel | 2-megapixel | 其他特征 | 无线 | IEEE 802.11a/b/g/n 3T3R module (WIFI-RT5393-DB-R10) | 蓝牙 | Bluetooth V2.0+EDR with USB interface (optional) | 3G | Reserved USB connector (Optional) | Reserved USB connector (Optional) | GPS | N/A | FV-W9U (Optional, internal USB header) | Drive Bay | HDD Driver Bay | 1 x 2.5” SATA SSD bay | 1 x 2.5” SATA SSD bay | SSD | mSATA | mSATA | CD-ROM Driver Bay | N/A | N/A | 扩展槽 | N/A | 1 x PCIe Mini Card | Drive Bay | Fanless | Fanless | 物理属性 | 机构材质 | Aluminium alloy | Aluminium alloy | 安装 | VESA 100mm x100mm or 75mm x 75mm with M8 screws | 前面板颜色 | Orange (Pantone 15C) | Orange (Pantone 15C) | 尺寸 (WxHxD) (mm) | 427.19 x 330.63 x 77.06 | 427.19 x 330.63 x 77.06 | 净重 | 7.97 kg | 7.97 kg | 环境 | 操作温度 | -20°C ~60°C | -20°C ~60°C | 存储温度 | -30°C ~70°C | -30°C ~70°C | 操作湿度 | 5% ~90%, 无冷凝 | 5% ~90%, 无冷凝 | 冲击 | Half-sine wave shock 3G, 11ms, 3 shocks per axis | 振动 | MIL-STD-810F 514.5C-1 (with SSD) | IP 等级 | Full IP 65 | Full IP 65 | 电源 | 适配器 | 90 W, 63040-010090-020-RS | 90 W, 63040-010090-020-RS | 要求 | Power1: 9V~36V(+/-0.3V) Power2: 10.5V~36V(+/-0.3V) | Power1: 9V~36V(+/-0.3V) Power2: 10.5V~36V(+/-0.3V) |
| |

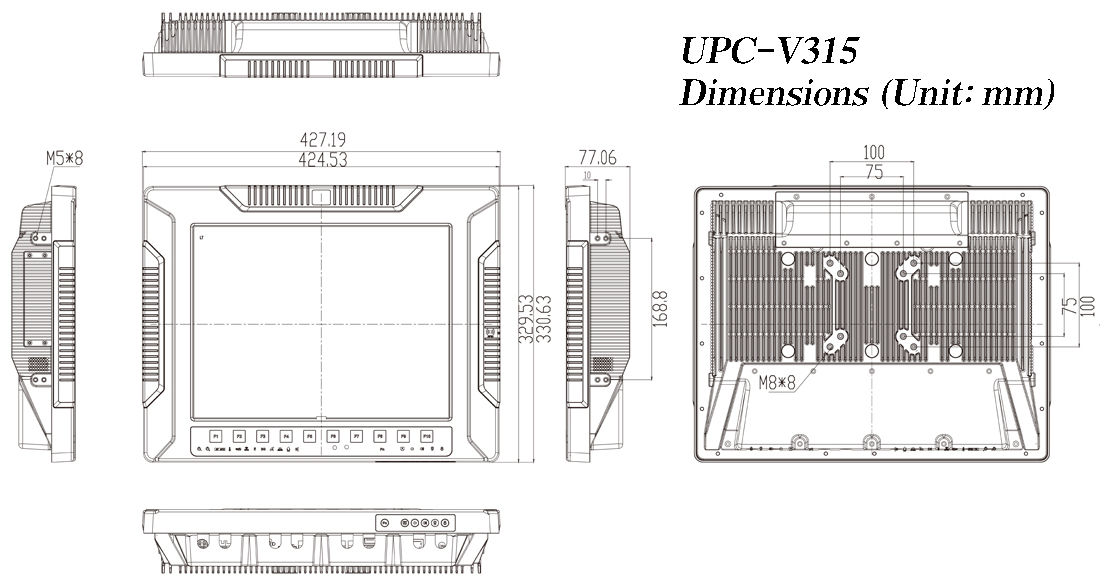

尺寸 | |
| ![](/UploadPic2/2013-8/2013828163721131.jpg) | |
订购信息 | |
| 料号 | 描述 | UPC-V315-QM77-i7/R/2G-R10 | 15” 400cd/m² XGA fanless full IP65 panel PC with Mobile Intel® QM77 Express Chipset and Intel® Core™ i7-3517UE Processor, 802.11a/b/g/n wireless module, resistive touch screen, 2-mgeapixel camera, microphone, 2GB DDR3 RAM, R10 | UPC-V315-QM77-i3/R/2G-R10 | 15” 400cd/m² XGA fanless full IP65 panel PC with Mobile Intel® QM77 Express Chipset and Intel® Core™ i3-3217UE Processor, 802.11a/b/g/n wireless module, resistive touch screen, 2-mgeapixel camera, microphone, 2GB DDR3 RAM, R10 | UPC-V315-NM70-C/R/2G-R10 | 15” 400cd/m² XGA fanless full IP65 panel PC with Mobile Intel® NM70 Express Chipset and Intel® Celeron® Processor 847, 802.11a/b/g/n wireless module, resistive touch screen, 2-mgeapixel camera, microphone, 2GB DDR3 RAM, R10 |
| |
可选配件 | |
| 名称 | 料号 | ARM | ARM-31-RS | Wall Mounting Kit | AFLWK-19B | Stand | STAND-C19-R10/STAND-100/STAND-210 | GPS Module Kit | UPC-GPS-KIT01-R10 | Bluetooth Module Kit | UPC-BT-KIT01-R10 | EM RFID Kit | UPC-EM-RFID-KIT01-R10 | Mifare RFID Kit | UPC-MF-RFID-KIT01-R10 | OS: Win XPE (CD-ROM) | UPC-V315-XPE-R10 | OS: Linux (CD-ROM) | UPC-V315-LNX-R10 | OS: Win 7 Embedded (CD-ROM) | UPC-V315-W7E-R10
|
| |
包装清单 | |
| 名称 | 料号 | 数量 | Utility CD | | 1 | One Key Recovery CD | | 1 | IR Remote Controller | 7Z000-SLPCB005-RS | 1 | RJ-45 to DB-9 COM Port Cable | 32005-000200-200-RS | 4 | M8 Screw | 44325-080081-RS | 8 | M4 Screw | 44005-040082-RS | 8 | Mounting Bracket | 41003-0433C2-00-RS | 2 | Screw Driver | 45019-001004-00 | 1 | Power Adapter | 63040-010065-010-RS | 1 | Power Cord (European Standard) | 32702-000401-100-RS | 1 | Power Transfer Cord | 32702-000300-100-RS | 1 | M8 to M4 Screw | 44300-040061-RS | 8 |
| |
|
|
