威强推出D525 系列支持 3个GbE LAN 的 Mini-ITX 工业主板
[ Date: 2011-9-26 9:21:15]
全球工业电脑的领导者威强(IEI)推出最新工业主板 KINO-PV-D4253/D5253,支持带 ASF 2.0 的 3 个GbE LAN,该系列采用 Intel® Atom™ D425/D525 处理器并支持DDR 3 技术。Intel® Atom™ D425/D525 处理器集成图形处理器和内存控制器,支持 800 MHz DDR3 SO-DIMM。1.8 GHz 的加速处理速度专为高负荷和入门级计算而设计。它还拥有UEFI BIOS架构以及在64位操作系统下支持超过2.2 TB硬盘的显著功能。
KINO-PV-D4253/D5253 工业主板设有3 个PCIe GbE 接口,适合各种工业自动化环境的应用,同时兼容 1U 机箱。此外,它还拥有完整的I/O 接口,包括 8 个 USB 接口,2 个SATA 3Gb/s 接口,1 个 LPT 接口,6个 COM 接口和音频接口。
所有威强Intel® Atom™ D425/D525工业主板都支持威强独有的一键恢复(One Key Recovery) 软件解决方案。该软件很好地解决了系统意外故障后的修复。一键恢复软件可轻松创建系统备份,使系统恢复到之前的备份状态。
产品特征 |
| |
![](http://files.ieiworld.com/files/news/EN/ProductNews/KINO-PV-D4253D5253/images/dot_or.gif) |
Mini-ITX form factor with Intel® Atom™ D525/D425 processor |
![](http://files.ieiworld.com/files/news/EN/ProductNews/KINO-PV-D4253D5253/images/dot_or.gif) |
Two DDR3 800 MHz SO-DIMM slots support up to 4GB |
![](http://files.ieiworld.com/files/news/EN/ProductNews/KINO-PV-D4253D5253/images/dot_or.gif) |
Compliant with 1U chassis |
![](http://files.ieiworld.com/files/news/EN/ProductNews/KINO-PV-D4253D5253/images/dot_or.gif) |
Three GbE LAN with ASF2.0 support |
![](http://files.ieiworld.com/files/news/EN/ProductNews/KINO-PV-D4253D5253/images/dot_or.gif) |
Complete I/O with eight USB, two SATA 3Gb/s, one LPT, six COM and audio |
|
![](/UploadPic2/2011-9/20119269210883.gif) |
Products Information |
|
|
![](/UploadPic2/2011-9/20119269211463.gif) |
![](http://files.ieiworld.com/files/news/EN/ProductNews/NANO-PV-D4251N4551D5251/images/whiteframe_02.gif) |
![](/UploadPic2/2011-9/20119269211720.gif) |
![](http://files.ieiworld.com/files/news/EN/ProductNews/NANO-PV-D4251N4551D5251/images/whiteframe_04.gif) |
|
Mini-ITX SBC support Intel® Atom™ D525/D425, DDR3, VGA, three GbE, six COM, USB 2.0 and SATA 3Gb/s, RoHS |

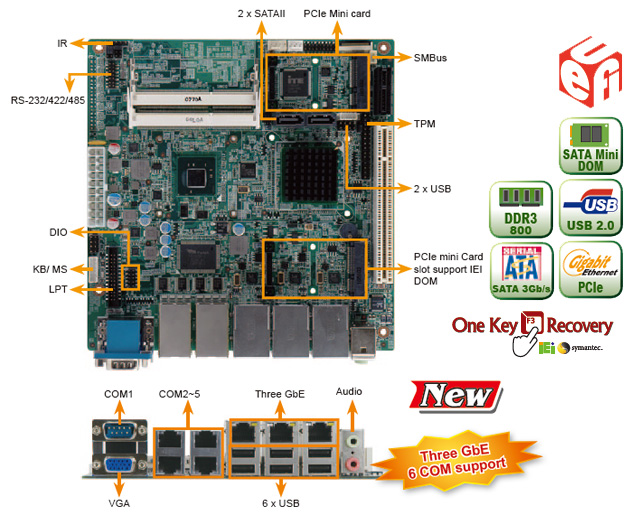

![](/UploadPic2/2011-9/20119269211823.jpg)
IEI Mini-ITX Selection Table |
Feature |
KINO-PVN-D5251 |
KINO-PV-D5252 |
KINO-PVD5253 |
Power input |
DC 12V input |
DC 12V input |
AT/ ATX power |
Mini PCIe slot |
1 |
1 |
2 |
GbE LAN |
2 |
2 |
3 |
Display |
VGA, Dual Link DVI-I, HDMI |
VGA, 18 bits LVDS, 24 bits LVDS (optional) |
VGA |
COM |
3 x RS-232 1 x RS-232/422/485 |
5 x RS-232 1 x RS-232/422/485 |
5 x RS-232 1 x RS-232/422/485 |
TPM |
None |
On board Infineon SLB9635 (optional) |
By 2 x 10-pin header |
| |
![](http://files.ieiworld.com/files/news/EN/ProductNews/NANO-PV-D4251N4551D5251/images/whiteframe_06.gif) |
![](/UploadPic2/2011-9/20119269212169.gif) |
![](http://files.ieiworld.com/files/news/EN/ProductNews/NANO-PV-D4251N4551D5251/images/whiteframe_08.gif) |
![](/UploadPic2/2011-9/20119269212295.gif) | | |
|
产品规格 |
|
|
CPU |
Intel® Dual Core Atom™ D525 Processor 1.8GHz/1MB L2 cache Intel® Single Core Atom™ D425 Processor 1.8GHz/512KB L2 cache |
Chipset |
ICH8M |
BIOS |
UEFI BIOS |
Memory |
2 x SO-DIMM DDR3 800MHz up to 4GB |
Graphic |
GMA 3150 |
Display Interface |
Analog CRT up to 2048x1536, Support for CRT hotplug |
Ethernet |
Three PCIe GbE by Realtek RTL8111E with ASF2.0 support |
I/O Interfaces |
4 x RS-232 (RJ-45) 1 x RS-232 (DB-9) 1 x RS-232/422/485 (pin header) 1 x LPT 1 x KB/MS pin header 2 x SATA 3Gb/s 8 x USB2. |
SMBus |
1 x 4-pin wafer connector |
TPM |
2 x 10-pin header |
Digital I/O |
8-bit digital I/O, 4-bit input / 4-bit output |
Expansion |
1 x PCI Slot 1 x PCIe x1 slot 2 x PCIe Mini card slot |
Audio |
Realtek ALC 888 HD codec |
Watchdog Timer |
Software programmable support 1~255 sec. system reset |
Power Supply |
AT/ATX power supply support |
Super IO |
Fintek F81865 |
Fan Connector |
1 x 4-pin CPU fan 1 x 3-pin system fan |
Power Consumption |
12V@0.76A, 5V@2.62A (Intel® Atom™ D525 1.8GHz wiht DDR3 1333MHz 1GBx2 DIMM) |
Temperature |
-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D525 processor -20°C ~ 65°C with free air, -20°C ~ 70°C with force air for D425 processor |
Humidity |
Operation: 5% ~ 95% non-condensing |
Dimensions |
170mm x 170mm |
Weight |
GW: 900g / NW: 360g |
|
|
|

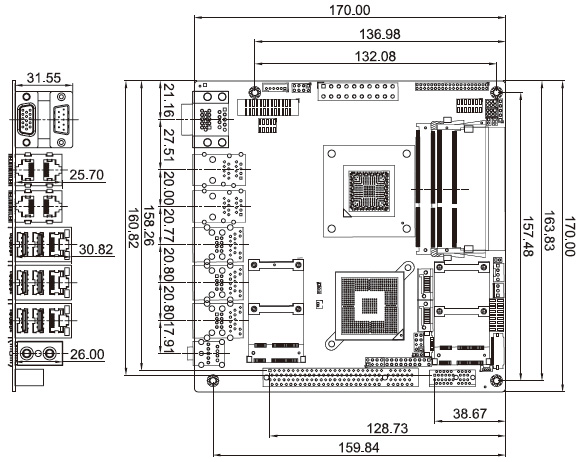

Dimensions (Unit: mm) |
|
|
|
|
包装清单 |
|
|
1 x KINO-PV-D4253/D5253 single board computer |
1 x SATA cable (P/N:32000-062800-RS) |
1 x I/O shielding (P/N:45014-0033C0-00-RS) |
1 x Mini jumper pack |
1 x QIG |
1 x Utility CD |
|
|
订购信息 |
|
|
产品名称 |
描述 |
KINO-PV-D5253-R10 |
Mini ITX SBC with Intel® Atom™ D525 1.8GHz, DDR3, VGA, 6 COM, 3 GbE, dual PCIe mini, SATA, and audio |
KINO-PV-D4253-R10 |
Mini ITX SBC with Intel® Atom™ D425 1.8GHz, DDR3, VGA, 6 COM, 3 GbE, dual PCIe mini, SATA, and audio |
32000-0023800-RS |
PS2 KB/MS cable |
32102-000100-200-RS |
SATA power cable |
32200-015100-RS |
LPT cable |
32005-000200-100-RS |
RJ-45 to RS-232 cable |
19800-003100-100-RS |
Dual USB port with bracket |
PCIER-K101L-R10 |
PCIe x1 riser card |
19800-000110-RS |
RS-232/422/485 cable |
TPM-IN01-R11 |
20-Pin Infi neon TPM module, software management tool, fi rmware V3.17 |
|
