KINO-HM551:支持Intel® mobile Core™ i7/i5/i3 处理器的Mini-ITX主板
[ Date: 2010-11-19 10:05:51]
|
|
• |

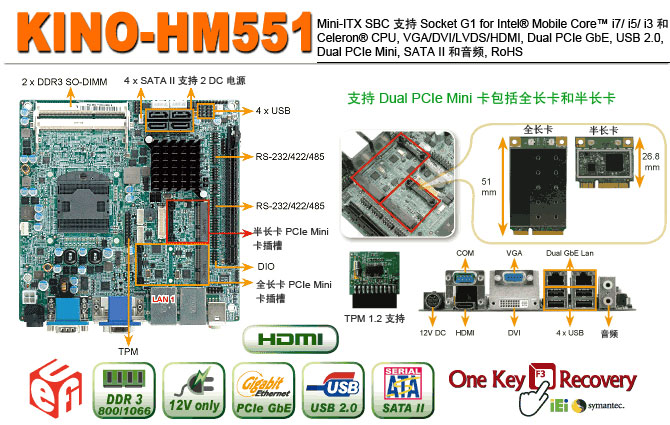

Mini-ITX SBC 支持 socket G1 Intel® Mobile Core™ i7/i5/i3 和 Celeron® 处理器 |
• |
DDR3 800/1066HMz 双通道 SDRAM 支持达到 8GB |
• |
18/24-bit 双通道 LVDS/ 模拟 CRT/ DVI/ HDMI输出支持 |
• |
PCIe x16 插槽和 Dual MiniPCIe 卡支持高速扩展 |
• |
TPM 模块支持 TPM V1.2 硬件安全功能 |
• |
威强一键恢复(One Key Recover)解决方案可快速创建OS备份和恢复支持 | |
|
|
|
Mobile Core™ i7/ i5/ i3/ Celeron® 平台的****图形性能解决方案 |
|
![](http://files.ieiworld.com/files/news/EN/ProductNews/NANO-HM551/images/Best-graphic-Performance-So.png) |
|
![](/UploadPic2/2010-11/2010111910537770.gif) |
支持 QM57/ HM55 的 Mobile Core™ i7 嵌入式 CPU 列表 |
|
![](http://files.ieiworld.com/files/news/EN/ProductNews/NANO-HM551/images/CPU.png) |
|
![](/UploadPic2/2010-11/2010111910537770.gif) |

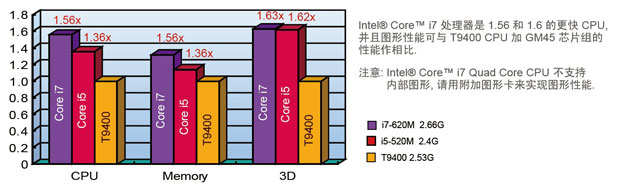

CPU 性能对比 |
|
![](/UploadPic2/2010-11/2010111910537338.jpg) |
|
![](/UploadPic2/2010-11/2010111910537770.gif) |
Core™ i7 高价值的选择 |
|
Ibex Peak-M 特征 |
QM57 |
HM55 |
PCI-Express |
8 ports |
6 ports |
SATA |
6 ports |
4 ports |
TDP |
3.2~3.5W |
3.2~3.5W |
Intel Active Management Technology (Intel AMT) |
6.0 (integrated KVM) |
不支持 |
USB 2.0 Ports |
14 ports |
12 ports | |
| |
|
|

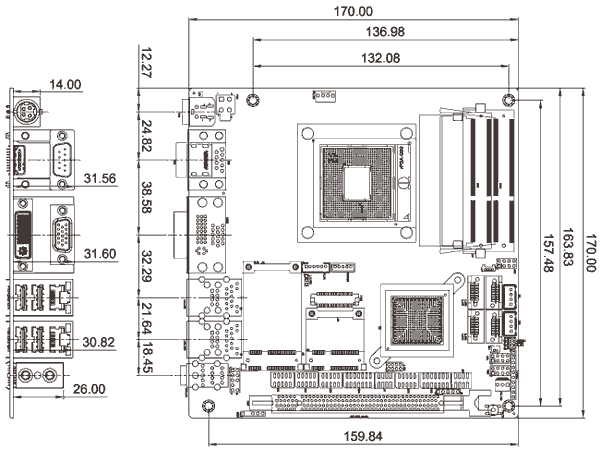

![](http://files.ieiworld.com/files/news/EN/ProductNews/KINO-HM551/images/dot_or.gif) |
CPU |
|
Socket G1 for Intel® Mobile Core™ i7/ i5/ i3 and Celeron® 处理器 (Socket 988) |
![](http://files.ieiworld.com/files/news/EN/ProductNews/KINO-HM551/images/dot_or.gif) |
PCH |
|
Intel® HM55 |
![](http://files.ieiworld.com/files/news/EN/ProductNews/KINO-HM551/images/dot_or.gif) |
BIOS |
|
UEFI BIOS |
![](http://files.ieiworld.com/files/news/EN/ProductNews/KINO-HM551/images/dot_or.gif) |
内存 |
|
两个 204-pin 4GB (****支持) 800/1066MHz 双通道 DDR3 SDRAM SO-DIMM (系统****支持 8GB)
|
![](http://files.ieiworld.com/files/news/EN/ProductNews/KINO-HM551/images/dot_or.gif) |
图形引擎 |
|
Gen 5.75 支持 12 Execution Units DirectX* 10, OpenGL* 2.1 |
![](http://files.ieiworld.com/files/news/EN/ProductNews/KINO-HM551/images/dot_or.gif) |
显示接口 |
|
模拟 CRT 通过 VGA 接口 (2048x1536) 18/24-bit 双通道 LVDS (1600x1200) HDMI 支持分辨率达到 1080p DVI-D
|
![](http://files.ieiworld.com/files/news/EN/ProductNews/KINO-HM551/images/dot_or.gif) |
网络 |
|
Daul GbE LAN 控制器通过 Realtek RTL8111E,LAN1 支持 ASF 2.0 |
![](http://files.ieiworld.com/files/news/EN/ProductNews/KINO-HM551/images/dot_or.gif) |
I/O 接口 |
|
4 x RS-232 2 x RS-232/422/485 支持自动流控制 8 x USB 2.0 4 x SATA II 支持 2pcs DC 电源接口 1 x 6-pin header for KB/MS |
![](http://files.ieiworld.com/files/news/EN/ProductNews/KINO-HM551/images/dot_or.gif) |
TPM |
|
2 x 10-pin header |
![](http://files.ieiworld.com/files/news/EN/ProductNews/KINO-HM551/images/dot_or.gif) |
SMBus |
|
1 x 4-pin wafer 接口 | |
|
|
|
|
1 x KINO-HM551 single board computer |
1 x Dual RS-232 cable with bracket (P/N: 19800-000112-RS) |
1 x I/O shielding (P/N: 45014-0032C0-00-RS) |
2 x SATA with power cable kit (P/N: 32801-000100-100-RS) |
1 x Utility CD |
1 x QIG (Quick installation guide) |
1 x Mini jumper pack | |
|
|
|
型号 |
描述 |
KINO-HM551-R10 |
Mini-ITX SBC with Socket G1 for Intel® mobile Core i7/i5/i3 and Celeron® CPU, VGA/DVI/LVDS/HDMI, Dual PCIe GbE, USB 2.0, Dual PCIe Mini, SATA II and Audio, RoHS |
CB-USB02-RS |
Dual USB cable with bracket |
SAIDE-KIT01-R10 |
SATA to IDE/CF Converter board |
19800-000110-RS |
RS-232/422/485 cable with bracket |
32000-023800-RS |
KB/MS Y cable |
CF-989A-RS-R11 |
CPU cooler for mobile socket-G (PGA988) up to 55W processor, Copper, 60x60x27.6mm ,RoHS |
TPM-IN01-R11 |
20-pin INFINEON TPM Module, S/W management Tool, Firmware V3.17 | |
