威强推出多触电触摸平板电脑——IOVU-430M
[ Date: 2009-8-26 14:05:22]
|
特征 |
![](http://files.ieiworld.com/files/News/CN/ProductNews/IOVU-430M/20090728/images/dot.gif) |
架构处理器提供高性能、超低功耗 |
![](http://files.ieiworld.com/files/News/CN/ProductNews/IOVU-430M/20090728/images/dot.gif) |
4.3"宽屏 WQVGA TFT LCD支持预计电容触摸屏 |
![](http://files.ieiworld.com/files/News/CN/ProductNews/IOVU-430M/20090728/images/dot.gif) |
多触点功能提供灵活触摸控制 |
![](http://files.ieiworld.com/files/News/CN/ProductNews/IOVU-430M/20090728/images/dot.gif) |
塑料外壳紧凑型设计与无风扇系统 | |
![](http://files.ieiworld.com/files/News/CN/ProductNews/IOVU-430M/20090728/images/dot.gif) |
内置1.5w扬声器 |
![](http://files.ieiworld.com/files/News/CN/ProductNews/IOVU-430M/20090728/images/dot.gif) |
可购买内置802.11b/g WiFi 功能的机种 |
![](http://files.ieiworld.com/files/News/CN/ProductNews/IOVU-430M/20090728/images/dot.gif) |
CAN总线和GPIO提供灵活工业控制 |
![](http://files.ieiworld.com/files/News/CN/ProductNews/IOVU-430M/20090728/images/dot.gif) |
整机多点触摸屏且符合IP65 |
![](http://files.ieiworld.com/files/News/CN/ProductNews/IOVU-430M/20090728/images/dot.gif) |
Mini安全数字卡插槽支持存储扩展 | | |
|
|
规格 |
型号 |
IOVU-430M |
LCD 尺寸 |
4.3" |
****分辨率 |
480 x 272 |
亮度 (cd/m2) |
400 |
LCD 色度 |
262K |
像素间距 (mm) |
0.066(H) x 0.198(V) |
背光 MTBF |
10000 hrs |
触摸屏 |
预设电容式 |
CPU |
MARVELL XScale PXA270 416MHz |
RAM |
128MB SDRAM |
I/O 接口和开关 |
1 x RS-232/422/485 COM 端口 (软件可控制) 1 x 重启开关 1 x 10/100Mbps LAN 1 x USB1.1 host 1set CAn bus 6sets GPIO 2pin 接线端口DC输入 | |
引导存储 |
2MB boot ROM |
OS/程序存储 |
1GB Mini 安全数字卡 |
音频 |
1.5W 扬声器 x 2 |
材质 |
ABS + PC塑料 |
LED 功能 |
1 x 前面板电源开关LED |
安装方式 |
Wall, Stand, Vstand和Arm (VESA 50 x 50) |
前面板颜色 |
黑色 |
尺寸 (W x H x D mm) |
145 x 104 x 34 |
操作温度 (°C) |
-20°C ~ 60°C |
存储温度 (°C) |
-20°C ~ 80°C |
净重 (kg) |
0.7 |
IP 等级 (前面板) |
IP 65 |
电源需求 |
12~36V DC 输入 |
电源功耗 |
7W | | |
|
|

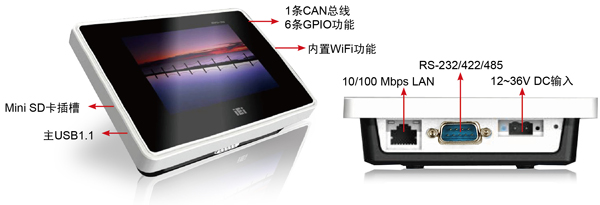

I/O接口 |
![](/UploadPic2/2009-8/20098261456509.jpg) |
|
|
订购信息 |
型号 |
描述 |
IOVU-430M-CE5/-R10 |
4.3" TFT, WQVGA, 262K color, Multi-touch Panel PC with built-in Windows® CE 5.0 license |
IOVU-430M-CE5/ST/-R10 |
4.3" TFT, WQVGA, 262K color, Single-touch Panel PC with built-in Windows CE 5.0 license |
IOVU-430M-CE5/MT/WL/-R10 |
4.3" TFT, WQVGA, 262K color, Multitouch Panel PC with built-in Windows CE 5.0 license and 802.11 b/g wireless LAN |
IOVU-430M-CE5/ST/WL/-R10 |
4.3" TFT, WQVGA, 262K color, Single-touch Panel PC with built-in Windows CE 5.0 license and 802.11 b/g wireless LAN | |
|
|
包装清单 |
1 x IOVU-430M |
1 x Screw kits |
1 x Null modem cable |
1 x Touch pen |
1 x Utility CD includes SDK, utilities, and technical document | |
|
|
可选配件 |
型号 |
描述 |
63000-FSP0601AD101C760-RS |
12V DC 60W power adapter with bare wire, 90~264V AC input | |
|
