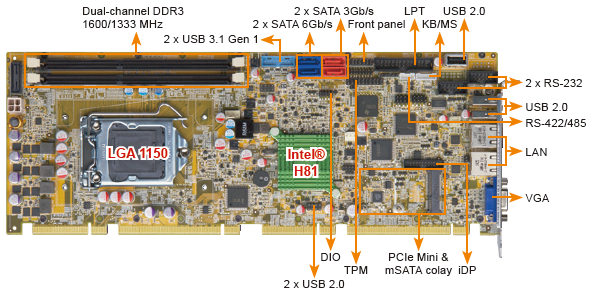

> 产品 > PICMG全长卡 > WSB-H810| ● Full-size PICMG 1.0 with LGA 1150 Intel® CPU |
|
● Two 1600/1333 MHz DDR3 SDRAM DIMM slots
support up to 16 GB of memory
|
|
● Dual Intel® Gigabit Ethernet LAN controller
|
|
● SATA 6Gb/s and USB 3.0 supported
|
|
● IEI One Key Recovery solution for rapid OS
backup and recovery
|
|
● TPM v1.2 hardware security function
supported by TPM module
|
|
● Stiffener bars
|
|
● IEI jumper-less function
|
产品规格
|
CPU
|
4th generation LGA 1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported |
|
Chipset
|
Intel® H81 |
|
Memory Max.
|
Twp 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs |
| support up to 16 GB | |
|
CPU Socket
|
LGA1150 |
|
Ethernet
|
LAN1: Intel® I217-LM Ethernet controller |
| LAN2: Intel® I211-AT Ethernet controller | |
|
Digital I/O
|
1 x 8-bit digital I/O (2x5 pin) |
|
Display
|
Dual independent display |
| VGA (up to 1920x1200@60 Hz) | |
| iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz) | |
|
Audio
|
7.1-channel HD Audio supported by IEI AC-KIT-892HD kit |
|
Power consumption
|
5V@3.4A, 12V@0.36A, Vcore_12V@7.48A, 3.3V@1.42A, 5VSB@0.13A |
| (Intel® Core™ i7-4770K 3.90 GHz CPU with 8 GB (two 4 GB) 1333 MHz DDR3 memory) | |
|
Operating Temperature
|
-20°C ~ 60°C |
|
Humidity
|
5% ~ 95%, non-condensing |
|
Storage
|
2 x SATA 6Gb/s |
| 1 x SATA 3Gb/s (Intel® H81 supports AHCI, no RAID) | |
|
Expansion Slots
|
1 x mSATA (SATA 3Gb/s) |
| 1 x PCIe Mini slot | |
| PCI and ISA signal via golden finger | |
|
Watchdog Timer
|
Software programmable supports 1~255 sec. system reset |
|
CPU Cooler
|
CF-1150SB-R11 |
| CF-1150SC-R20 | |
| CF-1150SE-R10 | |
| CF-1150SF-R10 | |
|
I/O Interface
|
4 x Internal RS-232 |
| 1 x Internal RS-422/485 | |
| 5 x Internal USB 2.0 | |
| 2 x Internal USB 3.0 | |
| 1 x KB/MS | |
| 2 x LAN LED | |
| 1 x LPT | |
| 2 x USB 2.0 | |
| 1 x VGA |
订购信息
| WSB-H810-R10 | Full-size PICMG 1.0 CPU card supports LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® H81, DDR3, VGA/iDP, Dual Intel GbE, USB 3.0, SATA 6Gb/s, PCIe Mini, mSATA, RS-232, HD Audio and RoHS |
