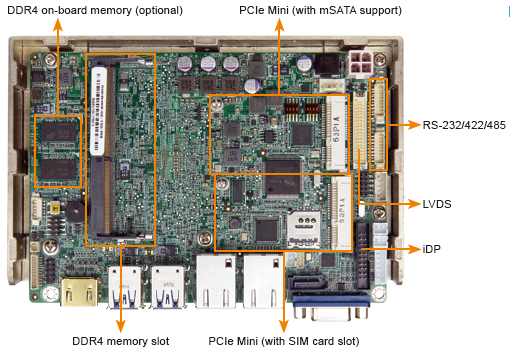

> 产品 > 3.5" WAFER系列主板 > WAFER-ULT3| ● 3.5” SBC with Intel® 6th Generation ULT processor supports DDR4 SO-DIMM (on-board memory support by request) |
|
● Triple display with VGA/iDP, HDMI and LVDS
selection
|
|
● Two PCIe Mini with mSATA/SIM card slot
support
|
|
● Intel® GbE LAN with Intel® AMT 11.0
supported
|
|
● IEI One Key Recovery solution allows you to
create rapid OS backup and recovery
|
产品规格
|
CPU
|
6th generation Intel® mobile ULT processor |
| Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W) | |
| Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W) | |
| Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W) | |
| Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W) | |
| Intel® Celeron® processor 3855U (up to 1.6GHz, dual-core, 2MB cache, TDP=15W) | |
|
Memory Max.
|
1 x 260-pin 2133MHz DDR4 SDRAM SO-DIMM (channel 1, supports up to 16GB) |
| On-board 4GB/8GB DDR4 memory (channel 2, optional support by request) | |
|
Ethernet
|
1 x Intel® I219LM |
| 1 x Intel® I211AT | |
|
Digital I/O
|
1 x 8-bit digital I/O (2x5 pin) |
|
Display
|
Triple independent display |
| 1 x VGA (up to 1920x1200@60Hz) | |
| 1 x HDMI (up to 4096x2160@30Hz) | |
| 1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz) | |
| 1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (co-layout with VGA) | |
|
Audio
|
1 x HD audio (2x5 pin, supports 7.1-channel HD audio by AC-KIT-892HD-R10) |
|
Expansion
|
1 x Full-size PCIe Mini slot (w/ SATA signal, supports mSATA) |
| 1 x Full-size PCIe Mini slot (w/ SIM card slot support) | |
| *3855U belongs to Skylake ULT Base series which supports PCIe Gen 2 signal only. | |
|
Power consumption
|
12V@4.27A (Intel® Core™ i7-6600U up to 3.4GHz CPU with 16GB 2133MHz DDR4 |
| memory running in 3.0GHz) | |
|
Power Supply
|
12V only DC input |
| 1 x Internal power connector (2x2 pin, or optional terminal block) | |
|
Operating Temperature
|
-20°C ~ 60°C |
|
Safety & EMC
|
CE/FCC compliant |
|
Humidity
|
5% ~ 95%, non-condensing |
|
Storage Temperature
|
-20°C ~ 60°C |
|
Dimensions
|
146mm x 102mm |
|
Weight
|
GW: 600g / NW: 250g |
|
Watchdog Timer
|
Software programmable, supports 1~255 sec. system reset |
|
I/O Interface
|
4 x USB 3.0 (External I/O) |
| 2 x Internal USB 2.0 (2x4 pin, P=2.0) | |
| 2 x Internal RS-232/422/485 (1x9 pin, P=1.25) | |
| 1 x SMBus (1x4 pin, P=2.0) | |
| 1 x SATA 6Gb/s (6Gb/s with 5V SATA power connector) |
订购信息
| WAFER-ULT3-C-R10 | 3.5" SBC supports Intel® 6th Generation ULT Celeron® 3955U processor with DDR4 SO-DIMM, triple display with VGA/iDP, HDMI, LVDS, Dual GbE, PCIe mini with SIM card slot/mSATA support, SATA 6Gb/s, COM, and RoHS |
| WAFER-ULT3-i3-R10 | 3.5" SBC supports Intel® 6th Generation ULT Core™ i3-6100U processor with DDR4 SO-DIMM, triple display with VGA/iDP, HDMI, LVDS, Dual GbE, PCIe mini with SIM card slot/mSATA support, SATA 6Gb/s, COM, and RoHS |
| WAFER-ULT3-i7-R10 | 3.5" SBC supports Intel® 6th Generation ULT Core™ i7-6600U processor with DDR4 SO-DIMM, triple display with VGA/iDP, HDMI, LVDS, Dual GbE, PCIe mini with SIM card slot/mSATA support, SATA 6Gb/s, COM, and RoHS |
| WAFER-ULT3-i5-R10 | 3.5" SBC supports Intel® 6th Generation ULT Core™ i5-6300U processor with DDR4 SO-DIMM, triple display with VGA/iDP, HDMI, LVDS, Dual GbE, PCIe mini with SIM card slot/mSATA support, SATA 6Gb/s, COM, and RoHS |
| WAFER-ULT3-CE-R10 | 3.5" SBC supports Intel® 6th Generation ULT Celeron® 3855U processor with DDR4 SO-DIMM, triple display with VGA/iDP, HDMI, LVDS, Dual GbE, PCIe mini with SIM card slot/mSATA support, SATA 6Gb/s, COM, and RoHS |
