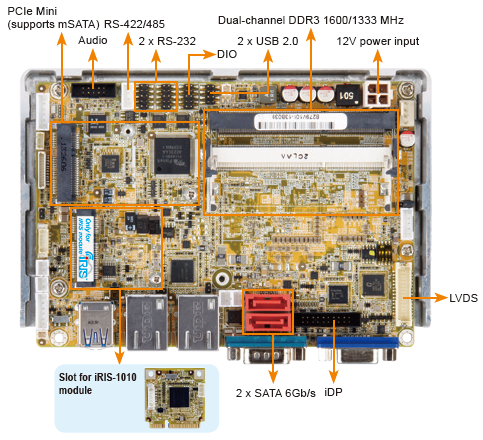

> 产品 > 3.5" WAFER系列主板 > WAFER-ULT2| ● 3.5"" form fator with 4th/5th generation Intel® ULT SoC supports dual-channel DDR3L DIMMs |
|
● 12V only single voltage design with AT/ATX
mode support
|
|
● 18/24-bit dual-channel LVDS support
|
|
● Support triple independent display via
LVDS, VGA and iDP
|
|
● Support PCIe Mini card slot for mSATA, 3G
card, wireless card and DOM
|
产品规格
|
Display
|
Triple independent display |
| VGA (up to 2560x1600@60 Hz) | |
| 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz) | |
|
CPU
|
» 5th generation Intel® mobile ULT on-board SoC |
| Intel® Core™ i7-5650U (2.2GHz, dual-core, 4MB cache, TDP=15W) | |
| Intel® Core™ i5-5350U (1.8GHz, dual-core, 3MB cache, TDP=15W) | |
| Intel® Core™ i3-5010U (2.1GHz, dual-core, 3MB cache, TDP=15W) | |
| Intel® Celeron® processor 3765U (1.9GHz, dual-core, 2MB cache, TDP=15W) | |
| » 4th generation Intel® mobile ULT on-board SoC | |
| Intel® Core™ i7-4650U (1.7GHz, dual-core, 4MB cache, TDP=15W) | |
| Intel® Core™ i5-4300U (1.9GHz, dual-core, 3MB cache, TDP=15W) | |
| Intel® Core™ i3-4010U (1.7GHz, dual-core, 3MB cache, TDP=15W) | |
| Intel® Celeron® processor 2980U (1.6GHz, dual-core, 2MB cache, TDP=15W) | |
|
Memory Max.
|
Two 204-pin 1600/1333 MHz dual-channel DDR3L SDRAM SO-DIMM slots |
| support up to 16 GB | |
|
Ethernet
|
LAN1: Intel® I218LM PHY with IntelR AMT 9.0 support |
| LAN2: Intel® I210-AT PCIe controller with NCSI support | |
|
Digital I/O
|
1 x 8-bit digital I/O (2x5 pin) |
|
Audio
|
Realtek ALC662 HD Audio codec |
| 1 x Analog audio (2x5 pin) | |
|
Power consumption
|
12V@2.72A (Intel® Core™ i5-4300U CPU with two 8 GB 1600 MHz DDR3 memory) |
|
Operating Temperature
|
-10°C ~ 60°C |
|
Humidity
|
5% ~ 95%, non-condensing |
|
iRIS
|
1 x iRIS-1010 slot |
|
Storage
|
2 x SATA 6Gb/s with 5V power connector (RAID 0, 1) |
|
Expansion Slots
|
1 x Full-size PCIe Mini card slot (mSATA support) |
|
Watchdog Timer
|
Software programmable, support 1~255 sec. system reset |
|
CPU Cooler
|
N/A |
|
I/O Interface
|
3 x Internal RS-232 |
| 2 x USB 3.0 | |
| 3 x RS-232 | |
| 2 x USB 2.0 | |
订购信息
| WAFER-ULT2-i1-i7-R11 | 3.5" SBC with Intel 14nm 5th Gen ULT Mobile Core i7-5650U processor(ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS |
| WAFER-ULT2-i1-i3-R11 | 3.5" SBC with Intel 14nm 5th Gen ULT Mobile Core i3-5010U processor(ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS |
| WAFER-ULT2-i1-C-R11 | 3.5" SBC with Intel 14nm 5th Gen ULT Mobile Celeron 3765U processor(ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS |
| WAFER-ULT2-i1-i5-R11 | 3.5" SBC with Intel 14nm 5th Gen ULT Mobile Core i5-5350U processor(ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS |
