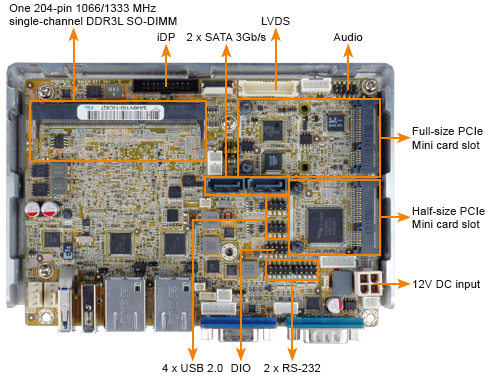

> 产品 > 3.5" WAFER系列主板 > WAFER-BT| ● 3.5” SBC 支持 Intel® 22nm Atom™ 板载 SoC |
|
● 支持独立双显
|
|
● 1333/1066 MHz 1.35V DDR3L SDRAM 高达 8 GB
|
|
● 支持 COM, USB 3.0, SATA 3Gb/s, PCIe Mini,
mSATA 和音频
|
|
● IEI 一键恢复解决方案 您可以快速创建操作系统备份和恢复
|
产品规格
|
Display
| 支持双显示 |
| 1 x VGA (分辨率: 2560x1600@60Hz) | |
| 1 x 双通道 24bit LVDS 连接器 | |
| (1920x1200@60Hz) | |
| 1 x iDP 接口 用于 HDMI, LVDS, VGA, DVI, DP (高达 2560x1600@60Hz) | |
|
CPU
| Intel® Atom™, Celeron® SoC |
|
Chipset
| Intel® Atom™/Celeron® 板载 SoC |
|
Memory Max.
| 一个 204-pin 1066/1333 MHz 单通道 DDR3L SO-DIMM 插槽 |
| 最高支持 8 GB (J1900, N2930, E3845, E3827, E3826) 或 4 GB (N2807, E3825, E3815) | |
|
Ethernet
| LAN1: IntelR I210-AT PCIe 控制器，带 NCSI 支持 |
| LAN2: IntelR I211-AT PCIe 控制器 | |
|
Digital I/O
| 8-bit 数字 I/O (4-bit 输入 / 4-bit 输出) |
|
Audio
| Realtek ALC662 HD 音频编解码器 |
|
I/O Interface
| 3 x RS-232 |
| 1 x RS-422/485 | |
| 1 x USB 3.0 | |
| 5 x USB 2.0 | |
| 1 x PS/2 KB/MS | |
|
Power consumption
| 12V@1.45A (IntelR CeleronR 处理器 J1900 CPU, 具有 8GB 1333 MHz DDR3L 内存) |
|
Operating Temperature
| -20¢XC ~ 60¢XC |
|
Humidity
| 5% ~ 95%, 无冷凝 |
|
Storage
| 2 x SATA 3Gb/s 具有 5V SATA 电源连接器 (无 RAID) |
|
Expansion Slots
| 1 x 全尺寸 PCIe 迷你卡插槽 (支持 mSATA co-lay SATA 端口 2) |
| 1 x 半尺寸 PCIe 迷你卡插槽 | |
|
Watchdog Timer
| 软件可编程并支持 1~255 秒 系统复位 |
|
CPU Cooler
| N/A |
|
I/O Interface
| 3 x RS-232 |
| 5 x USB 2.0 | |
| 1 x USB 3.0 | |
| 4 x 内置 USB 2.0 | |
| 2 x 内置 RS-232 | |
| 1 x RS-422/485 |
订购信息
| WAFER-BT-J19001-ECO-R20 | 3.5" SBC supports Intel® 22nm Quad-Core Celeron™ J1900 2.0GHz (10W)on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio, ECO packing and RoHS |
| WAFER-BT-J19001-R20 | 3.5" SBC supports Intel® 22nm Quad-Core Celeron™ J1900 2.0GHz (10W)on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS |
| WAFER-BT-N28071-R20 | 3.5" SBC supports Intel® 22nm Dual-Core Celeron™ N2807 1.58GHz (4.5W) on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS |
| WAFER-BT-N29301-R20 | 3.5" SBC supports Intel® 22nm Quad-Core Celeron™ N2920 1.86GHz (7.5W) on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS |
