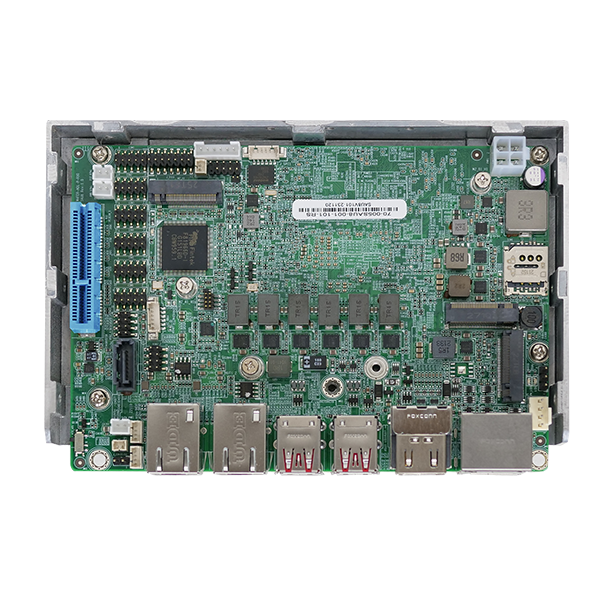

WAFER-ADL-P

Enlarge image
3.5 SBC 支持 Intel Alder Lake-P/Raptor Lake-P Core i7/i5/i3 和 Celeron 处理器，板载 8GB LPDDR4x 内存。具有DP、HDMI、双2.5GbE、USB 3.2 gen 2、M.2、SATA 6Gb/s、COM、PCIe x4 槽，符合RoHS

Datasheet (PDF)    Download (Deriver/BIOS/Manual/QIG)



产品特征 产品特征

» 支持 12/13代 Intel® mobile Alder Lake-P/Raptor Lake-P 板载 SoC
» 板载 LPDDR4x 3200 MHz 8GB内存，内存上限为 32GB
» 支持两路 HDMI™、两路 DP，四路独立显示
» 支持 PCIe X4、M.2 M key、M.2 B key和M.2 A key扩展
» 支持两个 2.5GbE 网口，使用 Intel® I225V/I226V 网络芯片

产品规格 产品规格

CPU12th/13th Gen. Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC
内存板载LPDDR4x-3200 MHz 8GB，内存上限为 32GB
内存上限32GB
网络2 x LAN - LAN1: Intel® I225V/I226V 2.5GbE controller LAN2: Intel® I225V/I226V 2.5GbE controller
显示输出2 x HDMI™: 高达 4096x2160 @ 30Hz
2 x Display Port: 高达 4096 x 2160 @60Hz
音频1 x HD Audio: 1 x iAUDIO, 支持 IEI AC-KIT-888S 音频模块 (2x5 pin)
I/O接口4 x 内部RS-232: 2x5 pin, P=2.0
2 x 内部RS-232/422/485: 2x5 pin, P=2.0
4 x 内部 USB 2.0: 2x4 pin, P=2.0
4 x 外部 USB 3.2 Gen2x1: 10Gb/s(Type A)
存储1 x SATA: 6Gb/s
1 x M.2(NGFF): M.2 M Key 2242/2280 (PCIe Gen3 x4)
扩展1 x PCIe x4: PCIe Gen3 x4 (x4 & x2+x2)
3 x M.2(NGFF) - 1 x M.2 A Key 2230 for WIFI & BT (PCIe Gen3 x 1 & USB 2.0) 1 x M.2 M Key 2242/2280 (PCIe Gen3 x4) 1 x M.2 B Key 3042 (PCIe x2 & USB 2.0) 1 x On-board SIM card socket (hinge type) for M.2 B key
电源供电ATX/AT电源
支持AT/ATX模式
符合 ErP/EuP
电源功耗12V@2.83A (第 12 代 Intel® Core™ i7-1265UE CPU，8 GB 3200 MHz LPDDR4x 内存，最大值加载，启用 EuP 模式)
操作温度-10°C ~ 60°C
存储温度-30°C ~ 70°C
Humidity5% ~95%, 无冷凝
尺寸 (LxWxH) (mm)146mm x 102mm
净重350g
尺寸类型3.5〞 SBC

订购信息 订购信息

WAFER-ADL-P-i7C-R103.5 SBC supports Intel® Alder Lake-P Core™ i7-1255U Proccessor，with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS
WAFER-ADL-P-i5C-R103.5 SBC supports Intel® Alder Lake-P Core™ i5-1235U Proccessor，with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS
WAFER-ADL-P-i3C-R103.5 SBC supports Intel® Alder Lake-P Core™ i3-1215U Proccessor，with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS
WAFER-ADL-P-CC-R103.5 SBC supports Intel® Alder Lake-P Celeron® 7305 SoC Processor，with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS
