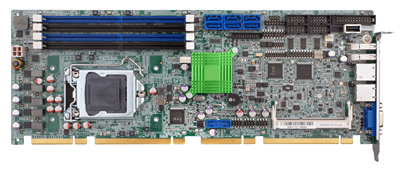

> 产品 > PICMG全长卡 > SPCIE-C236● PICMG 1.3 full-size CPU Card
● LGA 1151 Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor supported
● Four 288-pin 1867/2133MHz DDR4 ECC & non-ECC unbuffered DIMM
● Supports dual independent display by VGA & internal DP pin header
● Supports mini-PCIe device & mSATA via mini-PCIe socket
● Intel® PCIe GbE with Intel® AMT 11.0 supported
● Supports RAID 0, 1, 5, 10 function via SATA 6Gb/s
● TPM 1.2 & 2.0 hardware security function supported by TPM module
产品规格
| CPU | LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor |
| Chipset | Intel® C236 |
| Memory Max. | Four 288-pin 1867/2133MHz Dual-Channel DDR4 ECC & non-ECC unbuffered DIMM supported up to 64GB |
| Ethernet | LAN1: Intel® I219LM Clarkville-V with Intel® AMT 11.0 supported |
| LAN2: Intel® I210 PCIe controller | |
| Digital I/O | 8-bit digital I/O |
| Expansion | 16-lane PCIe link from CPU via golden finger: |
| Supports one PCIe x16, or two PCIe x8, or one PCIe x8 + two PCIe x4 on the backplane | |
| (configured via BIOS) | |
| 4-lane PCIe link from PCH via golden finger: | |
| Supports four PCIe x1 slots or one PCIe x4 slot on the backplane (configured via BIOS | |
| switch) | |
| One PCIe Mini | |
| Power consumption | 5V@3.22A, 12V@6.81A, 3.3V@1.21A, 5VSB@0.18A |
| (Intel® Xeon® E3-1275 v5 3.60 GHz CPU with 64GB (16GBx4) 2133 MHz DDR4 memory) | |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 5% ~ 95%, non-condensing |
| iRIS | 1 x iRIS-2400 slot (optional) |
| Dimensions | 338 mm x 126 mm |
| Weight | 1000g / NW: 420g |
| I/O Interface | 6 x SATA 6Gb/s |
| 2 x Internal RS-232 | |
| 2 x Internal RS-232/422/485 | |
| 1 x KB/MS((1 x 6Pin Wafer)) | |
| 7 x Internal USB 2.0((1 type A 180°, 6 by pin header)) | |
| 1 x LPT | |
| 2 x Internal USB 3.0((19 Pin BOX HEADER)) |
| SPCIE-C236-R10 | Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® E3-1200/Core™ i3/Pentium®/Celeron® CPU per Intel® C236, DDR4, VGA/IDP, Dual Intel® PCIe GbE, USB3.0, SATA 6Gb/s, PCIe mini, mSATA, HD Audio, iAMT and RoHS |
包装清单
1 x SPCIE-C236 single board computer
1 x SATA cable
1 x QIG (Quick Installation Guide)
1 x Mini jumper pack
1 x Utility CD
