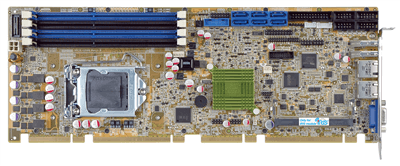

SPCIE-C2260-i2
Full-size PICMG 1.3 CPU Card supports LGA 1150 Intel® Xeon® E3, Core™ i3, Pentium® and Celeron® with Intel® C226, DDR3




产品特征 产品特征

● PICMG 1.3 full-size server grade solution
● LGA 1150 Intel® Xeon® E3, Core™ i3, Pentium® or Celeron® processor supported
● Four 240-pin 1600/1333 MHz dual-channel DDR3 DIMMs support up to 32 GB
● Supports dual independent display by VGA and iDP interfaces
● Supports PCIe Mini devices and mSATA via PCIe Mini socket
● Intel® PCIe GbE with Intel® AMT 9.0 support
● Supports RAID function via SATA 6Gb/s
● TPM V1.2 hardware security function supported by TPM module
● Stiffener bars
● IEI jumper-less function
● Supports IPMI 2.0 via iRIS-2400 module

产品规格 产品规格

CPULGA 1150 Intel® Xeon® E3, Core™ i3, Pentium® or Celeron® processor supported
ChipsetIntel® C226
Memory Max.Four 240-pin 1600/1333MHz dualchannel
DDR3 & DDR3L SDRAM
unbuffered DIMMs (system max. 32GB)
CPU SocketLGA1150
EthernetLAN1: Intel® I217LM with Intel® AMT
9.0 support
LAN2: Intel® I210-AT PCIe controller
with NCSI support
Digital I/O8-bit Digital I/O
DisplayDual display supported
1 x VGA
1 x iDP interface
AudioSupports by IEI AC-KIT-892HD audio kit
Power consumption5V@3.55A, 12V@0.37A,
Vcore_12V@7.61A, 3.3V@1.55A,
5VSB@0.13A
(Intel® E3-1240 v3 3.4GHz CPU
with 16GB (4x4GB) 1333MHz DDR3
memory)
Operating Temperature-20oC ~ 60oC (-4°F ~ 140°F)
Humidity5% ~ 95% non-condensing
iRIS1 x iRIS-2400 slot
Storage1 x mSATA (colay SATA port 6) (support
SATA 6GB/s signal only)
6 x SATA 6GB/s (RAID 0, 1, 5, 10
supported)
Expansion SlotsPCIe Mini slot
Watchdog TimerSoftware programmable and supports 1~255 sec. system reset
CPU CoolerCF-1150SB-R11
CF-1150SC-RS
CF-1150SD-RS
I/O Interface2 x LAN LED
1 x KB/MS
2 x Internal USB 3.0
4 x Internal USB 2.0
1 x Internal RS-485
2 x USB 3.0
4 x Internal RS-232
1 x Internal Display
1 x I2C
2 x Ethernet
1 x LPT
1 x Internal RS-422

订购信息 订购信息

SPCIE-C2260-i2-R10Full-size PICMG 1.3 CPU Card supports LGA1150 Intel Xeon E3/Core™ i3/Pentium and Celeron per Intel C226,DDR3,VGA,IDP,Dual Intel PCIe GbE,SATA III,mSATA, mini PCIe,RS-232,HD Audio, iRIS-2400 and RoHS

订购信息 包装清单

1 x SPCIE-C2260-i2 single board computer
1 x Dual RS-232 cable (P/N: 19800-000051-RS)
1 x USB 2.0 cable (P/N: 19800-003100-300-RS) 1 x QIG (Quick Installation Guide)
2 x SATA cable (P/N: 32000-062800-RS) 1 x Utility CD
