 产品规格 |
| |
| CPU |
LGA1155 socket supports Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor |
| BIOS |
UEFI |
| System Memory |
One 204-pin 1333/1066MHz DDR3 & DDR3L (1.35V) SO-DIMM supported (system max. 8GB) |
| Ethernet |
Dual Realtek RTL8111E PCIe GbE controller, LAN1 with ASF 2.0 support |
| I/O Interface |
2 x RS-232; 4 x USB 2.0 (2 on rear, 2 by pin header); 1 x SATA 3Gb/s; 1 x SATA 6Gb/s; 1 x 6-pin wafer for KB & MS |
| Super I/O |
Fintek F81866 |
| Expansion |
PCIe signal and PCI signal via golden finger |
| Watchdog Timer |
Software programmable supports 1~255 sec. system reset |
| Power Supply |
5V/12V, AT/ATX support |
| Power Consumption |
5V@3.17A, 12V@0.46A, Vcore_12V@7.26A, 5VSB@0.18A (3.4GHz Intel® Core™ i7-2600K with two 2GB 1333MHz DDR3 memory) |
| Audio Processing |
Supports 7.1 channel HD audio by IEI AC-KIT-888HD kit |
| Graphic |
Intel® HD Graphics Gen 6 supports for DX10.1 and OpenGL 3.0 Full MPEG2, VC1, AVC Decode |
| Temperature |
-10°C ~ 60°C |
| Humidity |
5% ~95%, non-condensing |
| Dimensions |
185 mm x 122 mm |
| Weight |
GW: 1000g/NW: 260g |
| I2C |
1 x 4-pin wafer |
| Fan Connector |
1 x 4-pin smart Fan Connector; 1 x 3-pin system Fan Connector | | |
 订购信息 |
| |
| 产品名称 |
描述 |

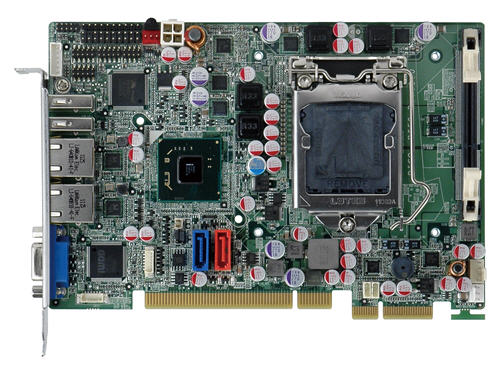

| PICOe-B650-R10 |
Half-size PCIe CPU card supports 32nm LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® B65, DDR3, VGA, dual Realtek PCIe GbE, USB 2.0, SATA 6Gb/s, HD Audio and RoHS |
| 19800-000075-RS |
PS/2 KB/MS Y-cable with bracket, 220mm |
| SAIDE-KIT01-R10 |
SATA to IDE/CF converter board |
| 32102-000100-200-RS |
SATA power cable |
| AC-KIT-888HD-R10 |
7.1 channel HD audio kit with Realtek ALC888 supports dual audio streams |
| TPM-IN01-R11 |
20-pin Infineon TPM module, software management tool, firmware V3.17 |
| CPU-I5-2500T |
Intel® Core™ i5-2500T processor, LGA-1155, quad core 2.3GHz, 6M cache, 45W, compatible with CF-1156C-RS CPU cooler |
| CPU-I5-2390T |
Intel® Core™ i5-2390T processor, LGA-1155, dual core 2.7GHz, 3M cache, 35W, AMT, compatible with CF-1156C-RS CPU cooler |
| CPU-I3-2100T |
Intel® Core™ i3-2100T processor, LGA-1155, dual core 2.5GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler |
| CPU-P-G620T |
Intel® Pentium® G620T processor, LGA-1155, dual core 2.2GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler |
| CPU-C-G440 |
Intel® Celeron® G440 processor, LGA-1155, single core 1.6GHz, 1M cache, 35W, compatible with CF-1156C-RS CPU cooler |
| CF-1156A-RS |
High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W |
| CF-1156B-RS |
High-performance LGA1155/LGA1156 cooler kit, 95W |
| CF-1156C-RS |
LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W |
| CF-1156D-RS |
LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W | | |
