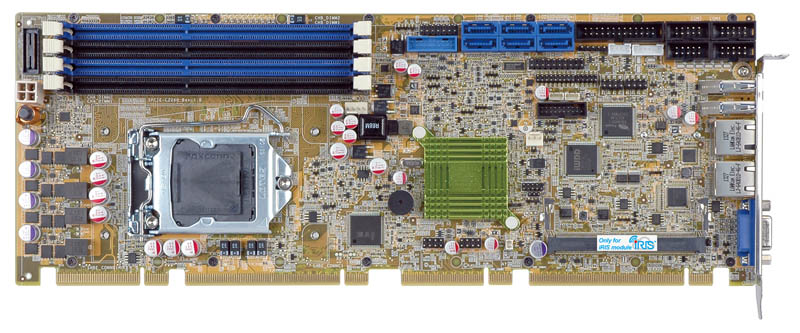

 产品特征 | | | 1. PICMG 1.3 全尺寸图形级解决方案
2. 支持 LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® 或 Celeron® 处理器
3. 4 个 240-pin 1600/1333MHz 双通道 DDR3 DIMM 内存支持高达 32GB
4. 支持独立双显，VGA & iDP 接口
5. 支持 PCIe Mini 设备和 mSATA via PCIe Mini socket
6. Intel® PCIe GbE 和 Intel® AMT 9.0 支持
7. 通过 SATA 6Gb/s 支持 RAID 功能
8. 通过 TPM 模块支持 TPM V1.2 硬件安全功能
9. 加劲板
10.威强电免跳线功能
11.通过 iRIS-2400 模块支持 IPMI 2.0 |
|
| |
| 产品规格 | | | | CPU | 支持 LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® 或 Celeron® 处理器 | | PCH | Intel® Q87 | | BIOS | UEFI BIOS | | 内存 | 4 个 240-pin 1600/1333MHz 双通道 DDR3 & DDR3L SDRAM 无缓冲 DIMM 支持 32GB | | 以太网 | GbE1: Intel® I217LM 和 Intel® AMT 9.0 支持
GbE2:NCSI 支持 Intel® I210-AT PCIe 控制器 | | I/O接口 | 4 x RS-232
1 x RS-422/485
1 x LPT
1 x 6-pin wafer for KB/MS
1 x mSATA (colay SATA port 6) (仅支持 SATA 6GB/s 信号)
6 x SATA 6GB/s (支持 RAID 0, 1, 5, 10 )
8 x USB 2.0 (4 by pin header, 4 by backplane pin header)
4 x USB 3.0 (2 by rear IO, 2 by pin header) | | 数字I/O | 8-bit 数字 I/O (4-bit 输入, 4-bit 输出) | | Super I/O | Fintek F81866 | | 红外连接器 | 1 x 5-pin pin header | | TPM | 1 x 20-pin (2x10) header | | SMBus | 1 x 4-pin wafer | | 音频 | IEI AC-KIT-892HD 音频设备 | | 显示接口 | VGA (可达1920x1200 @ 60 Hz)
iDP 接口 for HDMI, LVDS, VGA, DVI, DP (可达 3840x2160 @60 Hz) | | LAN | 2 x 2 Pin for LAN1 LED, LAN2 LED (Active) | | 扩展槽 | PCIe 信号和 PCI 信号通过金手指信号
PCI signal by ITE 8892 (PCIe to PCI bridge)
1 x 全长 PCIe Mini 卡插槽 (colay mSATA) | | 看门狗定时器 | 软件可编程支持 1~255 秒系统复位 | | 电源 | 5V/12V, 支持 AT/ATX | | 风扇 | 1 x 4-pin 智能风扇接口 (CPU 风扇)
1 x 4-pin 智能风扇接口 (系统风扇) | | 功耗 | 5V@3.55A, 12V@0.37A, Vcore_12V@7.61A, 3.3V@1.55A, 5VSB@0.13A (Intel® Core™ i7-4770K 3.90 GHz CPU with 16GB (4x4GB) 1333MHz DDR3 memory) | | 图形 | Intel® HD Graphics Gen 7.5 支持 DX11.1 和 OpenCL 1.2, OpenGL 3.2 Full MPEG2, VC1, AVC 解码 | | 工作温度 | -20°C ~ 60°C | | 相对湿度 | 5% ~ 95%, 无冷凝 | | 尺寸 | 338 mm x 126 mm | | 重量 | GW: 1200g / NW: 420g | | Front Panel | 1 x 前面板(电源 LED, HDD LED, 扬声器, 电源按钮, 复位按钮) | | I2C | 1 x 4-pin wafer | | iRIS Remote Management Module | 1 x iRIS-2400 插槽 | | LAN LED | 2 x 2-pin headers for LAN1 Link LED, LAN2 Link LED |
|
|
| |
| 订购信息 | | | | 产品名称 | 描述 | | PCIE-Q870-i2-R10 | Full-size PICMG 1.3 CPU card supports LGA1150 Intel® Core™ i7/i5/i3/Pentium® and Celeron® CPU per Intel® Q87, DDR3, VGA, IDP, Dual Intel® PCIe GbE, SATA 6Gb/s, mSATA, RS-232, mini PCIe, Audio, iRIS-2400 and RoHS | | iRIS-2400-R10 | IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SODIMM socket interface | | 32200-074800-RS | RS-422/485 cable, 200mm | | 19800-000075-RS | KB/MS cable with Bracket | | 19800-010500-100-RS | USB 3.0 cable 457mm with bracket | | 32102-000100-200-RS | SATA Power Cable, MOLEX 5264-4P to SATA15P | | 32200-015100-RS | LPT Cable | | AC-KIT-892HD-R10 | 7.1 channel HD Audio kit with Realtek ALC892 support dual audio streams | | CF-1150SA-RS | Special cooler kit for LGA1150, High-performance compatible, 95W | | CF-1150SB-RS | Special cooler kit for LGA1150, High-performance compatible, 65W | | CF-1150SC-RS | Special cooler kit for LGA1150, 1U chassis compatible, 65W | | DP-DVI-R10 | DisplayPort to DVI-D converter board (For iEi IDP connector) | | DP-HDMI-R10 | DisplayPort to HDMI converter board (For iEi IDP connector) | | DP-LVDS-R10 | DisplayPort to LVDS converter board (For iEi IDP connector) | | DP-VGA-R10 | DisplayPort to VGA converter board (For iEi IDP connector) | | DP-DP-R10 | DisplayPort to DisplayPort converter board (For iEi IDP connector) | | TPM-IN01-R11 | 20-pin Infineon TPM module, software management tool, firmware V3.17 |
|
|
| |
| 包装清单 | | | | 1 * PCIE-Q870-i2 Single Board Computer | 1 * Dual RS-232 Cable (P/N:19800-000051-RS) | | 4 * SATA Cable (P/N:32000-0628000-RS) | 1 * USB Cable (P/N:19800-003100-100-RS) | | 1 * Utility CD | 1 * QIG (Quick Installation Guide) |
|
|
