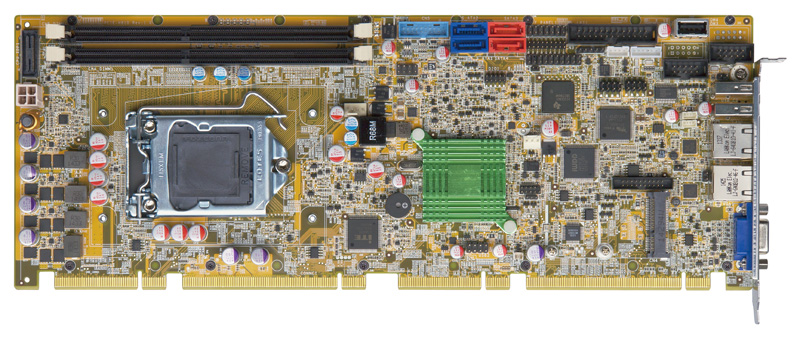

PCIE-H810

Enlarge image
全长 PICMG 1.3 CPU 卡支持 LGA1150 Intel® Core™ i7/i5/i3, Pentium® 和 Celeron® per Intel® H81, DDR3, VGA, iDP, Dual PCIe GbE, SATA 6Gb/s, mSATA, USB 3.0, RS-232, HD 音频，符合 RoHS

   Download (Deriver/BIOS/Manual/QIG)


产品特征 产品特征
 1. PICMG 1.3 全长解决方案
2. 支持 4th generation LGA1150 Intel® Core™ i7/i5/i3, Pentium® 或 Celeron® 处理器
3. 2 个 DDR3 1600/1333 MHz DIMM SDRAM 支持 16GB
4. 支持 Dual Realtek PCIe GbE
5. TPM 模组支持 TPM V1.2 硬件安全功能
6. 威强电一见恢复解决方案可快速创建系统备份和恢复
7. Stiffener bars
8. 威强电免跳线功能

产品规格 产品规格

CPU支持 4th generation LGA1150 Intel® Core™ i7/i5/i3, Pentium® 或 Celeron® 处理器
BIOSUEFI Graphics
内存2 个 240-pin 1600/1333MHz 双通道 DDR3 & DDR3L SDRAM 无缓冲 DIMMs 支持 16GB
以太网支持 Dual Realtek RTL8111E PCIe GbE 控制器
I/O接口1 x IR (1x5 pin)
1 x KB/MS (1x6 pin)
1 x LPT (2x13 pin)
1 x RS-422/485 (1x4 pin)
2 x RS-232 (2x5 pin, P=2.54)
2 x SATA 6Gb/s, 2 x SATA 3Gb/s (H81 supports AHCI, no RAID)
1 x USB 2.0 (180 degree type A)
4 x USB 2.0 (2x4 pin, P=2.54)
4 x USB 2.0 (signal to backplane)
2 x USB 3.0 (2x10 pin)
数字I/O1 x 8-bit 数字 I/O (2x5 pin)
SMBus1 x SMBus (1x4 pin)
音频支持 7.1 通道 HD Audio by IEI AC-KIT-892HD kit
扩展槽1 x PCIe 连接器 ( PCIe Mini & mSATA colay)
1 个 PCIe x16 & four PCIe x1 signal via golden finger
PCI signal and ISA signal via golden finger
PCI signal by ITE IT 8892 (PCIe to PCI bridge)
看门狗定时器软件可编程支持 1~255 秒系统复位
电源5V/12V,支持 AT/ATX
风扇1 x CPU 智能风扇 (1x4 pin)
1 x 系统智能风扇 (1x3 pin)
功耗5V@3.41A, 12V@0.35A, Vcore_12V@7.52A, 3.3V@1.41A, 5VSB@0.12A
(Intel® Core™ i7-4770K 3.90 GHz CPU with 8GB (two 4GB) 1333MHz DDR3 memory)
工作温度-20°C ~ 60°C
相对湿度5% ~ 95%, 无冷凝
尺寸338 mm x 126 mm
重量GW: 1000g / NW: 260g

订购信息 订购信息

产品名称描述
PCIE-H810-R10Full-size PICMG 1.3 CPU Card supports LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® per Intel® H81, DDR3, VGA, iDP, Dual PCIe GbE, SATA 6Gb/s, mSATA, USB 3.0, RS-232, HD Audio and RoHS
19800-000051-RSDual RS-232 cable, 230mm, P=2.54
32205-003800-300-RSRS-422/485 cable, 200mm
19800-003100-300-RSUSB 2.0 cable, 300mm, P=2.54
19800-010500-200-RSUSB 3.0 cable 457mm with bracket
19800-000075-RSKB/MS cable with bracket
32102-000100-200-RSSATA power cable, MOLEX 5264-4P to SATA15P
32200-015100-RSLPT flat cable 28CM
CF-1150SE-R10Special cooler kit for LGA1150, high-performance compatible, 95W
CF-1150SC-R10Special cooler kit for LGA1150, 1U chassis compatible, 65W
CF-1150SB-R11Special cooler kit for LGA1150, high-performance compatible, 65W
CF-1150SF-R10Special cooler kit for LGA1150, high-performance compatible, 54W
DP-DVI-R10DisplayPort to DVI-D converter board (for IEI iDP connector)
DP-HDMI-R10DisplayPort to HDMI converter board (for IEI iDP connector)
DP-LVDS-R10DisplayPort to LVDS converter board (for IEI iDP connector)
DP-VGA-R10DisplayPort to VGA converter board (for IEI iDP connector)
DP-DP-R10DisplayPort to DisplayPort converter board (for IEI iDP connector)
AC-KIT-892HD-R107.1 channel HD Audio kit with Realtek ALC892 support dual audio streams
TPM-IN01-R1120-pin Infineon TPM module, software management tool, firmware V3.17

订购信息 包装清单

1 * PCIE-H810 single board computer2 * SATA cable
1 * QIG (Quick Installation Guide)1 * Utility CD
1 * One Key Recovery CD
