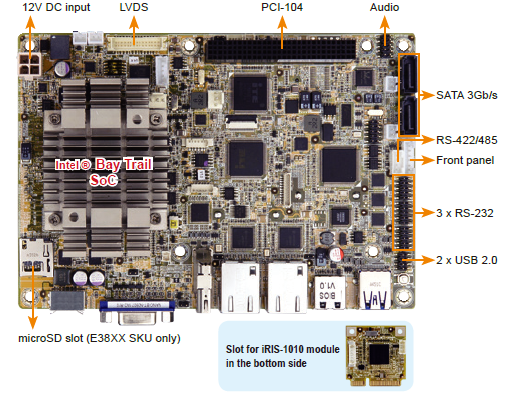

> 产品 > EPIC NANO系列主板 > NANO-BT-i1| ● EPIC SBC supports 22nm Intel® Atom™ or Celeron® on-board SoC |
|
● Supports dual independent display with
LVDS, VGA and HDMI
|
|
● 1.35V DDR3L 1333/1066 MHz SDRAM support up
to 8 GB
|
|
● Support IPMI 2.0 with iRIS-1010 module
|
|
● IEI One Key Recovery solution allows you to
create rapid OS backup and recovery
|
产品规格
|
Display
|
Dual independent display |
| VGA (up to 2560x1600 @ 60 Hz) | |
| HDMI (up to 1920x1080 @ 60 Hz) | |
| 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz) | |
|
CPU
|
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W) |
|
Memory Max.
|
One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM |
| supports | |
| up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815) | |
|
CPU Socket
|
On Board |
|
Ethernet
|
LAN1: Intel® I210-AT PCIe controller with NCSI support |
| LAN2: Intel® I211-AT PCIe controller | |
|
Digital I/O
|
1 x 8-bit digital I/O (2x5 pin) |
|
Audio
|
Realtek ALC662 HD Audio codec |
| 1 x Analog audio (2x5 pin) | |
|
Power consumption
|
12V@1.52A (Intel® Atom™ processor J1900 with one 8GB 1333 MHz DDR3 memory) |
|
Operating Temperature
|
-20°C ~ 60°C (NANO-BT-i1-XXXXXX-R11) |
| -40°C ~ 85°C (NANO-BT-E38XX1W2-R11) | |
|
Humidity
|
10% ~ 95%, non-condensing |
|
iRIS
|
1 x iRIS-1010 slot |
|
Storage
|
2 x SATA 3Gb/s with 5V SATA power connector (no RAID) |
|
Expansion Slots
|
1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2) |
| 1 x PCI/104 slot (PCI signal) | |
| 1 x microSD slot (E38XX SKU only) | |
|
Watchdog Timer
|
Software programmable, support 1~255 sec. system reset |
|
CPU Cooler
|
N/A |
|
I/O Interface
|
3 x Internal RS-232 |
| 2 x Internal USB 2.0 | |
| 1 x Internal RS-422/485 | |
| 1 x USB 2.0 | |
| 1 x USB 3.0 |
订购信息
| NANO-BT-i1-N28071-R11 | EPIC SBC supports Intel 22nm Dual-Core Celeron N2807 1.58GHz (4.5W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA, mSATA , COM, iRIS-1010, audio and RoHS |
| NANO-BT-i1-N29301-R11 | EPIC SBC supports Intel 22nm Quad-Core Celeron N2930 1.83GHz (7.5W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA, mSATA , COM, iRIS-1010, audio and RoHS |
| NANO-BT-i1-J19001-R11 | EPIC SBC supports Intel 22nm Quad-Core Celeron J1900 2.0GHz (10W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA, mSATA , COM, iRIS-1010, audio and RoHS |
