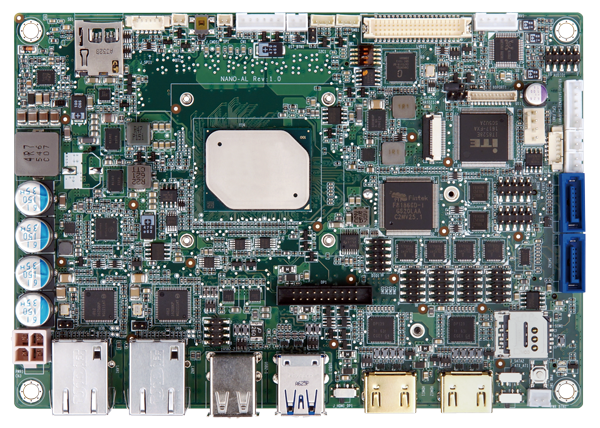

| » EPIC SBC supports 14nm Intel® Pentium®/Celeron®/Atom™ on-board SoC supports dual-channel DDR3L SO-DIMMs. |
|
» Triple
independent display support.
|
|
» Wide range
9V~30V DC input design.
|
|
» M.2 B Key
slot with SIM sockets for 3G/LTE expansion.
|
|
» COM, USB
3.0, SATA 6Gb/s, M.2, eMMC 5.0 and audio support.
|
| CPU | Intel® Pentium®
N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W) Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W) Intel® Atom® x7-E3950 on-board SoC (up to 2.0GHz, quad-core, 2M Cache, TDP=12W) Intel® Atom® x5-E3940 on-board SoC (up to 1.8GHz, quad-core, 2M Cache, TDP=9W) Intel® Atom® x5-E3930 on-board SoC (up to 1.8GHz, dual-core, 2M Cache, TDP=6W) |
| 内存 | One 204-pin 1866/1600MHz Single-channel DDR3L SO-DIMM |
| 内存上限 | 8GB |
| 网络 | 描述:Intel® I211-AT PCIe controller |
| 显示输出 | 2
x HDMI™:up to 3840x2160@30Hz 1 x LVDS:18/24-bit dual-channel (up to 1920x1200@60Hz) 1 x iDP:interface for HDMI™. LVDS, VGA, DVI, DP (up to 4096x2304@60Hz) (colay with HDMI™1) |
| 音频 | 1
x 描述:Realtek ALC662 HD codec 1 x Front Audio:2x5 pin |
| I/O接口 | 4
x Internal RS-232:2x5 pin, P=2.0 2 x Internal RS-422/485:2x5 pin, P=2.0 2 x External USB 2.0 2 x External USB 3.2 Gen1x1 2 x Internal USB 2.0:2x4 pin, P=2.0 1 x PS/2:1x6 pin |
| 存储 | 2
x SATA:6Gb/s with 5V SATA power connector (no RAID) 1 x SD/MicroSD card:optional |
| 扩展 | 1
x PCIe mini Card Slot:Full/Half-size PCIe Mini slot with SIM holder
(optional) 1 x M.2(NGFF):2242 (B key, SATA, USB 2.0, USB 3.1 Gen 1 (5Gb/s) signal only) |
| 电源供电 | 9V~30V
DC input 1 x Internal power connector (2x2 pin) Support AT/ATX mode |
| 电源功耗 | 12V@2.13A
(Intel® Pentium® N4200 CPU with one 8GB 1600MHz DDR3L memory) 12V@2.81A (Intel® Atom™ x7-E3950 CPU with one 8GB 1600MHz DDR3L memory) |
| 操作温度 | -20°C ~ 70°C / -40°C ~ 85°C (NANO-AL-ExW2) |
| 存储温度 | -40°C ~ 85°C |
| Humidity | 5% ~ 95%, non-condensing |
| 尺寸 (LxWxH) (mm) | 115 X 165 |
| 净重 | 350g |
| Safety & EMC | CE/FCC compliant |
| NANO-AL-N2-R10 | EPIC SBC supports Intel® 14nm quad-core Pentium® N4200 2.5GHz on-board SoC with Dual HDMI™/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS |
| NANO-AL-N1-R10 | EPIC SBC supports Intel® 14nm dual-core Celeron® N3350 2.3GHz on-board SoC with Dual HDMI™/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS |
