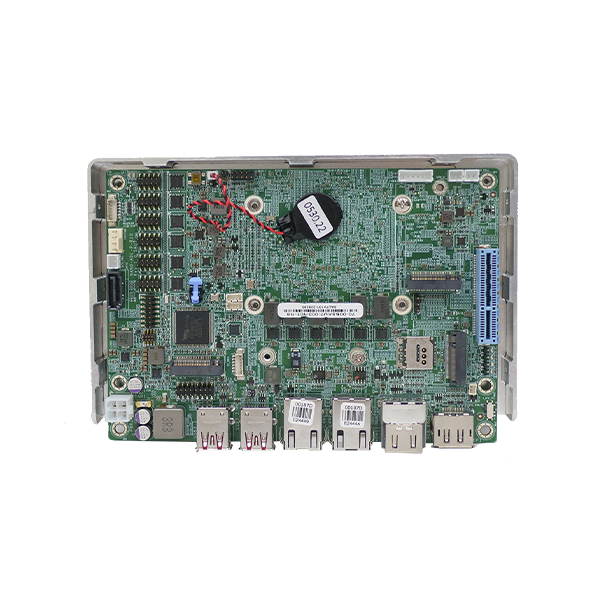

> 产品 > EPIC NANO系列主板 > NANO-ADL-P
| » 支持 12/13 代 Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC |
|
» 板载 LPDDR4x
3200 MHz 8GB 内存，内存上限为 32GB
|
|
»
支持两路HDMI™、一路DP和一个iDPM插槽，四路独立显示
|
|
» 支持PCIE
X4、M.2 B key和M.2 A key扩展
|
|
» 支持两个2.5GbE
网口，使用 Intel® I225V/I226V 芯片
|
| CPU | 第 12/13 代 Intel® 移动 Alder Lake-P/Raptor Lake-P 板载 SoC |
| 内存 | 板载LPDDR4x-3200Gbps 8GB，内存上限 32GB |
| 内存上限 | 32GB |
| 网络 | 2 x LAN- LAN1: Intel® I225V/I226V 2.5GbE controller LAN2: Intel® I225V/I226V 2.5GbE controller |
| 显示输出 | 2
x HDMI™: 高达 4096 x 2160 @ 30Hz 1 x Display Port: 高达 4096 x 2160 @ 60Hz 1 x iDPM: 支持iEi eDP/ LVDS/ VGA 模块 |
| 音频 | 1 x HD Audio: 1 x iAUDIO, 支持 IEI AC-KIT-888S 音频模块 (2x5 pin) |
| I/O接口 | 4
x 内部RS-232 (2x5 pin, P=2.0) 2 x 内部RS-232/422/485 (2x5 pin, P=2.0) 4 x 内部 USB 2.0 (2x4 pin, P=2.0) 4 x 外部 USB 3.2 Gen2x1: 10Gb/s(Type A) |
| 存储 | 1 x SATA (6Gb/s) |
| 扩展 | 1
x PCIe x4 (PCIe Gen3 x4) 2 x M.2(NGFF) - 1 x M.2 A Key for Wi-Fi & BT 2230 (PCIe Gen3 x 1 & USB 2.0) 1 x M.2 B Key W/ SIM Header (PCIe x2) 3042/2280 |
| 电源供电 | ATX/AT电源 支持AT/ATX模式 符合 ErP/EuP |
| 电源功耗 | 12V@4.62A (第 12 代 Intel® Core™ i7-1265UE CPU，8 GB 3200 MHz LPDDR4x 内存，最大值加载，启用 EuP 模式) |
| 操作温度 | -10°C ~ 60°C |
| 存储温度 | -30°C~70°C |
| Humidity | 5% ~95%, 无冷凝 |
| 尺寸 (LxWxH) (mm) | 115 mm x 165 mm |
| 净重 | 400g |
| 尺寸类型 | EPIC SBC |
| NANO-ADL-P-i7C-R10 | EPIC SBC supports Intel® Alder Lake-P Core™ i7-1255U processor with 8GB LPDDR4x memory on board default, with Dual HDMI™,DP,IDPM,M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, IAUDIO,PCIe x4 for riser card and RoHS |
| NANO-ADL-P-i5C-R10 | EPIC SBC supports Intel® Alder Lake-P Core™ i5-1235U processor with 8GB LPDDR4x memory on board default, with Dual HDMI™,DP,IDPM,M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, IAUDIO,PCIe x4 for riser card and RoHS |
| NANO-ADL-P-i3C-R10 | EPIC SBC supports Intel® Alder Lake-P Core™ i3-1215U processor with 8GB LPDDR4x memory on board default, with Dual HDMI™,DP,IDPM,M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, IAUDIO,PCIe x4 for riser card and RoHS |
| NANO-ADL-P-CC-R10 | EPIC SBC supports Intel® Alder Lake-P Celeron® 7305 processor with 8GB LPDDR4x memory on board default, with Dual HDMI™,DP,IDPM,M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, IAUDIO,PCIe x4 for riser card and RoHS |
