2 x RS-232 1 x RS-422/485 4 x USB 2.0 4 x USB 3.0 1 x 6-pin header for KB/MS 2 x SATA 电源接口 (5V/12V) 2 x SATA 3Gb/s and 2 x SATA 6Gb/s with RAID 0/1/5/10 support
数字I/O
8-bit digital I/O
Super I/O
Fintek F81866
红外连接器
1 x 5-pin header
TPM
2 x 10-pin header
SMBus
1 x 4-pin wafer
音频
Realtek ALC892 HD codec
显示接口
DVI-I (VGA+DVI) integrated in the Intel® QM77 (up to 1920 x 1200 @60Hz) 18/24-bit dual-channel LVDS support (up to 1920 x 1200 @60Hz) Dual HDMI output supported (up to 1920 x 1200 @60Hz)
扩展槽
1 x PCIe Mini card slot 1 x PCIe x16
看门狗定时器
软件可编程支持 1~255 sec. 系统复位
电源
单电压 12V DC 输入 1 x External 4-pin DIN DC 插孔 1 x internal 2x2-pin 电源接口 支持 AT/ATX 模式
功耗
12V@6.08A (2.3GHz Intel® Core™ i7-3610QE with two 1333 MHz 4GB DDR3 memory running 3DMark06 burn in)
图形
支持 DX11 和 OpenGL 3.1 Full MPEG2, VC1, AVC Decode
工作温度
-10°C ~ 60°C
相对湿度
5% ~ 95%, 无冷凝
尺寸
170 mm x 170 mm
重量
GW: 900g/NW: 450g
嵌入式控制器
iWDD EC
Fan Connector
1 x 4-pin CPU 风扇接口 1 x 3-pin 系统风扇接口
订购信息
产品名称
描述
KINO-QM770-R10

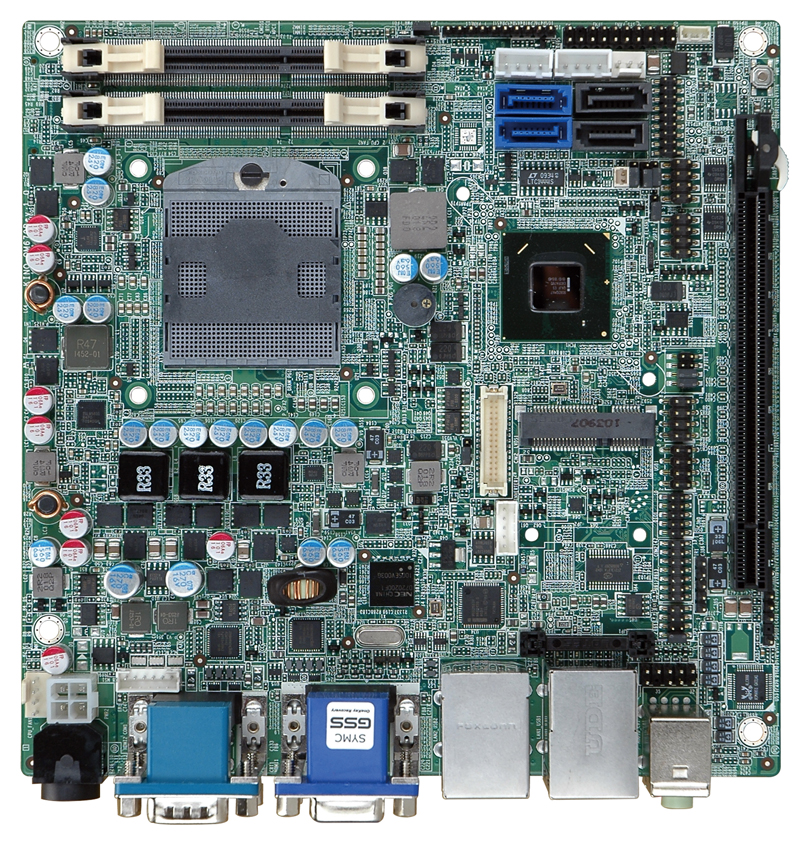

Mini-ITX SBC with Socket G2 for Intel® 22nm mobile CPU, DVI-I/dual HDMI/LVDS, dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s and Audio
19800-003100-200-RS
Dual USB cable
32000-023800-RS
KB/MS Y cable
SACF-KIT01-R10
SATA to CF converter board
CF-989A-RS-R12
CPU cooler for mobile socket-G (PGA988) up to 55W processor, copper, 60 x 60 x 27.6mm, RoHS
