KINO-DQM871

Enlarge image

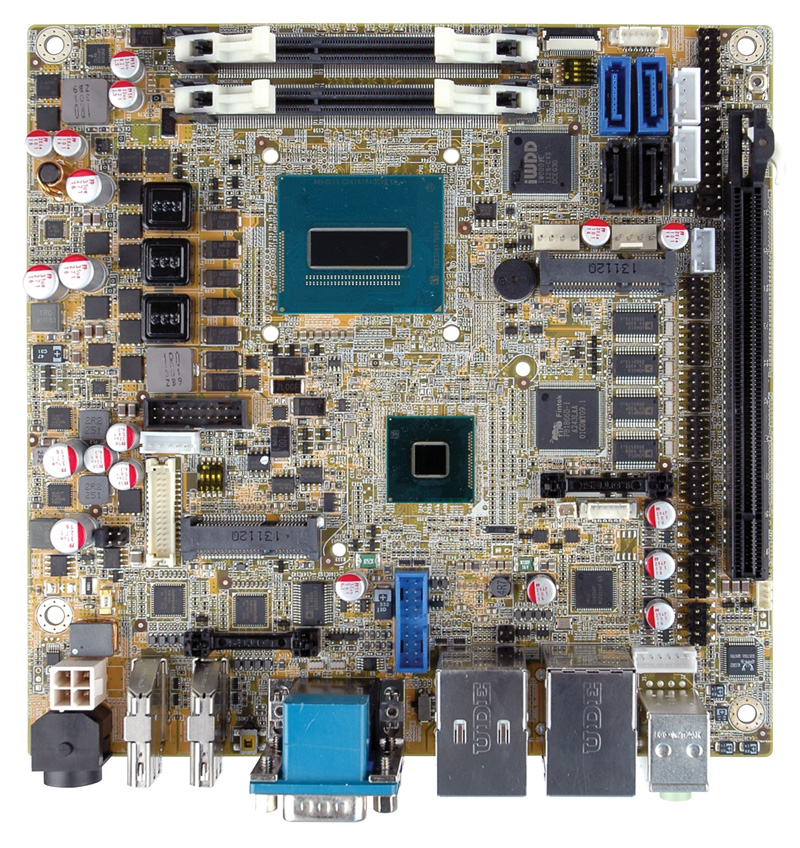

Mini-ITX SBC with Intel® mobile Haswell CPU, HDMI / VGA / LVDS / DP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD 音频和RoHS

Datasheet(PDF)    Download (Deriver/BIOS/Manual/QIG)

产品特征 产品特征
  1. Mini-ITX SBC 支持 Intel® 22nm mobile Haswell处理器
2. DDR3 1066/1333/1600MHz 双通道 SDRAM
3. HDMI 1.4a compliant, 支持三个独立显示器
4. 3D微架构的增强支持 DX11.1, OCL 1.2 和 OGL3.2
5. 丰富的媒体硬件编解码加速
5. Intel® GbE Lan 支持 Intel® AMT 9.0
7. 高速I/O接口支持 PCIe Gen 3.0 附加卡, USB 3.0 和 SATA 6Gb/s
8. 双 mini-PCIe 扩展支持 mini-PCIe device 和 mSATA
9. IEI 免跳线功能

产品规格 产品规格

CPUBGA 1364 type for Intel® 22nm Haswell 处理器
PCHIntel® QM87
BIOSUEFI BIOS
内存两个204-pin 1066/1333/1600 MHz DDR3 双通道SO-DIMMs (Support up to 16GB)
以太网Intel® I211 PCIe 控制器
Intel® I217 with Intel® AMT supported
I/O接口5 x RS-232
4 x USB 3.0 (2 x Rear I/O, 2 x pin header)
1 x RS-422/485
10 x USB 2.0 (2 x Rear I/O, 8 x pin header)
4 x SATA 6GB/s with raid support
2 x SATA 电源接口(4P, P=2.54)
1 x 6-pin pin header for KB/MS
Super I/OFintek F81866
TPM2 x 10-pin pinheder
SMBus1 x 4-pin wafer
音频Realtek ALC662 HD 编解码器
显示接口VGA 集成于Intel® QM87
支持18/24-bit 双通道LVDS
支持双 HDMI 输出
DP port pin header
LAN2 x 2 PIN for LAN1 LED, LAN2 LED
扩展槽2 x Mini PCIe card 插槽 (one colay mSATA)
1 x PCIe x16
看门狗定时器软件可编程支持1~255 秒系统复位
电源12V DC 输入
1 x 外部DIN 4pin DC 接口
1 x 内部2x2pin 电源接口
支持AT/ATX 模式
功耗12V@5.03A (2.0GHz Intel® Core ™ i7 处理器以及两个1333 MHz 4GB DDR3 内存)
图形支持 DX11.1 and OpenGL3.2
MPEG2, VC1, AVC 全解码
工作温度-20℃ ~ 60℃
相对湿度5% ~ 95%, 无冷凝
尺寸170mm x 170mm
重量GW: 900g/NW: 450g

订购信息 订购信息

产品名称描述
KINO-DQM871-i7-R10 Mini-ITX SBC supports Intel® 22nm 4th generation mobile Core™ i7/i5/i3 and Celeron® on-board processors, HDMI / VGA / LVDS / DP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
KINO-DQM871-i5E-R10 Mini-ITX SBC supports Intel® 22nm 4th generation mobile Core™ i7/i5/i3 and Celeron® on-board processors, HDMI / VGA / LVDS / DP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
KINO-DQM871-i3E-R10 Mini-ITX SBC supports Intel® 22nm 4th generation mobile Core™ i7/i5/i3 and Celeron® on-board processors, HDMI / VGA / LVDS / DP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
KINO-DQM871-CE-R10 Mini-ITX SBC supports Intel® 22nm 4th generation mobile Core™ i7/i5/i3 and Celeron® on-board processors, HDMI / VGA / LVDS / DP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
19800-003100-300-RS Dual USB cable
32000-023800RS KB/MS Y cable
19800-010500-100-RS USB 3.0 cable with bracket, 457mm
19800-000300-100-RS RS-232 cable with bracket
32205-003800-100-RS RS-422/485 cable, 200mm
DP-LVDS-R10DisplayPort to 24 bit dual channel LVDS converter board (For iEi IDP connector)
DP-HDMI-R10DisplayPort to HDMI converter board (For iEi IDP connector)
DP-DVI-R10DisplayPort to DVI-D converter board (For iEi IDP connector)
DP-VGA-R10DisplayPort to VGA converter board (For iEi IDP connector)
DP-DP-R10 DisplayPort converter board (For iEi IDP connector)
TPM-IN01-R11 20-Pin Infineon TPM module, software management tool, firmware V3.17

订购信息 包装清单

1 * KINO-DQM871 Motherboard2 * SATA with power output cable (P/N:32801-000100-100-RS)
1 * I/O shielding1 * Utility CD
1 * Mini Jumper Pack1 * QIG
1 * CPU cooler
