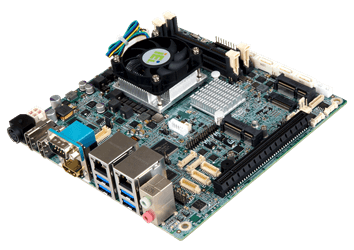

产品特征
| ● Mini ITX form fator with 6th Gen Intel® Core™ i7/i5/i3/Celeron® processor support DDR4 memory |
|
● Support HDMI 2.0 (4096x2160@60Hz)
|
|
● Triple display with independent audio via
HDMI
|
|
● PCIe x16, dual PCIe Mini and M.2 A key
feature support for various function module
|
|
● Rich High speed I/O interface for USB 3.0
and SATA 6Gb/s
|
|
● Support IEI jumpless
|
产品规格
|
Display Output
|
Triple independent display |
| 2 x HDMI 1.4 (up to 4096x2160@24Hz) | |
| 1 x HDMI 2.0 by MCDP2800-BB DP to HDMI/DVI converter (up to 4096x2160@60Hz) | |
| 1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz) | |
|
CPU
|
6th generation Intel® Core™ mobile processor |
| Intel® Core™ i7-6820EQ (3.5GHz, quad-core, 8M cache, TDP=45W) | |
| Intel® Core™ i5-6440EQ (3.4GHz, quad-core, 6M cache, TDP=45W) | |
| Intel® Core™ i3-6102E (1.90GHz, dual-core, 3M cache, TDP=25W) | |
| Intel® Celeron® G3902E (1.60GHz, dual-core, 2M cache, TDP=25W) | |
|
Chipset
|
Intel® QM170 |
|
Memory Max.
|
Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMMs supported |
| (system max. 64 GB) | |
|
Graphcis Controller
|
- |
|
Ethernet
|
LAN1: Intel® I219LM with (Intel® AMT 11.0 support) |
| LAN2: Intel® I211 PCIe controller with NCSI support | |
|
Digital I/O
|
1 x 8-bit digital I/O (2x5 pin) |
|
Audio
|
Realtek ALC662 HD Audio codec supports 5.1-channel |
| 2 x audio jacks(line out, mic in) on rear I/O (colay with 3x audio jack) | |
| 1 x Front audio (2x5 pin) | |
|
Power consumption
|
12V@5.08A (Intel® Core™ i7-6820EQ, 3.5GHz CPU with 16 GB (two 8 GB) 2133 MHz |
| DDR4 memory) | |
|
Power Supply
|
12V DC input |
|
Operating Temperature
|
-20°C ~ 60°C |
|
Humidity
|
5% ~ 95%, non-condensing |
|
Storage Temperature
|
- |
|
Dimensions
|
170mm x 170 mm |
|
Weight
|
GW:900g, NW: 450g |
|

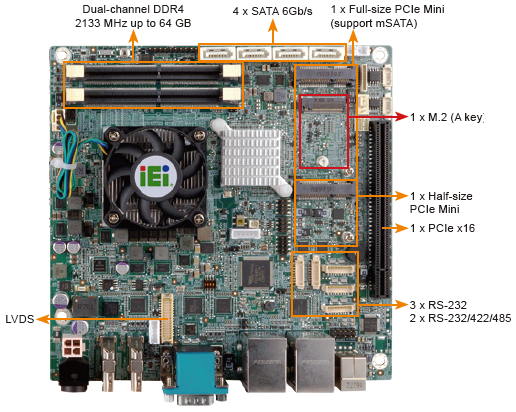

Expansion Slots
|
1 x Full-size PCIe Mini (support mSATA) |
| 1 x M.2 2230 (A key) | |
| 1 x Half-size PCIe Mini | |
| 1 x PCIe x16 slot | |
|
I/O Interface
|
1 x SMBus ((1x4 pin)) |
| 4 x Internal USB 2.0 ((2 x 4pin,P=2.0)) | |
| 3 x Internal RS-232 ((1x9 pin, P=1.25)) | |
| 2 x Internal RS-232/422/485 ((1x9 pin, P=1.25)) | |
| 1 x KB/MS ((1x6 pin, P=2.0)) | |
| 4 x SATA 6Gb/s ((RAID 0/1/5/10 support)) |
订购信息
| KINO-DQM170-i7-R10 | Mini-ITX SBC supports 6th Intel® Core™ i7-6820EQ processor(45W), HDMI 2.0, SATA 6Gb/s, dual Intel® GbE, USB 3.0, PCIe Mini, M.2, HD Audio and RoHS |
| KINO-DQM170-CE-R10 | Mini-ITX SBC supports 6th Intel® Celeron® Processor G3902E(25W), HDMI 2.0, SATA 6Gb/s, dual Intel®GbE, USB 3.0, PCIe Mini, M.2, HD Audio and RoHS |
| KINO-DQM170-i3E-R10 | Mini-ITX SBC supports 6th Intel® Core™ i3-6102E processor(25W), HDMI 2.0, SATA 6Gb/s, dual Intel®GbE, USB 3.0, PCIe Mini, M.2, HD Audio and RoHS |
| KINO-DQM170-i5-R10 | Mini-ITX SBC supports 6th Intel® Core™ i5-6440EQ processor(45W), HDMI 2.0, SATA 6Gb/s, dual Intel® GbE, USB 3.0, PCIe Mini, M.2, HD Audio and RoHS |
