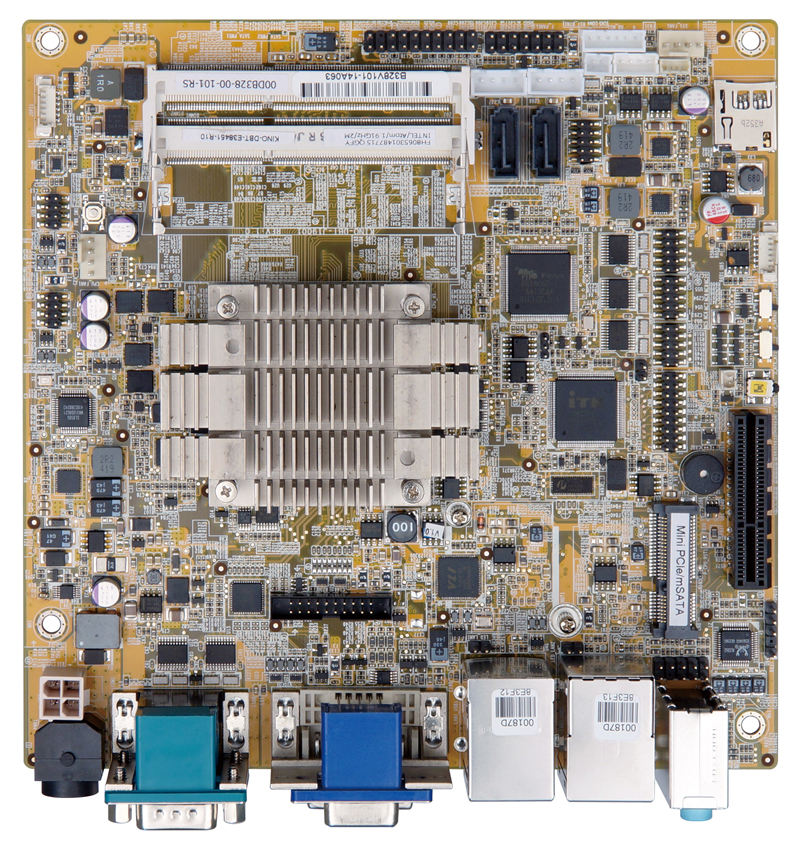

 产品特征 | | | 1. Mini-ITX SBC 支持 22nm Intel® Atom™ 板载 SoC
2. 1.35V DDR3L 1066/1333MHz SDRAM 支持 8GB 内存
3. 支持独立双显Dual independent display support
4. 支持 COM, USB 3.0, SATA 6Gb/s, PCIe Mini, mSATA 和 HD 音频
5. 支持 Intel® VT-x 技术 |
|
| |
| 产品规格 | | | | CPU | Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.5W) | | BIOS | AMI UEFI BIOS | | 内存 | 支持 2 x 204-pin 1066/1333 MHz 双通道 DDR3L SO-DIMM(系统**** 8GB) | | 以太网 | Dual Realtek RTL8111E PCIe GbE 控制器 | | I/O接口 | External I/O Interface:
2 x RS-232
2 x USB 2.0
2 x USB 3.0
内置 I/O 接口:
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.0)
3 x RS-232 (2x5 pin, P=2.54)
2 x SATA 3Gb/s with 5V, 12V SATA 电源连接头 | | 数字I/O | 8-bit 数字 I/O (2x5 pin) | | TPM | 1 x TPM (2x10 pin) | | SMBus | 1 x SMBus (1x4 pin) | | 音频 | Realtek ALC662 HD codec 支持 5.1 channel | | 显示接口 | 独立双显
VGA (up to 2560x1600 @ 60 Hz)
DVI-D (up to 1920x1080 @ 60 Hz)
iDP 接口 for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600 @60 Hz) | | LAN | 2 x LAN LED (1x2 pin) | | 扩展槽 | 1 x 全长 PCIe Mini 卡槽
1 x microSD 插槽 (E38XX SKU only)
1 x PCIe x4 slot (with PCIe x1 signal)
1 x mSATA share with SATA port 2 | | 看门狗定时器 | 软件可编程支持 1~255 秒系统复位 | | 电源 | 12V DC 输入
1 x 外部 4-pin DIN DC jack
1 x 内置 4-pin (2x2) 电源接口 | | 功耗 | 12V@1.64A (Intel® Celeron® J1900 CPU with 4GB 1333MHz DDR3L memory) | | 图形 | Intel® HD Graphics Gen 7 Engines with 4 execution units, supporting DX11.1, OpenGL 4.2 and OpenCL1.2 | | 工作温度 | -20°C ~ 70°C | | Storage Temperature | -30°C ~ 85°C | | 相对湿度 | 5% ~ 95%, 无冷凝 | | 尺寸 | 170mm x 170mm | | 重量 | GW:900g/NW: 400g |
|
|
| |
| 订购信息 | | | | 产品名称 | 描述 | | KINO-DBT-J19001-R10 | Mini-ITX SBC supports Intel® Celeron® quad-core processor J1900 (10W), VGA/DVI/iDP, Dual Intel® PCIe GbE, USB 3.0, SATA, HD Audio and RoHS | | KINO-DBT-N29301-R10 | Mini-ITX SBC supports Intel® Celeron® quad-core processor N2930 (7.5W), VGA/DVI/iDP, Dual Intel® PCIe GbE, USB 3.0, SATA, HD Audio and RoHS | | KINO-DBT-N28071-R10 | Mini-ITX SBC supports Intel® Celeron® dual-core processor N2807 (4.5W), VGA/DVI/iDP, Dual Intel® PCIe GbE, USB 3.0, SATA, HD Audio and RoHS | | KINO-DBT-E38XX1-R10** | Mini-ITX SBC supports Intel® Atom™ processor E38XX, VGA/ DVI/iDP, Dual Intel® PCIe GbE, USB 3.0, SATA, HD Audio and RoHS | | 32205-003800-300-RS | RS-422/485 cable | | 32205-002700-100-RS | RS-232 cable, 2, 200mm, D-SUB 9, 2*5P P=2.0 | | 32006-000300-100-RS | PS/2 KB/MS Y-cable without bracket | | DP-LVDS-R10 | DisplayPort to 24-bit dual-channel LVDS converter board (for IEI iDP connector) | | DP-HDMI-R10 | DisplayPort to HDMI converter board (for IEI iDP connector) | | DP-DVI-R10 | DisplayPort to DVI-D converter board (for IEI iDP connector) | | DP-VGA-R10 | DisplayPort to VGA converter board (for IEI iDP connector) | | DP-DP-R10 | DisplayPort to DisplayPort converter board (for IEI iDP connector) | | TPM-IN01-R11 | 20-pin Infineon TPM module, software management tool, firmware V3.17 |
|
|
| |
| 包装清单 | | | | 1 * KINO-DBT single board computer | 1 * Utility CD | | 1 * SATA cable with power output cable (P/N:32801-000100-100-RS) | 1 * QIG | | 1 * IO shielding (P/N:45014-0056C0-00-RS) | |
|
|
