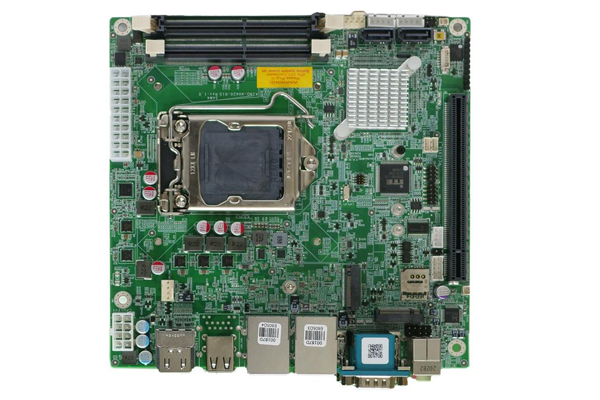

> 产品 > ITX工业主板 > KINO-AH420
| » Mini-ITX SBC 支持 LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® 和 Pentium® 处理器 |
| » 两个 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs 支持高达64GB |
| » 双重显示, 两个 HDMI™ |
| » 支持 Dual Intel® I225-V/I226-V 2.5GbE controller |
| » 支持 PCIe Gen3 x16, M.2 A key 和 M.2 B key 扩展 |
| CPU | LGA1200 socket 支持 10th Generation Core™ i9/i7/i5/i3, Celeron® 和 Pentium® 处理器 |
| 芯片组 | Intel® H420/H420E |
| 内存 | 两个 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs |
| 内存上限 | 64GB |
| 网络 | 2 x LAN - LAN1: Intel® I225-V/I226-V 2.5GbE controller LAN2: Intel® I225-V/I226-V 2.5GbE controller |
| 显示输出 | 2 x HDMI™: 高达 4096 x 2160@30Hz |
| 音频 | 1 x HD Audio: Realtek ALC888S HD codec 2 x Audio Jack (Line-out, Mic-in) 1 x Front Audio (2x5 pin, P=2.54) |
| I/O接口 | 2 x External RS-232(DB-9) 1 x 内部RS-232(2x5 pin, P=2.0) 1 x Internal RS-422/485(1x4 pin, P=2.0) 2 x 外部 USB 2.0(Type-A) 4 x 外部 USB 3.2 Gen1x1(5Gb/s, Type-A) 2 x 内部 USB 2.0(2x4 pin, P=2.0) 1 x DIO: 8位数字 I/O (2x5 pin) |
| 存储 | 2 x SATA: 6Gb/s (No RAID) 1 x M.2(NGFF): B key (3042/3052/2242/2280) (PCIe Gen 3 x2 /USB 2.0) |
| 扩展 | 1 x PCIe x16: PCIe Gen3 x16 M.2(NGFF) - 1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0) 1 x M.2 B key (3042/3052/2242/2280) (PCIe Gen 3 x2 /USB 2.0) 1 x On-board SIM card socket (hinge type) for M.2 B key |
| 电源供电 | 1 x ATX power input connector (20-pin) 1 x ATX power connector (2x4 pin) Support AT/ATX mode ErP/EuP Compliant |
| 电源功耗 | 3.3V@0.81A, 5V@7.15A, 12V@4.28A, 5VSB@0.16A (Intel® Core™ i9-10900E CPU with two 32 GB 3200 MHz DDR4 memory, EuP mode enabled) |
| 操作温度 | -10°C ~ 60°C |
| 存储温度 | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, 无冷凝 |
| 尺寸 (LxWxH) (mm) | 170mm x 170mm |
| 净重 | GW: 1200g / NW: 700g |
| 散热方案/系统风扇 | 1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| 尺寸类型 | Mini-ITX |
| KINO-AH420-R10 | Mini-ITX SBC supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, double 2.5GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS |
