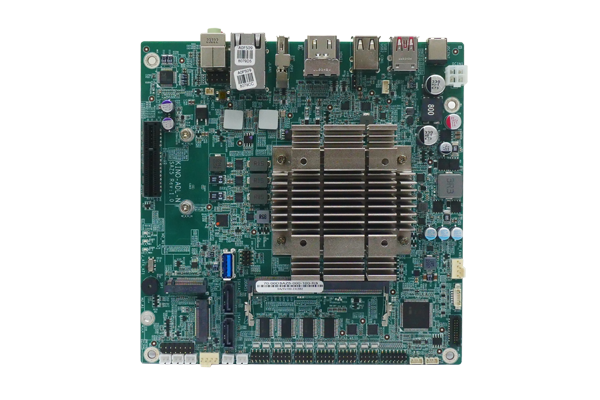

> 产品 > ITX工业主板 > KINO-ADL-N| » Mini-ITX SBC 支持 Intel® Alder Lake-N SoC Processor |
|
» 支持 1x 4800
MHz DDR5 SO-DIMM
|
|
» 独立三显：2 x
HDMI, DP
|
|
» 支持双 Intel®
I226V 2.5GbE controller
|
|
» 支持 PCIe Gen3
x4, M.2 M key, 和 M.2 A key
|
| CPU | ● Onboard
Intel® Atom™ / Pentium® / Celeron® processor (Alder Lake N platform) ● Intel® Alder Lake-N N97 SoC Processor (up to 2.9GHz, quad-core, TDP=12W) ● Intel® Alder Lake-N N200 SoC Processor (up to 3.2GHz, quad-core, TDP=6W) ● Onboard Intel® Atom™ x7000 series / Pentium® / Celeron® processor (Amston Lake platform) ● Intel® Amston Lake x7835RE SoC Processor (up to 3.0GHz, 8-core, TDP=12W) ● Intel® Amston Lake x7405C SoC Processor (up to 2.7GHz, quad-core, TDP=12W) |
| 内存 | 1 x 262-pin 4800 MHz DDR5 SO-DIMM (支持 IBECC) |
| 内存上限 | 高达 16G |
| 网络 | 2 x LAN - LAN1: Intel® I226V 2.5GbE 控制器 LAN2: Intel® I226V 2.5GbE 控制器 |
| 显示输出 | 2
x HDMI™: 1.4 4K@30 1 x Display Port: 1.4 4K@60 |
| 音频 | HD Audio: Realtek ALC888S HD Audio codec 1 x Audio jacks (line-out/MIC-in) on rear IO 1 x Front audio (2x5 pin) |
| I/O接口 | 4
x 内部RS-232: 2x5 pin, P=2.0 2 x 内部RS-232/422/485: 2x5 pin, P=2.0 2 x 外部 USB 2.0 2 x 内部 USB 2.0: 2x4 pin, P=2.0 1 x 内部 USB 3.2 Gen1x1: TypeA, 180° (Only embedded CPU) 1 x DIO: 12-bit digital I/O (2x7 pin) 2 x 外部 USB 3.2 Gen2x1: 10Gb/s 1 x I²C: 1x4 pin |
| 存储 | 2 x SATA: 6Gb/s |
| 扩展 | 1 x PCIe x4: PCIe Gen3 x1 信号 |
| 电源供电 | 输入电压范围：12~28V
1 x 内部 power connector (2x2 pin) 1 x 外部 DC power jack (Ø2.6mm) ErP/EuP Compliant |
| 电源功耗 | 12V@4.304A,
19V@2.744A, 24V@2.241A, 28V@1.943A, (Intel ®N97 @2.00GHz CPU with Innodisk M5S0-AGS2NCVP 4800 16GB memory, max. loading, EuP mode ensabled) |
| 操作温度 | -10°C ~ 60°C |
| 存储温度 | -30°C ~ 70°C |
| Humidity | 5% ~95%, 无冷凝 |
| 尺寸 (LxWxH) (mm) | 170mm x 170mm |
| 净重 | GW: 900g / NW: 400g |
| M.2 | 1
x M.2 A Key 2230 用于 WIFI & BT (PCIe Gen3 x1 & USB 2.0) 1 x M.2 M key 2242/2280 (PCIe Gen3 x1) |
| 散热方案/系统风扇 | 1
x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| TPM | 2x10 pin |
| 尺寸类型 | Mini-ITX SBC |
| KINO-ADL-N97-R10 | Mini-ITX SBC with Intel® Alder Lake-N N97 SoC Processor,DDR5 SO-DIMM, 12~28V DC input, Triple Display, dual Intel 2.5GbE, USB 3.2, M.2 ,SATA, RoHS |
| KINO-ADL-N200-R10 | Mini-ITX SBC with Intel® Alder Lake-N N200 SoC Processor,DDR5 SO-DIMM, 12~28V DC input, Triple Display, dual Intel 2.5GbE, USB 3.2, M.2 ,SATA, RoHS |
