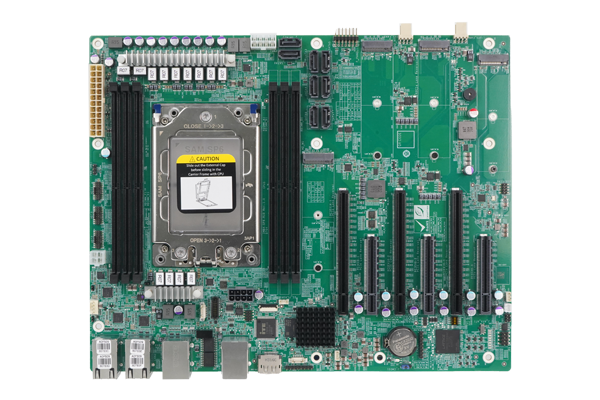

> 产品 > ATX工业主板 > IMBAX-SP6| » ATX motherboard supports AMD SP6 Siena 8-64 cores |
|
» 6 x 96GB
288-pin 4800MHz DDR5 RDIMM with ECC, up to 576GB total
|
|
» Support 4 x
2.5GbE LAN
|
|
» Support 1 x
PCIe Gen5 x16 slot, 2 x PCIe Gen4 x16 slot, 3 x PCIe Gen4 x8 slot
|
|
» 4 x M.2 M
key expansion
|
| CPU | AMD EPYC™ SP6 Siena 8-64 cores |
| 内存 | 6 x 96GB 288-pin 4800MHz DDR5 RDIMM with ECC |
| 内存上限 | up to 576GB |
| 网络 | LAN - 4 x 2.5GbE (I225-LM / I226-LM) Base-T LAN Ports 1 x GbE RJ45 IPMI management port 1 x RJ45 (RS-232 LAN Console port) |
| 显示输出 | 1 x Display Port: DP1.1a (1920 x 1080) |
| I/O接口 | 4
x 外部 USB 3.2 Gen1x1: Type-A (5Gb/s) 2 x 内部 USB 2.0: via one 2x4 pin connector, P=2.54 |
| 存储 | 8
x SATA: 6Gb/s connectors 4 x M.2(NGFF): M Key (2242/2280, PCIe x4 for SSD) NVMe support slot |
| 扩展 | PCIe
x16 - 1 x PCIe Gen5 x16 slot 2 x PCIe Gen4 x16 slot PCIe x8: 3 x PCIe Gen4 x8 slot |
| 电源供电 | ATX/AT
power supply Support AT/ATX mode |
| 电源功耗 | 5VSB@0.7A,
5V@1.68A, 3.3V@0.87A, 12V@9.4A (AMD SP6 Siena 8-64 cores with 192GB (six of 32GB) 4800MHz DDR5 memory) |
| 操作温度 | 0°C ~ 60°C |
| 存储温度 | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
| 尺寸 (LxWxH) (mm) | 244mm x 305mm (ATX) |
| 净重 | 900g |
| Safety & EMC | CE/FCC compliant |
| 散热方案/系统风扇 | 1
x CPU fan connector (1x4 pin) 2 x System fan connector (1x4 pin) |
| TPM | 1 x TPM header |
| 尺寸类型 | ATX Motherboard |
| IMBAX-SP6-R10 | B704;ATX motherboard supports AMD SP6 Siena 8-64 cores, 70W-225W TDP ,DDR5, Quad 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, RoHS |
