产品规格 | | CPU | 支持 LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® 或 Celeron® 处理器 | 芯片组 | Intel® Q87 | BIOS | UEFI BIOS | 内存 | 4 个 240-pin 1600/1333MHz 双通道 DDR3 & DDR3L SDRAM 无缓冲 DIMMs 支持 32GB | 以太网 | GbE1: Intel® I217LM 和 Intel® AMT 9.0 支持 GbE2: NCSI 支持 Intel® I210-AT PCIe 控制器 | I/O接口 | 5 x RS-232 4 x USB 3.0 (2 on rear, 2 by pin header) 1 x RS-422/485 8 x USB 2.0 (4 on rear, 4 by pin header) 1 x LPT 6 x SATA 6GB/s (支持 RAID 0, 1, 5, 10) 1 x mSATA (colay SATA port 6) (仅支持 SATA 6GB/s 信号) 1 x 6-pin wafer for PS/2 KB/MS | 数字I/O | 8-bit 数字 I/O (4-bit 输入, 4-bit 输出) | Super I/O | Fintek F81866 | TPM | 1 x 20-pin (2x10) header | SMBus | 1 x 4-pin wafer | 音频 | Realtek ALC662 HD 音频编解码器(音频输入,音频输出, 麦克风) | 显示接口 | VGA (可达 1920x1200 @ 60 Hz) DVI-D (可达 2560x1600 @ 60 Hz) HDMI (可达 2560x1600 @ 60 Hz) iDP 接口 for HDMI, LVDS, VGA, DVI, DP (可达 3840x2160 @60 Hz) | LAN | 2 x 2-pin headers for LAN1 Link LED, LAN2 Link LED | 扩展槽 | 1 x PCIe x16 插槽 (Gen 3) 1 x PCIe x4 插槽 1 x PCIe x1 插槽 4 x PCI 插槽 | 看门狗定时器 | 软件可编程支持 1~255 秒系统复位 | 电源 | 支持 ATX 电源 | 风扇 | 1 x 4-pin CPU 风扇接口 2 x 3-pin 系统风扇接口 | 功耗 | 3.3V@0.66A, 5V@4.34A, 12V@0.16A, Vcore_12V@4.01A, 5VSB@0.21A (Intel® Core™ i7-4770K 3.90 GHz CPU with 16GB (4x4GB) 1333MHz DDR3 memory) | 图形 | Intel® HD Graphics Gen 7.5 支持 DX11.1 和 OpenCL 1.2, OpenGL 3.2 Full MPEG2, VC1, AVC 解码 | 工作温度 | -20°C ~ 60°C | 相对湿度 | 5% ~ 95%, 无冷凝 | 尺寸 | 244mm x 305mm | 重量 | GW:1200g, NW: 700g | Front Panel | 1 x 前面板(电源 LED, HDD LED, 扬声器, 电源按钮, 复位按钮) | I2C | 1 x 4-pin wafer | Front Audio | 2 x 5-pin pin header | iRIS Remote Management Module | 1 x iRIS-2400 插槽 |
|
|

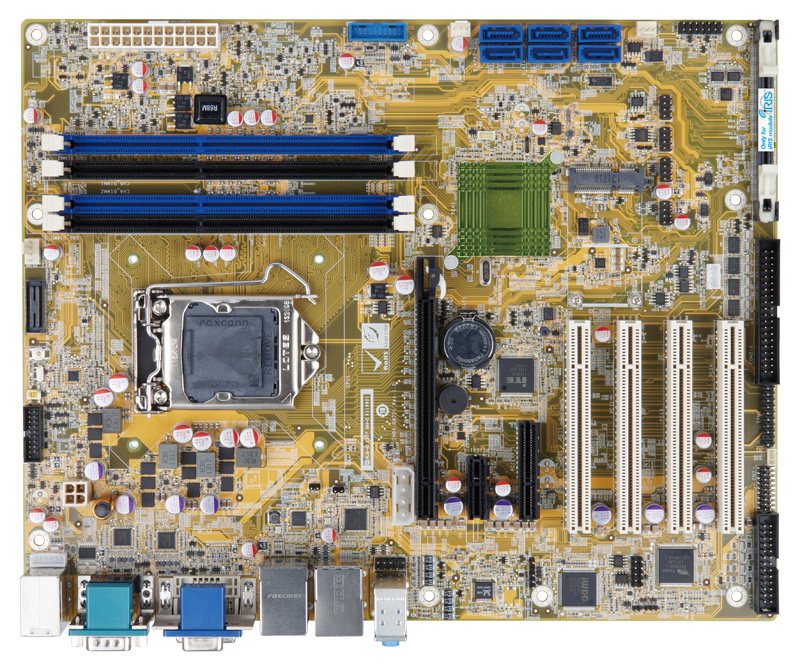

订购信息 | | 产品名称 | 描述 | IMBA-Q870-i2-R10 | ATX Motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/ i3/Pentium® and Celeron® CPU per Intel® Q87, DDR3, Three Independent Displays VGA/DVI-D/HDMI/iDP, Dual Intel® GbE, USB 3.0, SATA 6Gb/s, Audio, iRIS-2400 and RoHS | iRIS-2400-R10 | IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SODIMM socket interface | 19800-003100-200-RS | Dual Ports USB Cable with bracket | 19800-010500-100-RS | USB 3.0 + bracket cable | 32205-003800-100-RS | RS-422/485 cable, 200mm | 32205-001203-100-RS | RS-232 cable, 40-pin to four DB-9 | 32102-000100-200-RS | SATA power cable, MOLEX 5264-4P to SATA15P | 19800-000075-RS | PS/2 KB/MS Y-cable with bracket, 220mm | 19800-000049-RS | LPT cable | CF-1156E-RS-R11 | High performance LGA1155/LGA1156 cooler kit, 95W | DP-LVDS-R10 | DisplayPort to 24 bit dual channel LVDS converter board (For iEi IDP connector) | DP-HDMI-R10 | DisplayPort to HDMI converter board (For iEi IDP connector) | DP-DVI-R10 | DisplayPort to DVI-D converter board (For iEi IDP connector) | DP-VGA-R10 | DisplayPort to VGA converter board (For iEi IDP connector) | TPM-IN01-R11 | 20-Pin Infineon TPM module, software management tool, firmware V3.17 | CF-1156A-RS-R11 | High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W |
|
|
