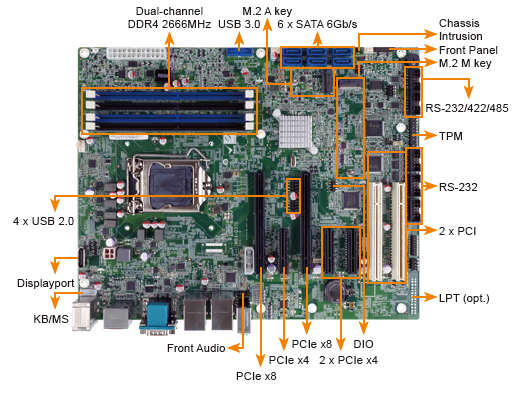

> 产品 > ATX工业主板 > IMBA-Q370| ● LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor |
|
● Dual-channel DDR4 2666MHz
|
|
● Support VGA, HDMI & DP++
|
|
● Support M.2 A key for WLAN expansion, M key
for storage
|
|
● IEI One Key Recovery solution allows you to
create rapid OS backup and recovery
|
|
Display Output
| Triple independent display |
| 1 x VGA (up to 1920 x 1080@60Hz) | |
| 1 x DP++ (up to 4096 x 2304@60Hz) | |
| 1 x HDMI (up to 4096 x 2304@30Hz) | |
| 1 x internal Displayport (up to 4096 x 2304@60Hz) | |
|
CPU
| LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, PentiumR or CeleronR processor |
|
Chipset
| Intel® Q370 |
|
Memory Max.
| Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB |
|
Ethernet
| LAN1 : Intel® I219LM PCIe controller with AMT 11.0 support |
| LAN2: Intel® I211AT PCIe controller | |
|
Digital I/O
| 8-bit digital I/O (2x5 pin) |
|
Audio
| Realtek ALC662 HD Audio Codec supports 5.1 channel |
| 3 x Audio jacks (line-out, line-in, mic-in) on rear IO | |
| 1 x Front Audio (2x5 pin) | |
|
Power consumption
| 3.3V@1.65A, 5V@3.4A, 12V@8.58A, 5VSV@3.4A (Intel® Core® i7-8700K up to 4.60 GHz CPU with 32GB 2600MHz DDR4 memory) |
|
Power Supply
| ATX/AT Power Supply |
|
Operating Temperature
| -20ºC ~ 60ºC |
|
Humidity
| 5% ~ 95%, non-condensing |
|
Storage Temperature
| -30°C ~ 70°C |
|
iRIS
| - |
|
Dimensions
| 244mm x 305mm |
|
Weight
| GW:1200g, NW: 700g |
|
Expansion Slots
| 2 x PCIe x8 |
| 3 x PCIe x4 | |
| 2 x PCI | |
| 1 x M.2 M Key (2280, PCIe x2 only) | |
| 1 x M.2 A key (2230, PCIe x1 & USB 2.0) | |
|
I/O Interface
| 1 x Front panel (2x7 pin, power LED, HDD LED, speaker, power button, reset button) |
| 1 x KB/MS (1x6 pin) | |
| 3 x Internal RS-232 (2x5 pin, P=2.54) | |
| 4 x USB 3.0 | |
| 4 x Internal USB 2.0 (2x4 pin, P=2.0) | |
| 2 x Internal USB 3.0 (2x10 pin, P=2.0) | |
| 1 x KB/MS | |
| 1 x I²C (1x4 pin) | |
| 1 x SMBus (1x4 pin) | |
| 2 x LAN LED (1x2 pin) | |
| 2 x USB2.0 | |
| 1 x RS-232 | |
| 2 x Internal RS-232/422/485 (2x5 pin, P=2.54) | |
| 6 x SATA 6Gb/s (RAID 0/1/5/10 supported) |
订购信息
| IMBA-Q370-R10 | ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual GbE LAN, M.2, USB 3.1, SATA 6Gb/s, HD Audio and RoHS |
