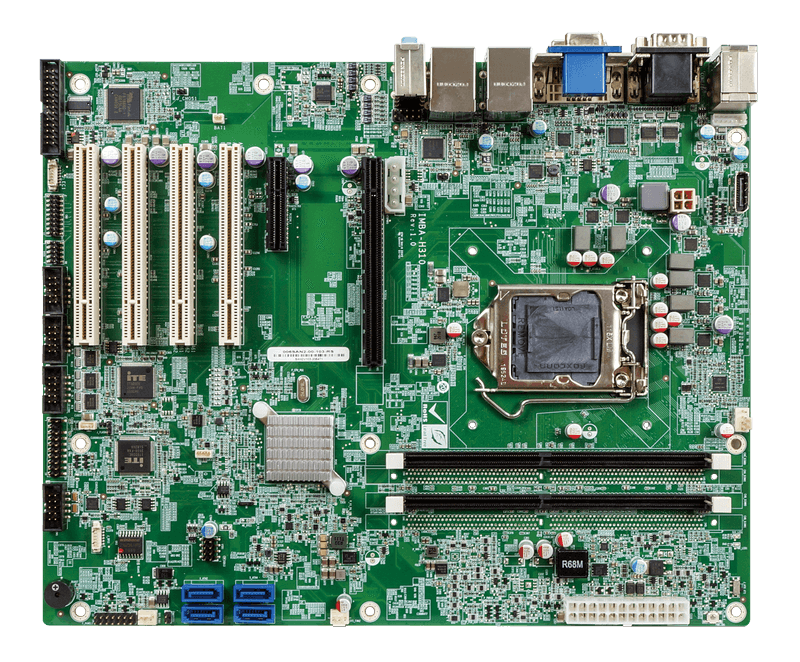

> 产品 > ATX工业主板 > IMBA-H310
| » LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor |
|
» Dual-channel
DDR4 2666MHz
|
|
» Support dual
displays with DVI-D/VGA/DP
|
|
» Support USB
3.2 Gen 1 (5Gb/s) and SATA 6Gb/s
|
| CPU | LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor |
| 芯片组 | Intel® H310 |
| 内存 | Two 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB |
| 内存上限 | Up to 64GB |
| 网络 | 2
x LAN:: LAN1: Intel® I219LM PCIe controller LAN2: Intel® I211 AT PCIe controller |
| 显示输出 | 1
x VGA 1 x DVI-D 1 x Display Port |
| 音频 | 1
x Line in 1 x Line out 1 x Mic 1 x Front Audio(2x5-pin) |
| I/O接口 | 2
x External RS-232 3 x Internal RS-232(2x5 pin, P=2.54) 1 x Internal RS-232/422/485(2x5 pin, P=2.54) 2 x External USB 2.0 4 x External USB 3.2 Gen1x1 2 x Internal USB 2.0(2x4 pin, P=2.54) 1 x PS/2(1x6 pin) 1 x DIO: 8-bit digital I/O (2x5 pin) 1 x LPT(2x13 pin, P=2.54) |
| 存储 | 4 x SATA |
| 扩展 | 1
x PCIe x16(Gen3) 1 x PCIe x4(Gen2) 4 x PCI Slot |
| 电源供电 | ATX/AT
power supply Support AT/ATX mode ErP/EuP Compliant |
| 电源功耗 | 3.3V@0.39A,
5V@2.99A, 12V@3.08A, 5VSB@0.2A (Intel® Core™ i5-8500 up to 3.00 GHz CPU with 20 GB 2400/2133 MHz DDR4 memory) |
| 操作温度 | -20°C ~ 60°C |
| 存储温度 | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| 尺寸 (LxWxH) (mm) | 244mm x 305mm |
| 净重 | GW:1200g / NW:700g |
| Safety & EMC | CE/FCC compliant |
| 散热方案/系统风扇 | 1
x CPU fan connector (1x4 pin) 2 x System fan connector (1x3 pin) |
| TPM | 1 x TPM 2.0 connector (2x10 pin) |
| 尺寸类型 | ATX Motherboard |
| IMBA-H310-R10 | ATX motherboard supports 14nm LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays, dual GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
