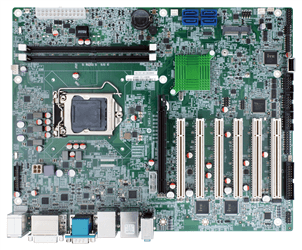

> 产品 > ATX工业主板 > IMBA-H110● LGA 1151 Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
● Dual-channel DDR4 2133 MHz
● Support dual displays with DVI-I/HDMI+DP/iDP
● Support USB 3.0 and SATA 6Gb/s
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
产品规格
| Display Output | Dual independent display |
| 1 x DVI-I (up to 2560x1200@60Hz) | |
| 1 x HDMI 1.4 (up to 4096x2160@24Hz) | |
| 1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz) | |
| CPU | LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor |
| Chipset | Intel® skylake H110 |
| Memory Max. | Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB |
| Ethernet | LAN1: Intel® I219V PHY |
| LAN2: Intel® I211 PCIe controller | |
| Digital I/O | 8-bit digital I/O (2x5 pin) |
| Audio | Realtek ALC662 HD codec supports 5.1-channel |
| 3 x Audio jacks (line-out, line-in, mic-in) on rear IO | |
| 1 x Front audio (2x5 pin) | |
| Power consumption | 3.3V@1.53A, 5V@2.95A, 12V@8.38A, 5VSB@3.2A |
| (Intel® Core™ i7 6700K 4.0GHz CPU with 16GB (two 8GB) 2133 MHz DDR4 memory) | |
| Power Supply | ATX/AT Power Supply |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 5% ~ 95%, non-condensing |
| Weight | GW:1200g, NW: 700g |
| Expansion Slots | 1 x Full-size PCIe Mini card slot (support mSATA) |
| 1 x PCIe x16 slot (Gen3) | |
| 6 x PCI slot | |
| I/O Interface | 2 x Internal RS-232 |
| RS-422/485((1 x 4 pin, P=2.0, colay with COM4)) | |
| 1 x LPT((2 x 13 pin, P=2.54)) | |
| 4 x SATA 6Gb/s((support hot plug)) | |
| 1 x KB/MS((1 x 6 pin)) | |
| 1 x I2C((1 x 4 pin)) | |
| 1 x SMBus((1 x 4 pin)) | |
| 1 x LPT((2 x 13 pin, P=2.54)) | |
| 3 x Internal USB 2.0 | |
| 2 x Internal RS-232/422/485((2 x 5 pin, P=2.54, colay with COM5,6)) |
| IMBA-H110-R10 | ATX Motherboard supports 14nm LGA1151 6th Generation Intel® Core i7/i5/i3, Celeron® and Pemtium® processor , DDR4, Dual Independent Displays DVI-I/HDMI/iDP, Dual®Intel GbE LAN, USB 3.0, SATA 6Gb/s, HD Audio and RoHS |
