ICE-DB-T10

Enlarge image

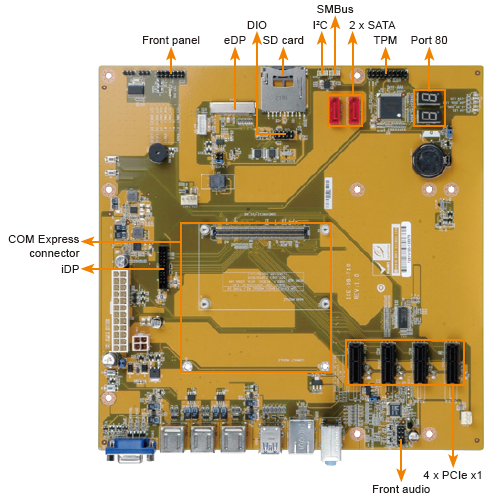

Base Board for COM Express Type 10 Module support PICMG COM.0 R2.1

Datasheet(PDF)    Download (Deriver/BIOS/Manual/QIG)


产品特征 产品特征

● Intel® 22nm Atom™ on-board SoC supported
● Type 10 connector pinout according to COM.0 R2.1
● Supports 2 GB 1066/1333 MHz DDR3L memory
● Optional soldered down 4 GB SSD
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
● Support wide range operating temperature: -40°C to +85°C

产品规格 产品规格

Display Output1 x eDP
1 x VGA
1 x DisplayPort pin-header
StorageEEPROM (support EAPI R1.0)
Operating Temperature-20°C ~ 60°C
Humidity5% ~ 95%, non-condensing

订购信息 订购信息

ICE-DB-T10-R10Base Board for COM Express Type 10 Module support PICMG COM.0 R2.1
