> 产品 > ETX 模块 > ICE-BT-T10| ● Intel® 22nm Atom™ on-board SoC supported |
|
● Type 10 connector pinout according to COM.0
R2.1
|
|

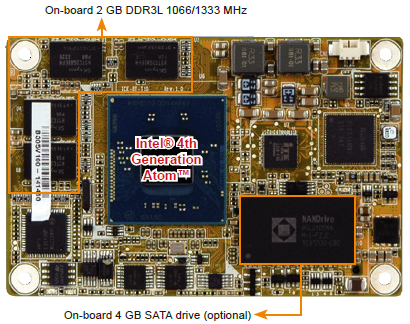

● Supports 2 GB 1066/1333 MHz DDR3L memory
|
|
● Optional soldered down 4 GB SSD
|
|
● IEI One Key Recovery solution allows you to
create rapid OS backup and recovery
|
|
● Support wide range operating temperature:
-40°C to +85°C
|
产品规格
|
Display Output
| 1 x VGA (2560x1600) (via reserved pin) |
| 1 x DDI (DP/HDMI, max. resolution 2560x1600/1920x1080) | |
| 1 x eDP | |
|
CPU
| Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W) |
|
Memory Max.
| 2GB soldered down 1066/1333 MHz DDR3L memory (up to 8GB) |
|
Storage
| 2 x SATA 3Gb/s signal to baseboard |
| Optional soldered down SSD up to 64GB (SATA port 1) | |
|
Ethernet
| Intel® I210-AT GbE controller (Intel® I210-IT GbE controller with W2 sku) |
|
Expansion
| 3 x PCIe x1 signal to baseboard |
|
Power consumption
| 12V@0.43A, Vcore_12V@0.9 A (Intel® Atom™ E3845 CPU, 2GB 1333 MHz DDR3L |
| memory) | |
|
Operating Temperature
| -20°C ~ 60°C |
|
Humidity
| 5% ~ 95%, non-condensing |
|
I/O Interface
| 4 x Internal USB 2.0 |
| 1 x Internal USB 3.0 |
订购信息
| ICE-BT-T10-E38451W2-R10 | COM Express Basic Type 10 module supports Intel® Atom™ Quad-Core Processor E3845(10W), On-board 2GB DDR3L, VGA, DDI, GbE, SATA, USB 3.0 and HD Audio, -40°C ~ 85°C and RoHS |
| ICE-BT-T10-E38251W2-R10 | COM Express Basic Type 10 module supports Intel® Atom™ Dual-Core Processor E3825(6W), On-board 2GB DDR3L, VGA, DDI, GbE, SATA, USB 3.0 and HD Audio, -40°C ~ 85°C and RoHS |
| ICE-BT-T10-E38251-R10 | COM Express Basic Type 10 module supports Intel® Atom™ Dual-Core Processor E3825(6W), On-board 2GB DDR3L, VGA, DDI, GbE, SATA, USB 3.0 and HD Audio, RoHS |
| ICE-BT-T10-E38151-R10 | COM Express Basic Type 10 module supports Intel® Atom™ Songle-Core Processor E3815(5W), On-board 2GB DDR3L, VGA, DDI, GbE, SATA, USB 3.0 and HD Audio, RoHS |
| ICE-BT-T10-E38451-R10 | COM Express Basic Type 10 module supports Intel® Atom™ Quad-Core Processor E3845(10W), On-board 2GB DDR3L, VGA, DDI, GbE, SATA, USB 3.0 and HD Audio, RoHS |
