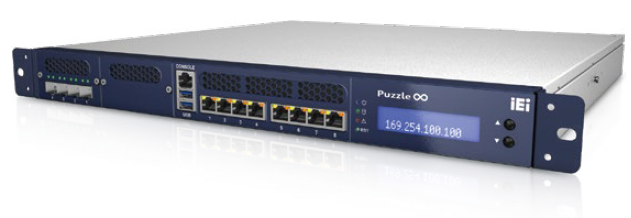

> 产品 > PUZZLE网通设备 > PUZZLE-IN001| ● Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor |
|
● Support 8 x GbE RJ45 via Intel® I211, and
two IEI Network Module
|
|
● Support open source software, such
as pfSense® and OPNsense®.
|
|
● 2 x 288-pin Long DIMM, DDR4 2100MHz ECC
& non ECC, up to 32GB
|
|
● 1 x RJ45 Console, 2 x USB 3.0, LCM
|
|
● 2 x 2.5” SATA drive bay, 1 x M.2 B-Key
(SATA, USB 3.0), 1 x PCIe mini
|
|
● Support PCIe x4 and PCIe x8 slot
|
|
● Redundant PSUs
|
产品规格
|
Safety & EMC
|
CE / FCC |
|
Operating Temperature
|
0 ~ 40°C (32 ~ 104°F) |
|
Storage Temperature
|
-10°C ~ 50°C |
|
Humidity
|
5% ~ 90% non-condensing |
|
Ethernet
|
8 x LAN (GbE RJ45) |
|
I/O Interface
|
1 x External RS-232 |
| 2 x External USB 3.0 | |
| 4 x Internal USB2.0 (Pin header) | |
|
Expansion
|
1 x PCIe x 8 |
| 1 x PCIe x 4 | |
| 1 x PCIe mini Card Slot (PCIe & SATA, USB2.0) | |
|
TPM
|
1 x TPM 2.0 Pin header |
|
Rack Height
|
1U |
|
Dimensions (LxWxH) (mm)
|
430 x 426 x 44.2 |
|
Net Weight
|
7 kg |
|
Input
|
100 V ~ 240 V |
|
Power Supply
|
Redundant Power 300W |
|
Storage
|
2 x 2.5” SSD/HDD Bay |
| 1 x M.2(NGFF) (M.2 B key 2260/2280 (SATA & USB 3.0)) | |
|
CPU
|
Intel® Gen8 Xeon® E-2136 processor |
| Intel® Gen8 Core™ i3-8100T processor | |
|
Chipset
|
Intel® C246 |
|
Memory
|
2 x DDR4 2400MHz ECC/Non-ECC UDIMM |
|
Memory Max.
|
up to 32 GB |
|
Cooling method / System Fan
|
4 x Cooling Fans with Smart Fan |
|
OS Support
|
Linux Ubuntu 16.04.04 |
| PUZZLE-IN001-i3T/16G/R-R10 | 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, 16GB DDR4, two 256GB SSD, and eight 1GbE, two PulM & two PCIe expansion, Redundant Power, RoHS |
| PUZZLE-IN001-i3T/R-R10 | 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, two DDR4 slots, and eight 1GbE , two PulM, two PCIe expansion, Redundant Power, RoHS |
| PUZZLE-IN001-XE/16G/R-R10 | 1U Rackmount Network Appliance with Intel® Gen8 Xeon® E-2136 processor, 16GB DDR4, two 256GB SSD, and eight 1GbE , two PulM, two PCIe expansion, Redundant Power, RoHS |
| PUZZLE-IN001-XE/R-R10 | 1U Rackmount Network Appliance with Intel® Gen8 Xeon® E-2136 processor, two DDR4 slots, and eight 1GbE , two PulM, two PCIe expansion, Redundant Power, RoHS |
