> 产品 > PUZZLE网通设备 > PUZZLE-A002| • AMD R-Series RX-421ND quad-core 2.1 GHz processor |
|
• 2 x DDR4 2400MHz Non-ECC UDIMM, up to 32 GB
|
|
• Support 6 x GbE RJ45 via BROADCOM BCM 5720
|
|
• Support open source software, such as pfSense® and OPNsense®.
|
|
• 1 x RJ45 Console, 2 x USB 3.1 Gen 1
(5Gb/s), 2 x USB 2.0, LCM
|
|
• 1 x PCIe x8, 2 x 2.5” SATA drive bay, 1 x
PCIe mini, 1 x SD slot
|
|
• Support two PCIe x4
|
|
|
产品规格
|
Safety & EMC
| CE / FCC |
|
Operating Temperature
| 0 ~ 40°C (32 ~ 104°F) |
|
Storage Temperature
| -10°C ~ 50°C |
|
Humidity
| 5% ~ 90% 无冷凝 |
|
Ethernet
| 6 x LAN (GbE RJ45) |
|
I/O Interface
| 外部 RS-422/485 |
| 2 x 外部 USB 3.0 | |
| 1 x 内部 USB3.0 (USB3.0 TypeA) | |
| 2 x 内部 USB2.0 | |
|
Expansion
| 2 x PCIe x 4 |
| 1 x PCIe mini 卡插槽 (PCIe, USB 2.0, Micro SIM 插槽) | |
| 1 x M.2(NGFF) (A key (PCIe & USB 2.0)) | |
|
Rack Height
| 1U |
|
Dimensions (LxWxH) (mm)
| 430 x 320 x 44.2 |
|
Net Weight
| 5kg |
|
Input
| 100 V ~ 240 V |
|
Storage
| 2 x 2.5” SSD/HDD 托架 |
| 1 x M.2(NGFF) (内部 (PCIe 和 USB 2.0)) | |
| 1 x eMMC (8GbE) | |
|
CPU
| AMD R系列 RX-421ND 处理器, 4C, 最高 3.4 GHz |
|
Chipset
| 集成在 CPU 中 |
|
Memory
| 2 x DDR4 2400MHz 非ECC UDIMM |
|
Memory Max.
| 最高 32GB |
|
Cooling method / System Fan
| 4 个带智能风扇的散热风扇 |

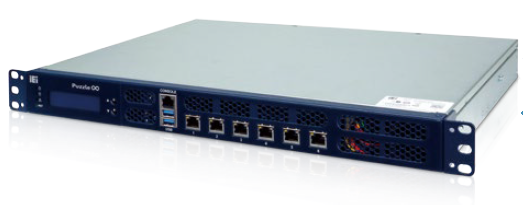

| PUZZLE-A002-MF1-R10 | 1U Rackmount Network Appliance with AMD® RX-421ND procrssor, two DDR4 slots, and six 1GbE , two PCIe x4 expansion, RoHS |
| PUZZLE-A002-MF1/8G-R10 | 1U Rackmount Network Appliance with AMD® RX-421ND procrssor, 8GB DDR4, one 256GB SSD, six 1GbE , two PCIe x4 expansion, RoHS |
