• AMD EPYC™ Embedded 3000 series processor High-Performance CPU System on Chip |
• Support 8 x GbE RJ-45 via BCM 5720, 4 x 10
GbE SFP+ and IEI Networking Module
|
• Support open source software, such as pfSense® and OPNsense®.
|
• 2 x 288-pin DIMM, 2 x DDR4 2666 MHz, UDIMM
Up to 64GB / RDIMM Up to 128GB
|
• 1 x RJ-45 Console, 2 x USB 3.1 Gen 1
(5Gb/s), LCM
|
• 2 x 2.5” SATA drive bay, 1 x M.2 B-Key
(SATA, USB 3.1 Gen 1(5Gb/s)), 1 x PCIe mini card (PCIe, USB 2.0)
|
• Support two PCIe x4 slots
|
• Redundant PSUs
|
产品规格
Safety & EMC
| CE / FCC |
Operating Temperature
| 0 ~ 40°C (32 ~ 104°F) |
Storage Temperature
| -10°C ~ 50°C |
Humidity
| 5% ~ 90% non-condensing |
Ethernet
| 4 x SFP+ (10 GbE SPF+ ports) |
6 x LAN (GbE RJ45 LAN ports) | |
I/O Interface
| 1 x External RS-232 (Console) |
2 x External USB 3.0 (USB 3.1 Gen 1) | |
1 x Internal USB3.0 (USB 3.1 Gen 1) | |
2 x Internal USB2.0 (pin header) | |
Expansion
| 2 x PCIe x 4 |
1 x PCIe mini Card Slot (PCIe, USB 2.0) | |
1 x M.2(NGFF) (M.2 B Key (3042/2260) (2 x PCIe or 1 x USB 3.1 Gen 1 or 1 x SATA Gen3)) | |
Rack Height
| 1U |
Dimensions (LxWxH) (mm)
| 430 x 320 x 44.2 |
Net Weight
| 7 kg |
Input
| 100 V ~ 240 V |
Storage
| 2 x 2.5” SSD/HDD Bay |
1 x M.2(NGFF) (Internal M.2 B key (SATA & USB 3.1 Gen 1)) | |
CPU
| AMD EPYC™ Embedded 3201 processor, 8C/8T, up to 3.10 GHz |
AMD EPYC™ Embedded 3151 processor, 4C/8T, up to 2.90 GHz | |
Chipset
| Integrated in CPU |
Memory
| 4 x DDR4 2666 MHz ECC or non-ECC UDIMM |
Support RDIMM | |
Memory Max.
| UDIMM Up to 64GB |
RDIMM Up to 128GB | |
Cooling method / System Fan
| 4 x Cooling Fans with Smart Fan |
OS Support
| Linux Ubuntu 18.04.04 |

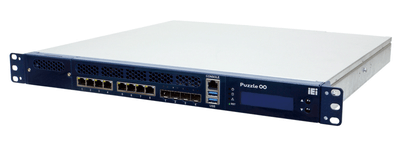

PUZZLE-A001-SO2/16G/R-R10 | 1U Rackmount Network Appliance with AMD EPYC™ Embedded 3201 processor, 16GB DDR4, two 256GB SSD, four 10 GbE SFP+, eight 1GbE, one PulM, two PCIe expansion, Redundant Power, RoHS |
PUZZLE-A001-SO3/16G/R-R10 | 1U Rackmount Network Appliance with AMD EPYC™ Embedded 3151 processor, 16GB DDR4, two 256GB SSD, four 10 GbE SFP+, eight 1GbE, one PulM, two PCIe expansion, Redundant Power, RoHS |
