SRM-KIT121G

Enlarge image

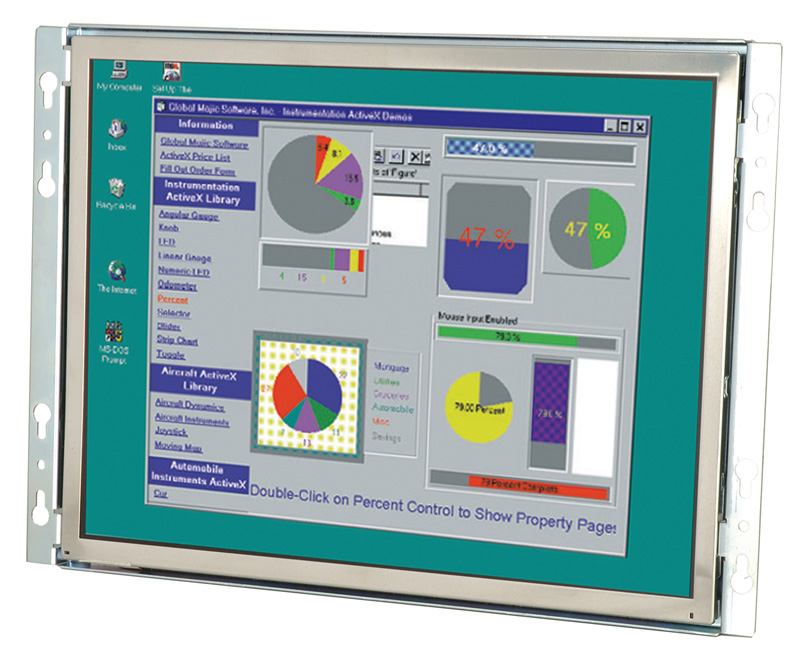

12.1" Sunlight Readable Open Frame LCD Monitor

Datasheet(PDF)    Download (Deriver/BIOS/Manual/QIG)

产品特征 产品特征
  1. 1000 nits super high brightness
2. Superior Fanless Design
3. 12.1" anti-reflection technology reduces light reflection and high
transmission rate to prevent light loss or distortion
4. Adjustable auto-dimming function
5. Wide Operating Temperature:-10ºC~+60ºC
6. OSD lock secures your settings
7. IEI patent software OSD support

产品规格 产品规格

LCD Size 12.1"
Input Interface Analog VGA , DVI-D
Max Resolution 800 x 600 (1024 x 768)
Brightness (cd/㎡) 1000
Contrast Ratio 700:1
Display Color 262k
Pixel Pitch (mm) 0.3075
Front Frame Aluminum
Chassis Heavy-duty Steel
View Angle (H/V) 130/120 (120/120)
Backlight MTBF(Hrs) 50000hrs
Input Voltage 12V DC/+9~36V DC (Option)
OSD function Yes
Smart OSD Yes
Mounting Rack
Dimension(W x H x D mm) 316 x 224.4 x 47.9
Operating Temperature -10˚C ~ +60˚C
Storage Temperature -20˚C ~ +70˚C
Front Panel Protection N/A
Net Weight 3.3kgs

订购信息 订购信息

产品名称 描述
SRM-KIT121G-R11 12.1" 1000 cd/m² Sun Rdadable SVGA TFT LCD kit, VGA and DVI-D input, RoHS
SRM-KIT121XA-R10 12.1" 1000 cd/m² Sun Rdadable XGA TFT LCD kit,VGA and DVI-D input, RoHS
SRM-KIT121GM-R10 12.1" 1000 cd/m² Sun Readable SVGA TFT LCD kit, VGA and DVI-D input, w/9-36V DC input, RoHS
SRM-KIT121XMA-R10 12.1" 1000 cd/m² Sun Readable XGA TFT LCD kit, VGA and DVI-D input, w/9-36V DC input, RoHS

订购信息 包装清单

1 * AC Power Cable 1 * VGA Cable
1 * Power Cable (for M Models) 1 * 45W AC Power Adapter
1 * Screw set 1 * User Manual-CD ROM
