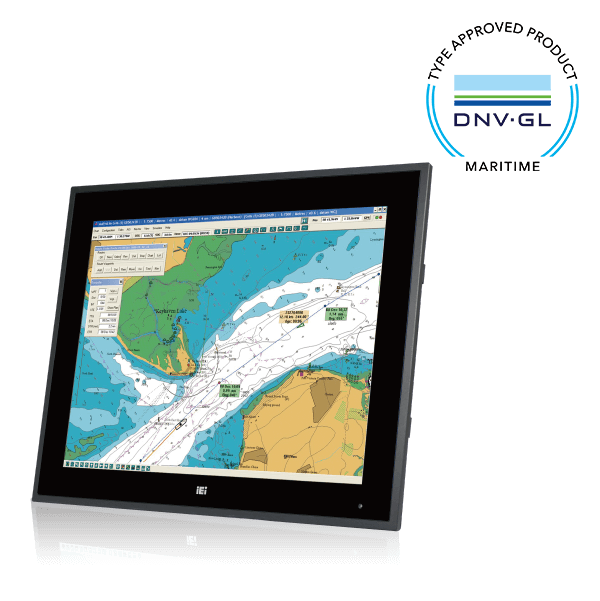

● 19” Fanless Panel PC with 4th Generation Intel®Core™ i5 Dual-core Processor |
● -15°C ~ +55°C Wide Temperature and IP66
Protection with Flat-bezel Projected Capacitive Touchscreen
|
● Excellent Visual Performance
|
- Three independent displays
|
- Full OSD function configuration
|
- 0% ~ 100% full range dimming
|
- 178°/178° wide viewing angles
|
- Optical bonding improves visibility under
bright light (optional)
|
● Isolation Protection
|
- RS-232/422/485 isolated serial ports
|
- Isolated 18V ~ 36V DC input
|
- 2 x Isolated CAN-bus 2.0B
|
● iRIS Remote Management Module
|
产品规格
LCD Size
|
19" |
Brightness(cd/m2)
|
300 |
Max Resolution
|
1280(W) x 1024(H) |
Contrast Ratio
|
83.33402778 |
Backlight MTBF(hrs)
|
50000 |
CPU
|
Intel® 22nm 4th generation Mobile Core™ i5-4400E 2.7GHz processor |
Chipset
|
Intel® QM87 |
HDD
|
1 x 2.5" SATA HDD bay |
SSD
|
CF Type II |
RAM
|
4GB 1600MHz DDR3 SDRAM (2GB*2) |
Two 204-pin 1600/1333 MHz dual-channel DDR3 SDRAM support up to 16GB | |
I/O Ports and Switches
|
DVI-D Signal Input: 2 x DVI (24-pin, female) |
VGA Signal Output: 1 x D-sub (15-pin, female) - Clone of VGA IN* | |
Composite Video Input: 1 x BNC connector (female) | |
Operating Temperature
|
-15°C~55°C |
Humidity
|
10% to 95% (non-condensing) |
Storage Temperature
|
-20°C~60°C |
Dimensions (LxWxH) (mm)
|
592 mm x 374 mm x 113 mm |
Cutout Dimensions
|
576 mm x 358 mm |
Weight
|
13.03Kg |
LCD Color
|
16.7M |
Pixel Pitch (mm)
|
0.294mm x 0.294mm |
Viewing Angle (H-V)
|
178° / 178° |
Touch Screen
|
EXC7920 (10-point) |
Touch Controller
|
6H |
I/O Interface
|
2 x Antenna SMA ((reserved)) |
2 x CAN-bus (terminal block) | |
1 x Power In (Isolated 18-36V DC terminal block) | |
1 x DVI-D | |
1 x HDMI | |
2 x LAN (RJ-45 for Gbe) | |
1 x Line in | |
1 x Line out | |
1 x Mic | |
1 x PS/2 | |
1 x Power Switch | |
1 x RS-232 ((non-isolated)) | |
4 x RS-422/485 ((2.5 kv isolation protection)) | |
2 x USB2.0 | |
2 x USB3.0 | |
1 x VGA |
S19A-QM87i-i5/PC/4G-R10 | 19" 300cd/m² SXGA marine panel PC with Intel® Mobile Core™ i5-4400E 2.7GHz CPU, 2*2GB DDR3 RAM, projected capacitive touch screen, isolated 18-36V DC, iRIS-2400 supported, R10 |
