● Support IEI iRIS-2400 remote intelligent solution |
● Intel® Celeron® J1900 quad-core SoC
|
● Robust IP65 aluminum front bezel
|
● Aesthetic ultra-thin bezel for seamless
panel mount installation
|
● Projected capacitive multi-touch and
resistive single touch options
|
● Dual full-size PCIe Mini card expansion
|
● 9V~36V DC wide range DC input
|
产品规格
LCD Size
|
17""(5:4) |
Brightness(cd/m2)
|
350 |
Max Resolution
|
1280 (W) x 1024 (H) |
Contrast Ratio
|
800:01:00 |
Backlight MTBF(hrs)
|
50000 |
I/O Ports and Switches
|
2 x RJ-45 LAN Port |
2 x USB 3.0 | |
2 x USB 2.0 | |
1 x HDMI output | |
2 x RS-232 | |
1 x RS-232/RS-422/485 | |
1 x VGA | |
1 x 9 V~36 V DC jack (4-pin) | |
1 x 9 V~36 V DC terminal block | |
1 x Line-out (PPC-F15B and PPC-17B only) | |
1 x Power switch | |
Power adapter
|
9V~36V DC |
Operating Temperature
|
-10°C~50°C (14°F~122°F) |
Humidity
|
10% to 95% (non-condensing) |
Storage Temperature
|
-20°C~60°C (-4°F~140°F) |
IP Level
|
IP 65 compliant front panel |
Dimensions (LxWxH) (mm)
|
341.4 x 408.4 x 51.8 |
Cutout Dimensions
|
323 x 390 |
Weight
|
5 kg |
LCD Color
|
16.7M |
Pixel Pitch (mm)
|
0.26 x 0.26 |
Viewing Angle (H-V)
|
170° / 160° |
Touch Screen
|
2-point projected capacitive type touchscreen 6H |
Touch Controller
|
5-wire resistive single-touch type flat touchscreen 3H |

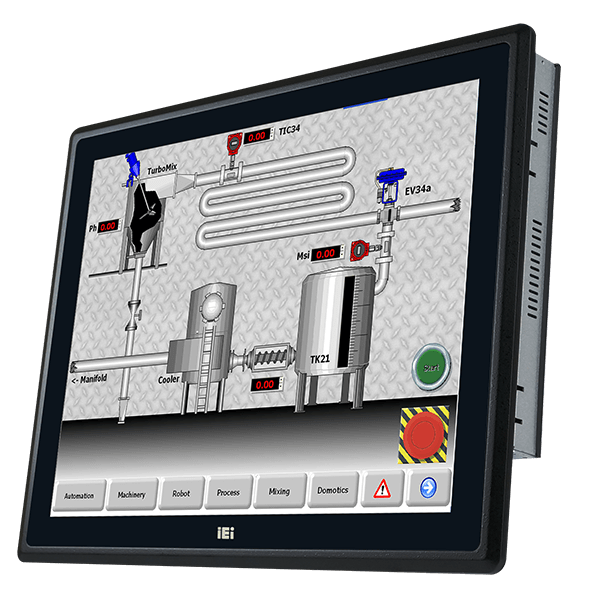

PPC-F17B-BTi-J1/2G/PC-R12 | 17" 350 cd/m2 SXGA Panel PC with IntelR CeleronR Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, projected capacitive touch window with AG coating, R12 |
PPC-F17B-BTi-J1/2G/R-R12 | 17" 350 cd/m2 SXGA Panel PC with IntelR CeleronR Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, resistive touch window with AG coating, R12 |
