The Best Integration with Medical Cart The built-in battery provides the UPS (Uninterruptible Power Supply) function, ensuring the POC-3174B reliably used for medical cart application. The built-in battery allows standby power for data backup and management under sudden power shut-down situation, increasing redundancy for real-time medical record processing. The unique AUPS software facilitates real-time battery monitoring requirement. The network remote management software enables power control for each terminal POC-3174B from a central station, reducing the maintenance cost for the end user. | |
![POC-3/A series](/UploadPic2/2009-7/2009727171941222.jpg) |
![](/UploadPic2/2009-7/2009727171942754.jpg) |
![](http://www.pacsmate.com/images/spacer.gif) |
|
![](/UploadPic2/2009-7/2009727171942754.jpg) |
产品特征 | |
![](/UploadPic2/2009-7/2009727171942754.jpg) |
![](/UploadPic2/2009-7/2009727171942754.jpg) |
![](/UploadPic2/2009-7/2009727171942754.jpg) |
• |

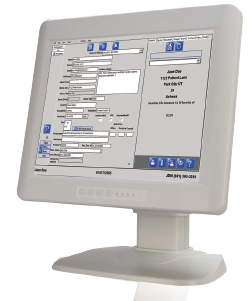

17" all-in-one medical panel PC |
• |
High performance Intel Core 2 Duo CPU support |
• |
Bult-in battery for UPS function |
• |
Smart AUPS battery monitoring utility |
• |
NetWork remote mangagement advantage |
• |
User-friendly touch screen | | |
|
|
|
|
| | |
![](/UploadPic2/2009-7/2009727171942754.jpg) |
![](/UploadPic2/2009-7/2009727171942754.jpg) |
|
|
Powerful Management by UPS Function |
The built-in Li-Ion battery provides the UPS function, avoiding unexpected power disruption which causes data loss or fatalities. The smart AUPS software allows easy remote management via LAN connection and he battery monitoring functions, including "current power source", "battery status", "charging status" and "battery life monitoring". |
Easy Remote Management |
Network Remote Management Everywhere |
![](/UploadPic2/2009-7/200972717201699.jpg) |
Network Remote Management Software |
Board Configuration |
Sent-E-Mail |
Battery Status Monitoring |
Setting IP address and enable DHCP |
Send battery status by e-mail |
Display battery information & Remotely control system on/off via web interface |
![](/UploadPic2/2009-7/2009727172136151.jpg) |
![](/UploadPic2/2009-7/2009727172140793.jpg) |
![](/UploadPic2/2009-7/2009727172148254.jpg) | |
Easy Management |
IEI provides software utility and application program for users to easily get the AUPS sub-system real time status and to remotely control system power on/off from anywhere and anytime with internet connection. Remote management software could setup either static IP address or though DHCP server to get an IP address for the management tool. |
![](/UploadPic2/2009-7/200972717222692.jpg) |
Real-time UPS Status Monitoring |
Battery Monitoring Utility |
-Monitoring the most critical battery functions on the local machine |
![](http://www.pacsmate.com/images/Products/batteryMonitor.jpg) |
![](/UploadPic2/2009-7/2009727172450331.jpg) |
| | |
|
|
Powerful Expansion Advantage |
The POC-3174B has a PCI slot and an Express Card.54 slot, allowing powerful system expansion capabilities. The expansion slots enable easy connection with video capture cards, communication modules and card reading modules. |
Value-Added Network Connection Advantage |
The POC-3174B has two Gigabit Ethernet LAN connectors and wireless 802.11a/b/g/n networkconnections,enabling real-time and reliable medical record transmission. |
|
| |
|
|
Super Connectivity |
The POC-3174B supports numerous I/O interfaces, enabling connections with medical devices, such as RFID readers, barcode readers and printers. The POC-3174B is a perfect medical information terminal. | |
|
|
IP 64 Front Panel for Best Reliability |
The POC-3174B is designed with IP64 dystproof and waterproof front panel, allowing easy cleaning with disinfectant with disinfectant without harming the panel itself. | |
|
|
Reliable Touch Screen Design |
The POC-3174B is equipped with reliable 5-wire resistive type touch screen. The touch screen makes medical order entry screen. The touch screen makes medical order entry much easier when used as an information terminal. |
![Reliable Touch Screen Design](/UploadPic2/2009-7/2009727172749590.jpg) |
Optical Drive for Image burning Advantage |
The POC-3174B has a optical drive at the side of.the panel, allowing real-time image buring purpose. The built-in optical drive makes POC-3174B a perfect image processing terminal. |
| | |
|
|
|
![](/UploadPic2/2009-7/2009727171942754.jpg) |
产品规格 | |
![](/UploadPic2/2009-7/2009727171942754.jpg) |
![](/UploadPic2/2009-7/2009727171942754.jpg) |
![](/UploadPic2/2009-7/2009727171942754.jpg) |
Model |
POC-3174B-A320 |
POC-3174B-A330 |
Model |
POC-3174B-A320 |
POC-3174B-A330 |
CPU |
Intel® Core 2 Duo Socket P (T7500-2.2G/Celeron® M 550-2.0G) |
2.0 GHz Intel® Pentium® M 760 |
Touch screen |
Resistive 5-wire (RS-232 interface) |
Chipset |
Intel® GME965 + ICH8M |
Intel® 915GM + ICH6M |
Wireless (Mini PCIe interface) |
802.11 a/b/g/n Intel® 4965 |
RAM |
2 x 2.0 GB (max.) DDR2 SO-DIMM (system max. 4GB) |
2 x 1.0 GB (max.) DDR2 SO-DIMM (system max. 2GB) |
I/O Ports |
2 x USB 2.0 3 x RS-232 2 x Gigabit Ethernet (GbE) 1 x VGA 1 x DVI 2 x Audio 2 x PS2 1 x AC Power inlet connector |
LCD Size |
17" |
17" |
Expansion Slot |
1 x PCI 1 x Express Card/54 Slot |
Resolution |
1280 x 1024 |
OSD Function |
Five bottom panel buttons (LCD On/off, Light +,-, Audio +,-) |
Speakers |
2 x 3W AMP |
AUPS Function |
Yes (Battery 3800mAH) |
Drive Bay |
1 x 2.5" SATA HDD 1 x IDE CF card 1 x Slim Type DVD Combo Drive |
LED Function |
Four LED on front panel for System/ Adapter/ Battery/ UPS function |
Power In |
DC 12V input |
Safety & EMI |
UL60601-1, EN60601-1, CCC, CE(EN60601-1-2), FCC Parts 18 |
Power Adpater |
Medical Grade, AC 100V~240V input to DC 12V output |
Operation Temperature |
0C ~ 40C |
IP level |
IP64 on front panel |
Net Weight (kg) |
8.0 |
8.0 |
Dimensions (mm) (W x H x D) |
432 x 374 x122 |
|
| | |
|
|
|
|
|
|
![](/UploadPic2/2009-7/2009727171942754.jpg) |
Ordering information | |
|
|
产品名称 |
描述 |
POC-3174B-A320-T7500/2GB/80GB |
17" medical panel PC, with 2.2GHz Intel® Core 2 Duo(T7500) CPU, 2GB DDR2 SO-DIMM RAM, 80GB SATA HDD, DVD combo, wireless 802.11 a/b/g/n , touch Screen, battery 3800mAH and AC to DC power adapter, RoHS |
POC-3174B-A320-CM550/2GB/80GB |
17" medical panel PC, with 2.0 GHz Celeron® M (Celeron® M 550) CPU, 2GB DDR2 SO-DIMM RAM, 80GB SATA HDD, DVD combo, wireless 802.11 a/b/g/n , touch Screen, battery 3800mAH and AC to DC power adapter, RoHS |
POC-3174B-A330-PM760/1GB/80GB |
17" medical panel PC, with 2.0 GHz Pentium® M (Pentium® M 760) CPU, 1GB DDR2 SO-DIMM RAM, 80GB SATA HDD, DVD combo , wireless 802.11 a/b/g/n , touch Screen, battery 3800mAH and AC to DC power adapter , RoHS | |
|
|
|
|
|
|
![](/UploadPic2/2009-7/2009727171942754.jpg) |
Options | |
|
|
ARM |
ARM-31-RS |
STAND |
STAND-300SW-RS | |
