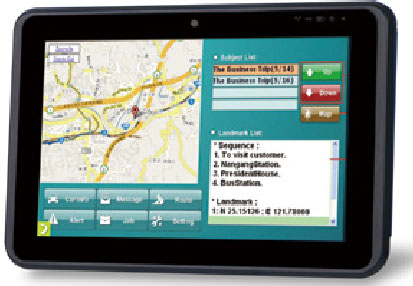

> 产品 > 垂直市场平板电脑 > IKARPC-W10A| ● 10.1"" TFT LCD with projected capacitive touchscreen |
|
● Intel® Atom™ E3826 1.46 GHz CPU
|
|
● Windows® Embedded Standard 7
|
|
● Option HSUPA/GPRS/GSM, Wi-Fi and Bluetooth
|
|
● Built-in GPS function
|
|
● Built-in OBD-II/CAN 2.0
|
产品规格
|
SBC Form Factor
|
CPU: Intel® Atom™ processor E3826 (dual-core, 1.46 GHz, 7W) |
| Chipset: SoC | |
| System Memory:On-board 2 GB SDRAM | |
|
Cooling method / System Fan
|
Fanless |
|
Drive Bays
|
1 x 2.5"" SATA 3Gb/s HDD/SSD drive bay |
|
Indicators
|
Power/Wi-Fi/HDD/3.5G |
|
I/O Ports
|
1 x USB3.0 |
| 1 x USB2.0 | |
| 1 x GbE LAN | |
| 2 x DB-9 RS-232 | |
| 8-bit digital I/O (4-bit input, 4-bit output) | |
| 1 x DB-9 CAN-bus/OBD-II | |
| 1 x HDMI | |
| 1 x Line out, 1 x Mic in | |
| 2 x SIM slot | |
|
Operating Temperature
|
-20°C ~ 60°C with air flow |
|
Humidity
|
5% ~ 95%, non-condensing |
|
Dimensions
|
277 x 186 x 27 |
|
Weight
|
1.3 kg/2.8 kg |
|
Color
|
Blue C + Black C |
|
Expansion Slots
|
1 x Full-size PCIe Mini (reserved for 3G module), |
| 1 x Full-size PCIe Mini (reserved for Wi-Fi module) | |
| IKARPC-W10A-BT-E3/2G-R10 | 10.1" 350 cd/m2 1280 x 800, In Vehicle Panel PC with Intel® Atom E3826 1.46GHz, 7W TDP, 2GB DDR3L on borad memory, OBDII, GPS on borad, 2M Camera, ROHS |
