> 产品 > 垂直市场平板电脑 > IKARPC-07A-BT| ● 7” sunlight readable TFT LCD with projected capacitive touchscreen |
|
● Built-in HSUPA/GPRS/GSM, Wi-Fi and
Bluetooth
|
|
● Built-in GPS receiver
|
|
● Supports On-Board Diagnostics: one CAN 2.0B
or OBD-II
|
产品规格
|
SBC Form Factor
|
CPU: Intel® Atom™ processor E3826 (dual-core, 1.46 GHz, 7W) |
| Chipset: SoC | |
| System Memory:On-board 2 GB SDRAM | |
|
Cooling method / System Fan
|
Fanless |
|
Indicators
|
Power/HDD/Wi-Fi/3G |
|
I/O Ports
|
20-pin Connector: |
| 1 x GbE LAN | |
| 1 x OBD-II/CAN bus | |
| 1 x USB 2.0 | |
| 24-pin Connector: | |
| 1 x Audio line-out (R+L) | |
| 1 x Audio line-in | |
| 1 x RS-232 | |
| 4-bit digital I/O (2-bit input, 2-bit output) | |
| 1 x USB 2.0 | |
| 1 x USB3.0 | |
| 1 x HDMI | |
| 2 x SIM slot | |
|
Operating Temperature
|
-20°C ~ 60°C with air flow |
|
Humidity
|
5% ~ 95%, non-condensing |
|
Dimensions
|
210 x 154 x 28 |
|
Weight
|
0.9 kg/2.1 kg |
|
Color
|
Black C + Silver |
|
Expansion Slots
|
1 x Full-size PCIe Mini (reserved for mSATA module), |
| 1 x Full-size PCIe Mini (reserved for 3G module), | |
| 1 x Half-size PCIe Mini (reserved for Wi-Fi module) |

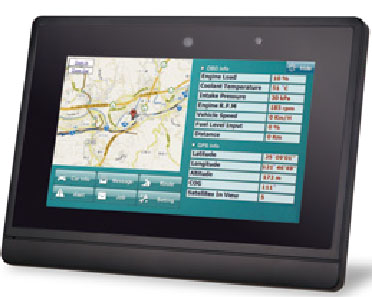

| IKARPC-07A-BT-E3/2G-R10 | 7" 500 cd/m2 1024 x 600 In Vehicle Panel PC with Intel® Atom E3826 1.46GHz, 7W TDP, 2GB DDR3L on board memory, OBDII, GPS on board, 2M Camera, ROHS |
