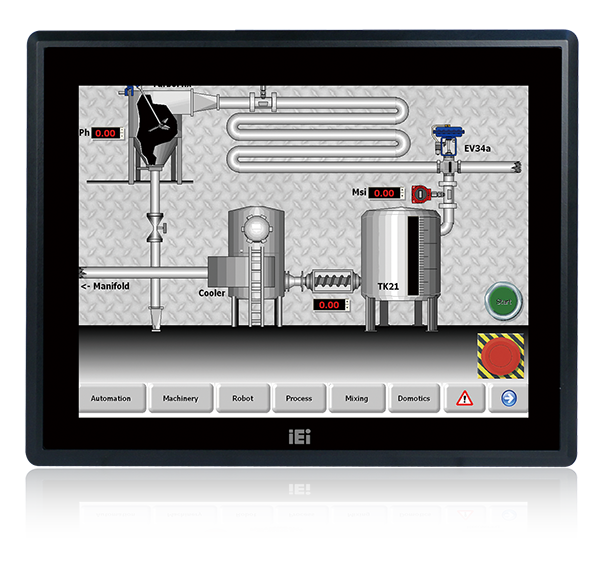

> 产品 > 工业级显示器 > DM-F15A| » Robust IP65 aluminum front bezel |
|
» Aesthetic
ultra-thin bezel for seamless panel mount installation
|
|
» DC input
|
|
» DVI / VGA
flexible video input solution
|
|
» Resistive
single touch
|
|
» Wide
temperature support
|
| LCD Size | 15”(4:3) |
| Brightness(cd/m2) | 450 |
| Max Resolution | 1024 (W) x 768 (H) |
| Contrast Ratio | 33.33402778 |
| Backlight MTBF(hrs) | 70000 |
| Power adapter | 9V~36V DC |
| 工作温度 | -20°C ~ 60°C |
| 相对湿度 | 10% to 95% (non-condensing) |
| 存储温度 | -20°C ~ 70°C |
| Dimensions (LxWxH) (mm) | 303 x 378.5 x 43.2 |
| Weight | 3.5 / 5.5 |
| LCD 色彩 | 16.2M |
| 像素间距 (mm) | 0.29 x 0.29 |
| 可视角度 (H-V) | 160° / 150° |
| 触摸屏 | 2-point projected capacitive touch window/ EETI EXC7200 |
| 触控IC | 5-wire resistive single touch window/ Penmount 6000 |
| IP Level | IP 65 compliant front panel |
| I/O Ports and Switches | 1
x VGA (DB-15) 1 x HDMI™ 1 x DisplayPort1.1 1 x USB 2.0 (touch) 1 x RS-232 (reserved for resistive touch ATO) 1 x Lockable 9V-36V DC jack 1 x 9V-36V terminal block |
| Cutout Dimensions | 285.6 x 361.1 |
| DM-F15A/R-R41 | 15" 450 cd/m² XGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB resistive touch screen, 9 ~36V DC input, Powder paint, R41 |
| DM-F15A/PC-R41 | 15" 450 cd/m² XGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB projected capacitive touch screen, 9 ~36V DC input, Powder paint, R41 |
产品特征
