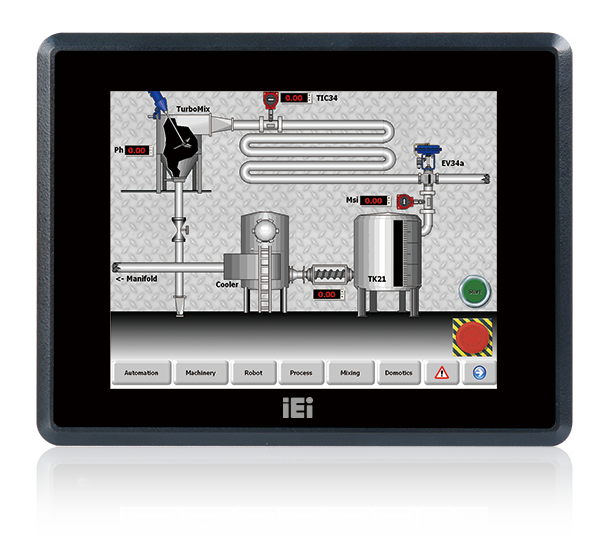

> 产品 > 工业级显示器 > DM-F08A| » Robust IP65 aluminum front bezel |
|
» Aesthetic
ultra-thin bezel for seamless panel mount installation
|
|
» DC input
|
|
» DVI / VGA
flexible video input solution
|
|
» Resistive
single touch
|
|
» Wide
temperature support
|
| LCD Size | 8”(4:3) |
| Brightness(cd/m2) | 500 |
| Max Resolution | 800 (W) x 600 (H) |
| Contrast Ratio | 20.83402778 |
| Backlight MTBF(hrs) | 50000 |
| Power adapter | 12V DC |
| 工作温度 | -20°C ~ 60°C (with air flow) |
| 相对湿度 | 10% to 95% (non-condensing) |
| 存储温度 | -20°C ~ 70°C |
| Dimensions (LxWxH) (mm) | 222.2 x 182.2 x 42.7 |
| Weight | 1.33/4.5 |
| LCD 色彩 | 262K |
| 像素间距 (mm) | 0.0675 x 0.2025 |
| 可视角度 (H-V) | 140°/120° |
| 触摸屏 | 5-wire resistive single touch window |
| 触控IC | Penmount 6000 |
| IP Level | IP 65 compliant front panel |
| I/O Ports and Switches | 1
x VGA (DB-15) 1 x DVI 1 x USB 2.0 (touch) 1 x RS-232 (reserved for resistive touch ATO) 1 x Lockable 12V DC jack |
| Cutout Dimensions | 206 x 154 |
| DM-F08A/R-R21 | 8" 500 cd/m² SVGA LCD monitor, Aluminum front panel, Black color, W/ USB resistive touch screen, 12V DC input,Powder paint, R21 |
产品特征
