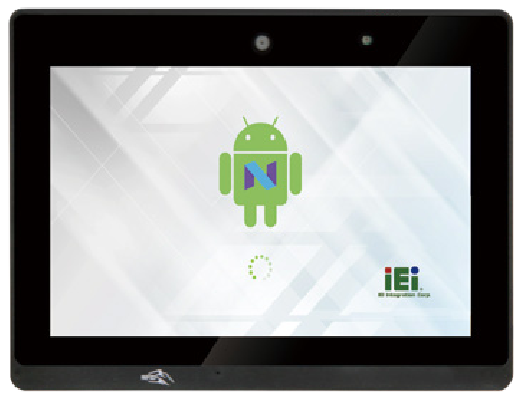

> 产品 > 垂直市场平板电脑 > AFOKAR-08A| ● 8” 阳光可读 TFT LCD 和 投影电容式触摸屏 |
|
● 可选LTE模块
|
|
● 内置 GPS 接收器
|
|
● 内置 OBD-II/J1939
|
|
● 操作系统: Android 7.1
|
产品规格
|
SBC Form Factor
|
CPU: Rockchip RK3399 |
| (双核 Cortex-A72 高达 1.8GHz + 四核 Cortex-A53 高达 1.5GHz) | |
| 芯片组: SoC | |
| 系统内存:板载 2GB LPDDR3-1866 | |
|
Cooling method / System Fan
|
无风扇 |
|
Drive Bays
|
板载 16GB eMMC NAND FLASH |
| 1 x Micro SD 插槽 | |
|
Buttons
|
1 x 电源按钮 |
|
Indicators
|
1 x 电源 |
| 1 x BT | |
| 1 x Wi-Fi | |
| 1 x WWAN | |
|
I/O Ports
|
20-pin 连接器 |
| ** 1 x OBD-II/J1939 | |
| ** 1 x USB 2.0 | |
| 24-pin 连接器 | |
| ** 1 x 音频输出 | |
| ** 1 x RS-232 | |
| ** 1 x RS-485 | |
| ** 4-bit 数字 I/O 带隔离 (2-bit 输入, 2-bit 输出) | |
| 1 x HDMI 输出 | |
| 1 x GPS SMA 连接器 | |
| 1 x WWAN SMA 连接器 | |
| 1 x SIM 卡插槽 | |
| 1 x USB3.0 Type A | |
|
Operating Temperature
|
-10°C ~ 50°C 含气流 |
|
Humidity
|
10% ~ 95%, 无冷凝 |
|
Dimensions
|
210 x 154 x 33.9 |
|
Weight
|
0.77 kg |
|
Color
|
黑色 C + 银色 |
|
Expansion Slots
|
1 x 全尺寸 PCIe Mini (保留用于 WWAN) |
| AFOKAR-08A-RK39-R10-CN | 8" 500 cd/m2, Android 7.1 In Vehicle Panel PC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, GPS, WIFI/BT, OBD II, 5M Camera, RFID Reader, CN reg, ROHS |
| AFOKAR-08A-RK39-R10-EU | 8" 500 cd/m2, Android 7.1 In Vehicle Panel PC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, GPS, WIFI/BT, OBD II, 5M Camera, RFID Reader, EU reg, ROHS |
| AFOKAR-08A-RK39-R10-TW | 8" 500 cd/m2, Android 7.1 In Vehicle Panel PC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, GPS, WIFI/BT, OBD II, 5M Camera, RFID Reader, TW reg, ROHS |
| AFOKAR-08A-RK39-R10-US | 8" 500 cd/m2, Android 7.1 In Vehicle Panel PC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, GPS, WIFI/BT, OBD II, 5M Camera, RFID Reader, US reg, ROHS |
