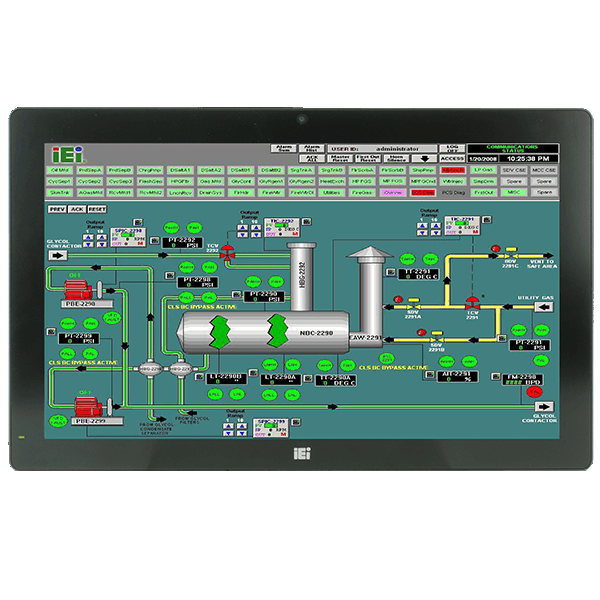

● W21.5” light industrial interactive panel PC |
● 9 V ~ 30 V wide range DC power input
|
● Selectable AT/ATX power mode
|
● Built-in speakers
|
● One mSATA slot
|
● IP64 compliant front panel
|
● IEI One Key Recovery solution alllows you
to create rapid OS backup and recovery (suggested with over 4GB storage
capacity)
|
产品规格
CPU
|
Intel® Core™ i5 and Celeron® ULT Processor |
Storage
|
1 x 2.5” SATA 3Gb/s HDD bay |
1 x M.2 M key PCIe storage (2280 or 22110) | |
1 x mSATA slot | |
Bluetooth
|
v4.0 (M.2 slot) |
Wi-Fi
|
IEEE 802.11a/b/g/n/ac |
Ethernet
|
2 x Intel® I211-AT PCIe GbE controller |
Audio
|
AMP 3W + 3W (internal speaker) |
Audio Codec
|
ALC892 |
RAM
|
Two 260-pin DDR4 SO-DIMMs (system max.32GB) |
I/O Ports and Switches
|
1 x RS-232 by DB-9 (RI/5V/12V) |
1 x RS-232/422/485 by DB-9 (RI/5V/12V) | |
2 x GbE LAN | |
4 x USB 3.0 | |
1 x HDMI output | |
1 x Power switch | |
1 x Reset button | |
1 x AT/ATX switch | |
1 x 9-30V lockable power jack | |
Operating Temperature
|
-20°C~50°C |
Humidity
|
10% to 95% (non-condensing) |
Storage Temperature
|
-20°C~60°C |
IP Level
|
IP 64 compliant front panel |
Color
|
Black C |
Mounting
|
Panel, Wall, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm |
Dimensions (LxWxH) (mm)
|
528 x 336 x 68 |
Construction Front Panel
|
PC + ABS Plastic |
Weight
|
8.27/11.27 |
Size
|
21.5"" |
Resolution
|
1920 x 1080 |
Brightness (cd/m2)
|
250 |
Contrast Ratio
|
1000:01:00 |
LCD Color
|
16.7M |
Pixel Pitch (mm)
|
248.25 (H) × 248.25 (V) |
Viewing Angle (H-V)
|
170°(H) / 160°(V) |
Backlight MTBF
|
30,000 (LED backlight panel) |
Touch Screen
|
Projected capacitive type with USB interface |
Touch Controller
|
EETI EXC3180 |
Camera
|
2-megapixel with low light function |
OSD Function
|
Software OSD |
Microphone
|
digital microphone |
I/O Interface
|
1 x RS-232 (DB-9 (RI/5V/12V)) |
1 x RS-422/485 (DB-9 (RI/5V/12V)) | |
4 x USB 3.0 | |
1 x HDMI | |
2 x LAN (GbE) | |
1 x Reset Button | |
1 x Power Switch | |
1 x AT/ATX switch | |
1 x Power In (DC jack) |
AFL3-W22C-ULT3-C/PC/4G-R13 | Wide 22” 250 cd/m² 1920x1080 Panel PC with withIntel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,with AG,R13 |
AFL3-W22C-ULT3-i5/PC/4G-R13 | Wide 22” 250 cd/m² 1920x1080 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone , with AG, R13 |
